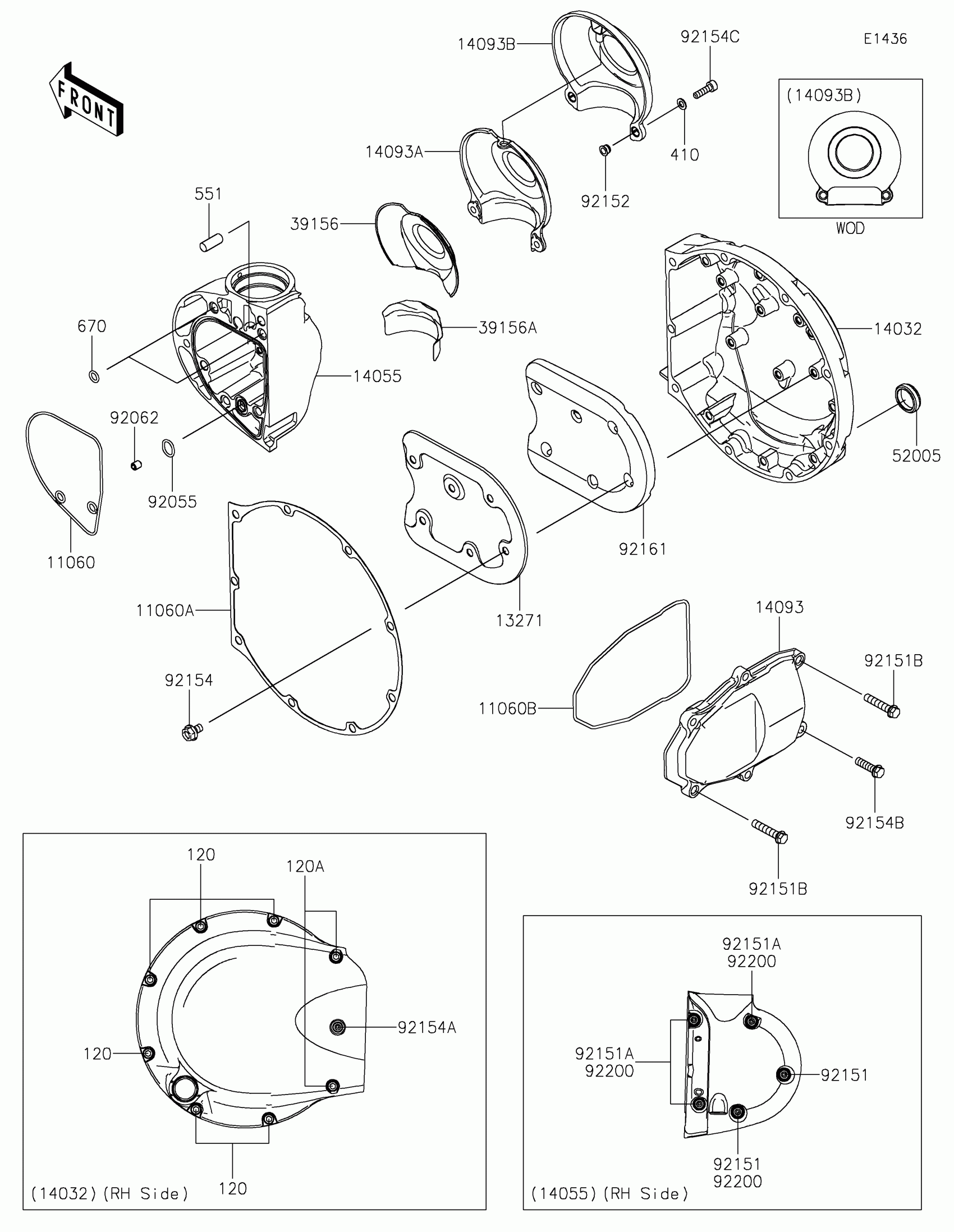

Kawasaki W800 CAFE Right Engine Cover(s) Diagram
#
Description
Price
11060
GASKET,GEAR CASE
11060-1890
$15.87
11060A
GASKET,CLUTCH COVER
11060-1891
$22.95
11060B
GASKET,KICK COVER
11060-1896
Unavailable
13271
PLATE,SOUND ARRESTER
13271-1215
$9.19
14032
COVER-CLUTCH
14032-0647
$216.83
14055
CASE-GEAR
14055-0646
$145.42
14093
COVER,KICK
14093-0700
$101.98
14093A
COVER,BEVEL GEAR,INNER
14093-0787
$13.90
14093B
COVER,BEVEL GEAR,OUTER
14093-0792
$85.90
39156
PAD,BEVEL COVER,UPP
39156-2455
$8.14
39156A
PAD,BEVEL COVER,LWR
39156-2456
$4.80
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
92055
RING-O,12.3X1.9
92055-1594
$2.34
92062
NOZZLE,6X8,BLACK
92062-1079
$8.58
92151
BOLT,SOCKET,6X55
92151-1496
$2.67
92151A
BOLT,SOCKET,6X60
92151-1497
$2.67
92151B
BOLT,6X30
92151-1873
$4.67
92152
COLLAR
92152-2604
$9.37
92154
BOLT,FLANGED,6X10
92154-0492
$5.65
92154A
BOLT,SOCKET,6X70
92154-0493
$3.74
92154B
BOLT,FLANGED,6X22
92154-0794
$1.94
92154C
BOLT,SOCKET,5X18
92154-3981
$2.00
92161
DAMPER
92161-0953
$54.62
92200
WASHER,6.8X11.5X1.0
92200-1461
$2.67
120
BOLT-SOCKET,6X25
120CC0625
$1.94
120A
BOLT-SOCKET,6X50
120CC0650
$2.55
410
WASHER-PLAIN-SMALL
410AA0500
$0.47
551
PIN-DOWEL,8X20
551A0820
$0.98
670
O RING,7MM
670D1507
$1.70
