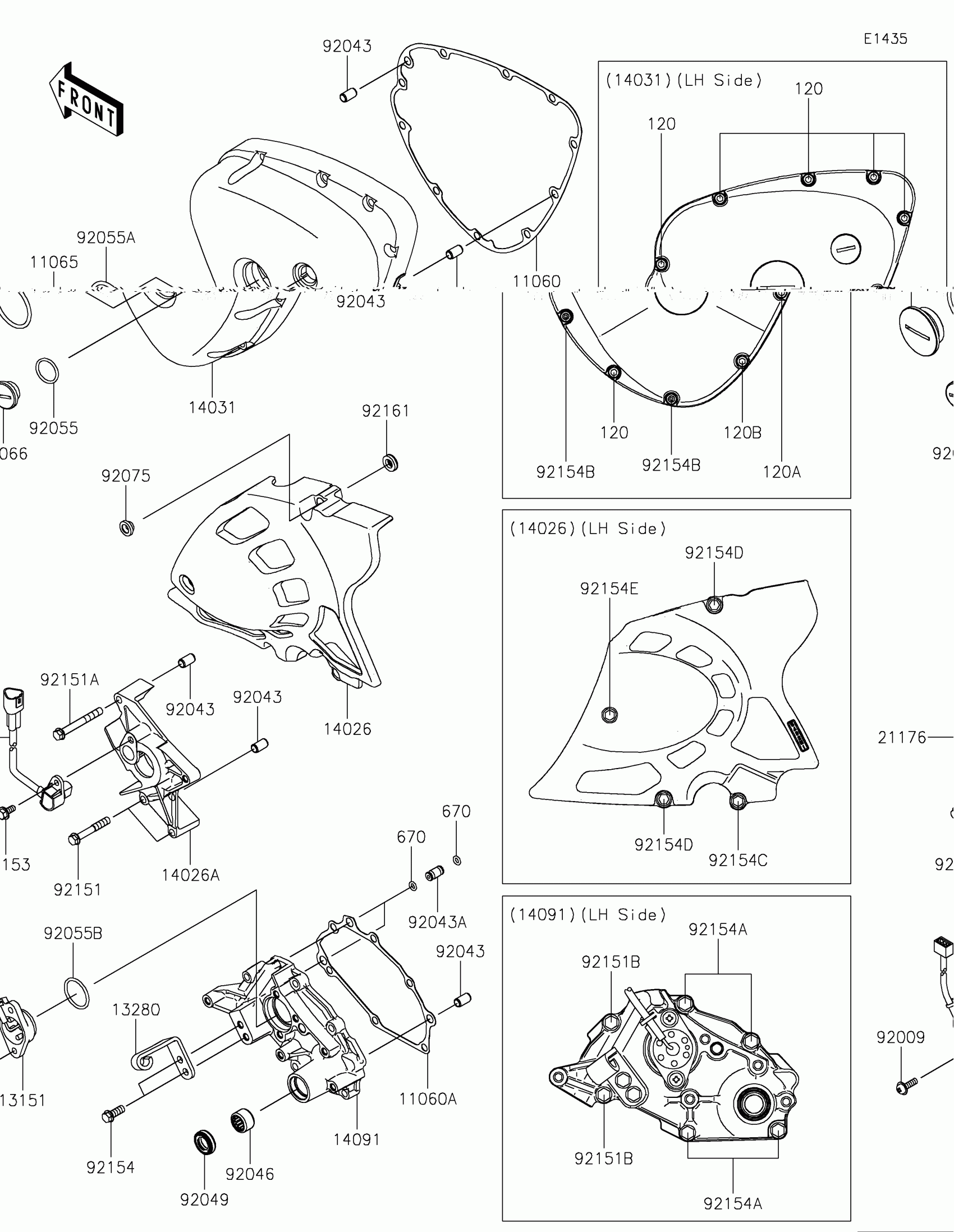

Kawasaki W800 CAFE Left Engine Cover(s) Diagram
#
Description
Price
11060
GASKET,GENERATOR COVER
11060-1892
$22.95
11060A
GASKET,TRANSMISSION COVER
11060-1893
$9.43
11065
CAP,GENERATOR
11065-1269
$36.12
13151
SWITCH-COMP,NEUTRAL
13151-0054
$46.52
13280
HOLDER,CLUTCH CABLE
13280-1109
$8.05
14026
COVER-CHAIN
14026-0143
$228.20
14026A
COVER-CHAIN,INSIDE
14026-1261
$57.95
14031
COVER-GENERATOR
14031-0625
$218.63
14091
COVER,TRANSMISSION
14091-1084
$97.41
21176
SENSOR,SPEED
21176-0154
$131.81
92009
SCREW,5X16
92009-1571
$2.67
92043
PIN,6.2X8X14
92043-1263
$0.43
92043A
PIN
92043-1588
$9.19
92046
BEARING-NEEDLE,HK1312
92046-1148
$18.74
92049
SEAL-OIL,TC13225.5
92049-1519
$13.55
92055
RING-O,20X2
92055-1146
$8.58
92055A
RING-O,39.4X3.1
92055-1618
$3.65
92055B
RING-O,27.7X2.4
92055-1619
$3.69
92066
PLUG,COVER
92066-0719
$15.66
92075
DAMPER
92075-1855
$8.10
92151
BOLT,6X40
92151-1131
$4.87
92151A
BOLT,6X50
92151-1234
$2.46
92151B
BOLT,6X35
92151-1874
$2.80
92153
BOLT,FLANGED,5X12
92153-1582
$1.34
92154
BOLT,FLANGED,6X16
92154-0489
$1.63
92154A
BOLT,FLANGED,6X25
92154-0490
$1.94
92154B
BOLT,SOCKET,6X35
92154-0494
$2.32
92154C
BOLT,FLANGED,6X31
92154-3898
$7.57
92154D
BOLT,FLANGED,6X39
92154-3899
$7.57
92154E
BOLT,FLANGED,6X43.6
92154-3900
$7.77
92161
DAMPER
92161-0411
$7.75
120
BOLT-SOCKET,6X35
120CC0635
$2.32
120A
BOLT-SOCKET,6X40
120CC0640
$2.41
120B
BOLT-SOCKET,6X45
120CC0645
$2.67
670
O RING
670D1505
$4.31
