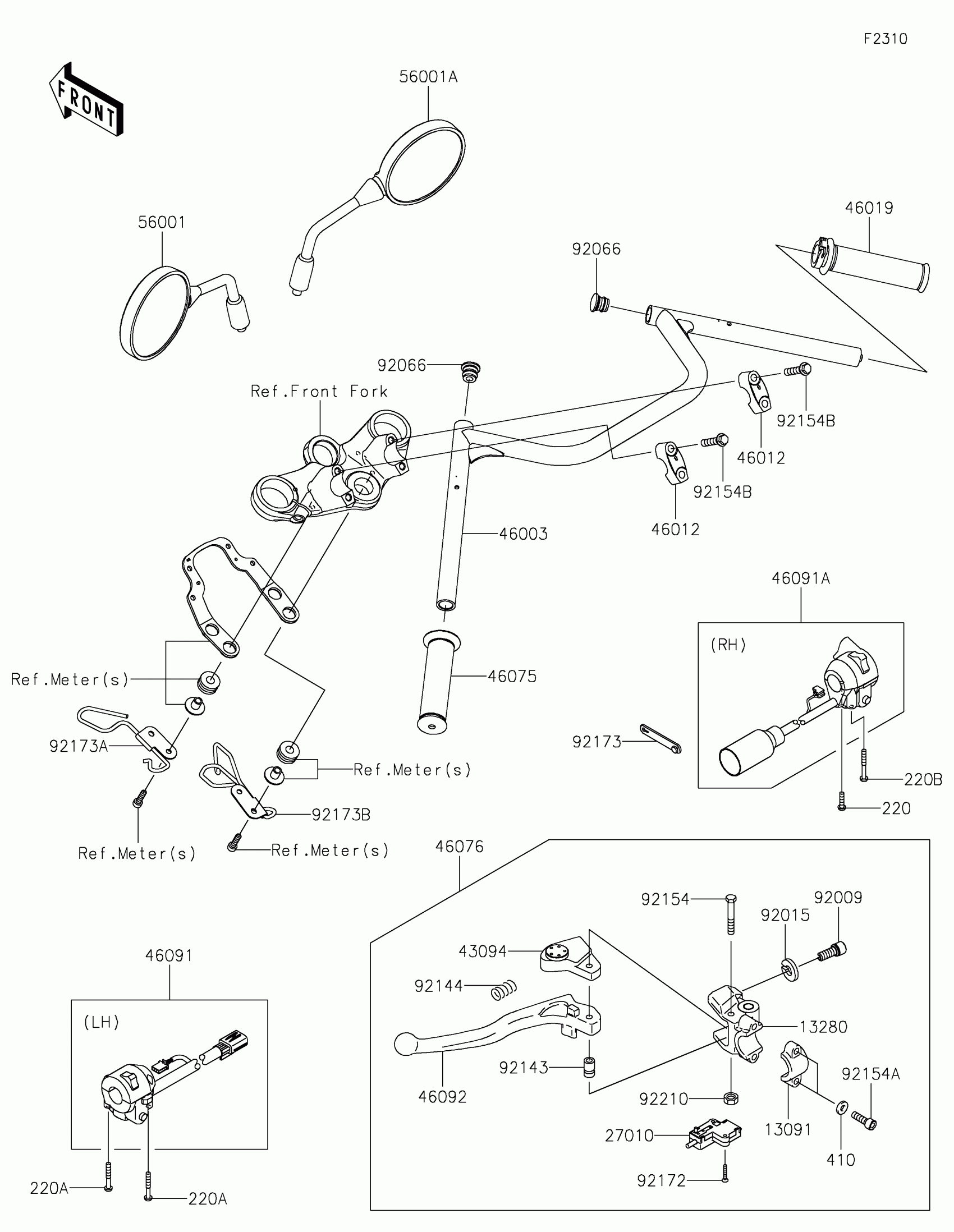

Kawasaki W800 CAFE Handlebar Diagram
#
Description
Price
13091
HOLDER,CLUTCH LEVER
13091-1624
$35.87
13280
HOLDER,CLUTCH LEVER
13280-0248
$51.40
27010
SWITCH,CLUTCH,BLACK
27010-1094
$28.59
43094
ADJUSTER,CLUTCH LEVER
43094-1053
$36.12
46003
HANDLE
46003-0777
$151.27
46012
HOLDER-HANDLE,UPP
46012-1267
$32.01
46019
GRIP-ASSY,THROTTLE
46019-1110
$38.53
46075
GRIP,LH
46075-1175
$30.14
46076
LEVER-ASSY-GRIP,CLUTCH
46076-0159
$104.54
46091
HOUSING-ASSY-CONTROL,LH
46091-0458
$193.60
46091A
HOUSING-ASSY-CONTROL,RH
46091-0498
$202.51
46092
LEVER-GRIP,CLUTCH
46092-1162
$17.78
56001
MIRROR-ASSY,LH
56001-0399
$90.54
56001A
MIRROR-ASSY,RH
56001-0400
$90.54
92009
SCREW,CABLE ADJUST,8MM,BLACK
92009-1134
$15.16
92015
NUT,CABLE ADJUST LOCK,8MM,BLK
92015-1197
$9.91
92066
PLUG
92066-1550
$8.90
92143
COLLAR
92143-1379
$9.51
92144
SPRING
92144-1467
$6.51
92154
BOLT
92154-2318
$7.89
92154A
BOLT,SOCKET,6X20
92154-2644
$3.90
92154B
BOLT,FLANGED,8X35
92154-3964
$2.26
92172
SCREW,3X16
92172-0183
$2.15
92173
CLAMP
92173-1526
$3.94
92173A
CLAMP,HOUSING,LH
92173-2033
$18.15
92173B
CLAMP,HOUSING,RH
92173-2132
$15.11
92210
NUT,LOCK,6MM
92210-0006
$2.46
220
SCREW-PAN-CROS,5X20
220AB0520
$1.97
220A
SCREW-PAN-CROS,5X35
220AB0535
$2.06
220B
SCREW-PAN-CROS,5X40
220AB0540
$2.06
410
WASHER-PLAIN-SMALL,6MM
410AB0600
$0.77
