Description

Price

27010

SWITCH,FUEL LEVEL

27010-0718

$118.22

39156

PAD,FUEL TANK,INNER

39156-2550

$5.52

43058

RING,FUEL LEVEL SWITCH

43058-1004

$8.03

51049

CAP-TANK,FUEL

51049-0003

$109.78

51061

PAD-KNEE,LH

51061-0006

$181.44

51061A

PAD-KNEE,RH

51061-0007

$181.44

51090

TANK-COMP-FUEL,M.M.GRAY

51090-5440-27Y

$1,749.05

92022

WASHER,5.2X10X1.5

92022-1023

$3.92

92022A

WASHER,5.1X10X1.0

92022-1977

$3.65

92037

CLAMP,TUBE

92037-147

$7.34

92037

CLAMP,TUBE

92037-147

$7.34

92075

DAMPER,FUEL TANK

92075-125

$6.22

92075A

DAMPER,10X24X12

92075-1690

$5.00

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92152

COLLAR

92152-0365

$1.34

92161

DAMPER,40X40X12

92161-2147

$7.73

92171

CLAMP

92171-1184

$2.46

92190

TUBE,DRAIN

92190-1453

$21.33

92190

TUBE,DRAIN

92190-1453

$21.33

92200

WASHER,6.5X24X2

92200-2230

$4.43

130

BOLT-FLANGED,6X25

130BC0625

$1.54

220

SCREW-PAN-CROS,5X10

220AA0510

$0.71

220A

SCREW-PAN-CROS,5X14

220AA0514

$4.43

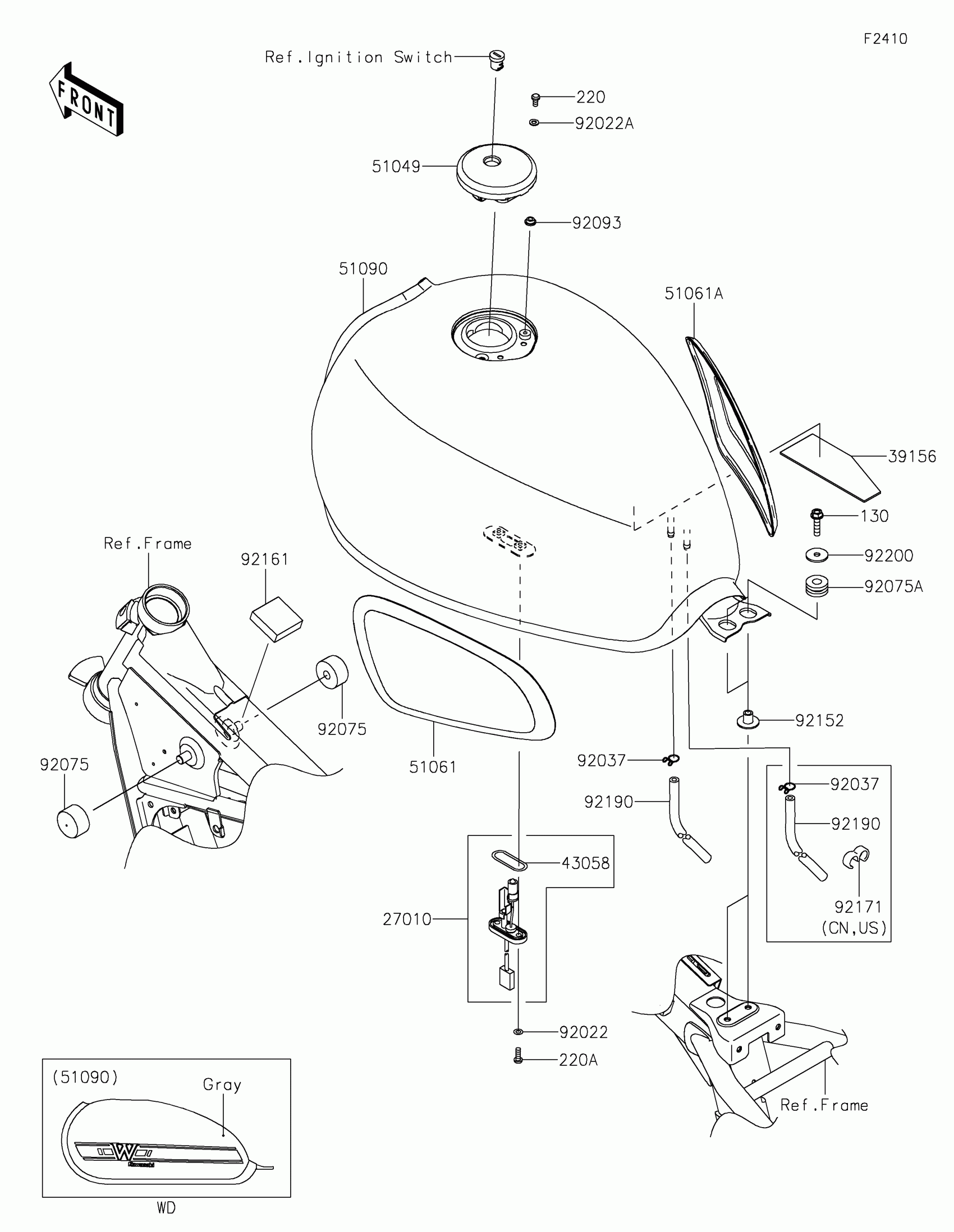

Kawasaki W800 CAFE Fuel Tank Diagram

SWITCH,FUEL LEVEL

PAD,FUEL TANK,INNER

RING,FUEL LEVEL SWITCH

CAP-TANK,FUEL

PAD-KNEE,LH

PAD-KNEE,RH

TANK-COMP-FUEL,M.M.GRAY

WASHER,5.2X10X1.5

WASHER,5.1X10X1.0

CLAMP,TUBE

CLAMP,TUBE

DAMPER,FUEL TANK

DAMPER,10X24X12

SEAL,FUEL TANK CAP

COLLAR

DAMPER,40X40X12

CLAMP

TUBE,DRAIN

TUBE,DRAIN

WASHER,6.5X24X2

BOLT-FLANGED,6X25

SCREW-PAN-CROS,5X10

SCREW-PAN-CROS,5X14
