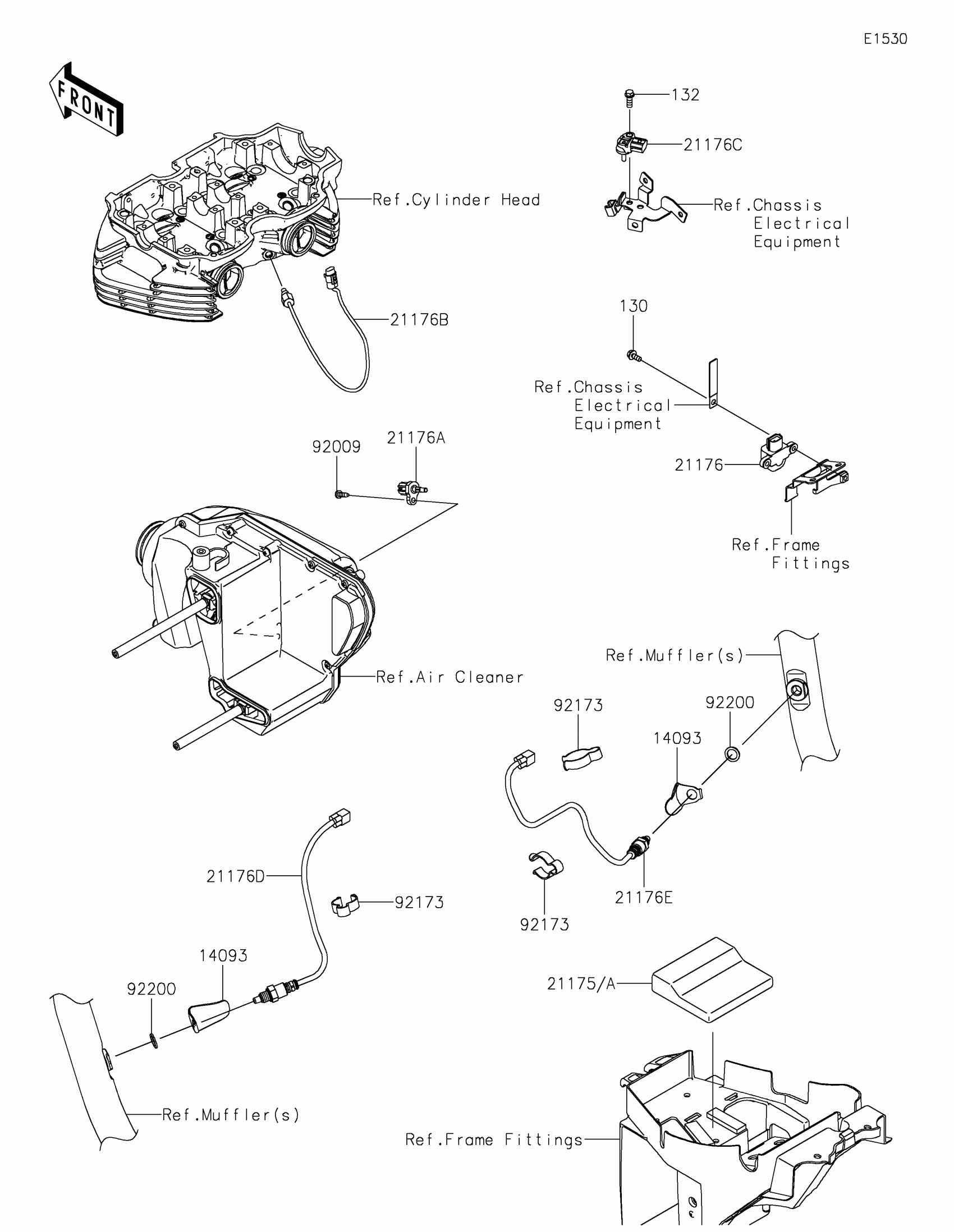

Kawasaki W800 CAFE Fuel Injection Diagram

Description

Price

14093

COVER,OXYGEN SENSOR

14093-0790

$17.94

21175

CONTROL UNIT-ELECTRONIC

21175-1489

$879.62

21175A

CONTROL UNIT-ELECTRONIC

21175-1490

$879.62

21176

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176A

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

21176B

SENSOR,TEMP

21176-0072

$74.54

21176C

SENSOR,PRESSURE

21176-0111

$222.28

21176D

SENSOR,OXYGEN,LH

21176-0895

$165.26

21176E

SENSOR,OXYGEN,RH

21176-0897

$165.26

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92173

CLAMP

92173-0018

$9.43

92200

WASHER,12.5X18X1.6

92200-0087

$2.12

130

BOLT-FLANGED,5X12

130BA0512

$2.22

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51
