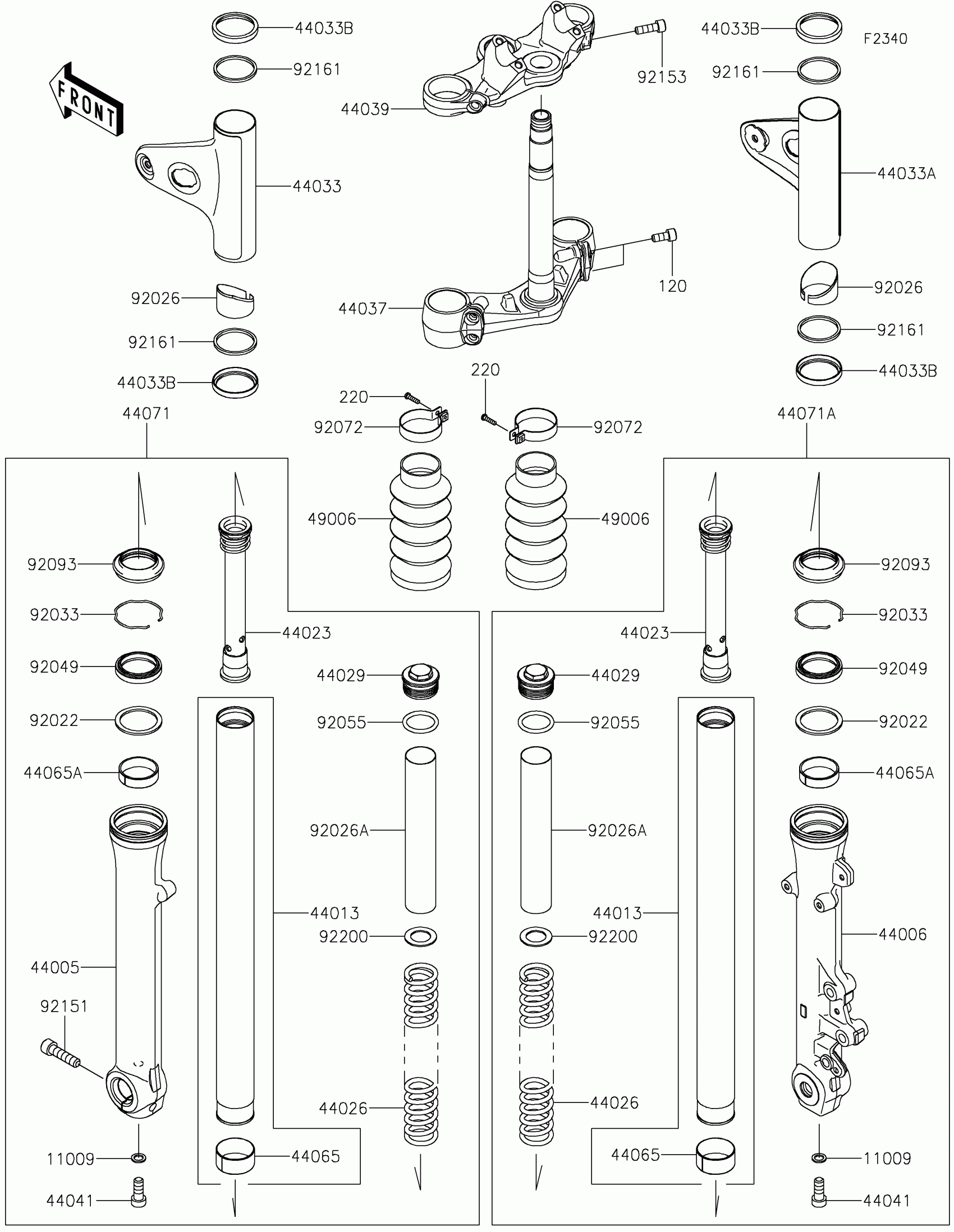

Kawasaki W800 CAFE Front Fork Diagram
#
Description
Price
11009
GASKET,10.5X15X1.5
11009-1325
Unavailable
44005
PIPE-LEFT FORK OUTER
44005-0122
$431.12
44006
PIPE-RIGHT FORK OUTER
44006-0123
$431.12
44013
PIPE-FORK INNER
44013-0351
$117.83
44023
CYLINDER-SET-FORK
44023-0154
$125.06
44026
SPRING-FRONT FORK
44026-0237
$68.65
44029
SEAT-FORK SPRING
44029-0005
$44.62
44033
COVER-FORK,LH,M.F.S.BLACK
44033-0077-739
$99.59
44033A
COVER-FORK,RH,M.F.S.BLACK
44033-0078-739
$99.59
44033B
COVER-FORK
44033-0079
$22.23
44037
HOLDER-FORK UNDER
44037-0184
$377.28
44039
HOLDER-FORK UPPER
44039-0188
$275.87
44041
BOLT,SOCKET,FORK CYLINDER
44041-040
$6.57
44065
BUSHING-FRONT FORK,INNER TUBE
44065-0014
$29.57
44065A
BUSHING-FRONT FORK,OUTER TUBE
44065-1115
$28.71
44071
DAMPER-ASSY,LH
44071-1347
$731.90
44071A
DAMPER-ASSY,RH
44071-1394
$731.90
49006
BOOT,FORK
49006-0611
$74.50
92022
WASHER,FORK OUTER TUBE
92022-1298
$8.58
92026
SPACER,FORK COVER
92026-1432
$5.93
92026A
SPACER,FORK,L=200
92026-1455
Unavailable
92033
RING-SNAP
92033-1036
$6.51
92049
SEAL-OIL
92049-0073
$22.70
92055
RING-O
92055-1321
$1.35
92072
BAND,BOOT
92072-1077
$9.98
92093
SEAL,FORK OUTER TUBE
92093-1472
$23.76
92151
BOLT,SOCKET,10X40
92151-1357
$3.99
92153
BOLT,SOCKET,8X25
92153-1625
$4.65
92161
DAMPER
92161-2162
$5.82
92200
WASHER
92200-1467
$9.91
120
BOLT-SOCKET,8X18
120CC0818
$3.54
220
SCREW-PAN-CROS,4X16
220AB0416
$1.81
