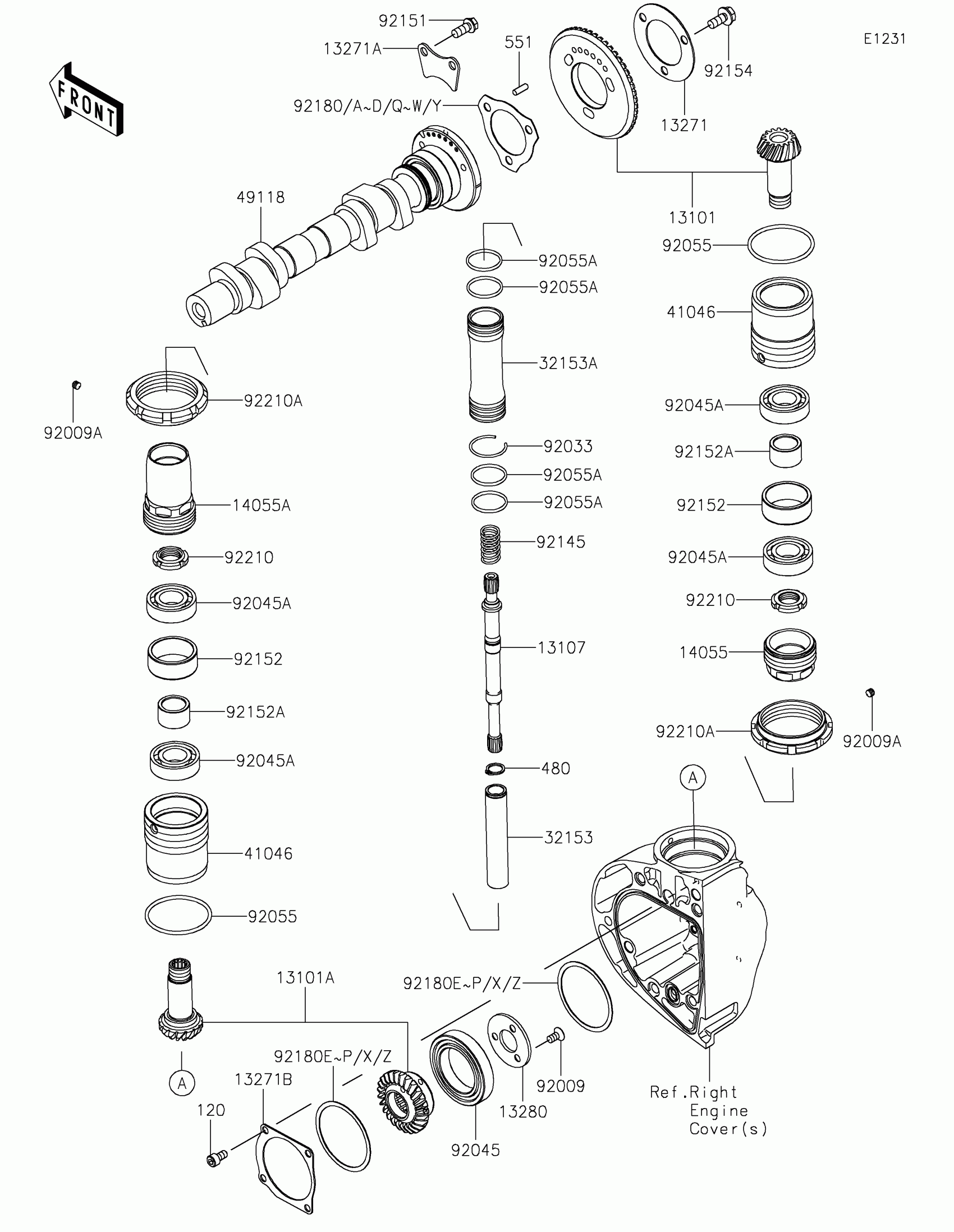

Kawasaki W800 CAFE Camshaft(s)/Bevel Gear Diagram
#
13101
GEAR-ASSY,CAMSHAFT
13101-0580
$475.88
13101A
GEAR-ASSY,CRANKSHAFT
13101-1289
$438.11
13107
SHAFT
13107-1424
$108.27
13271
PLATE,PIN
13271-1190
$4.83
13271A
PLATE,CAMSHAFT BEARING
13271-1191
$4.15
13271B
PLATE,BEARING
13271-1192
$7.45
13280
HOLDER,BEARING
13280-1123
$8.05
14055
CASE-GEAR
14055-1161
$49.52
14055A
CASE-GEAR
14055-1162
$94.73
32153
PIPE
32153-1096
$28.67
32153A
PIPE
32153-1097
$54.40
41046
HOUSING-BEARING
41046-1104
$69.22
49118
CAMSHAFT-COMP
49118-0162
$637.73
92009
SCREW,5X10
92009-1828
$2.46
92009A
SCREW,NUT LOCK
92009-1883
$2.34
92033
RING-SNAP
92033-1307
$3.62
92045
BEARING-BALL,6907C2
92045-1373
$29.84
92045A
BEARING-BALL,6003SH2-T2
92045-1383
$17.71
92055
RING-O,CAMSHAFT BEVEL GEAR
92055-1593
$9.19
92055A
RING-O,22.1X1.9
92055-1617
$2.67
92145
SPRING
92145-1285
$2.64
92151
BOLT,6X14
92151-1647
$2.34
92152
COLLAR
92152-1150
$10.90
92152A
COLLAR
92152-1151
$8.58
92154
BOLT,FLANGED,6X14
92154-0482
$1.63
92180
SHIM,T=0.70
92180-1279
$3.65
92180A
SHIM,T=0.10
92180-1280
Unavailable
92180B
SHIM,T=0.15
92180-1281
Unavailable
92180C
SHIM,T=0.20
92180-1282
Unavailable
92180D
SHIM,T=0.30
92180-1283
Unavailable
92180E
SHIM,T=1.00
92180-1284
$3.69
92180F
SHIM,T=0.10
92180-1285
Unavailable
92180G
SHIM,T=0.15
92180-1286
Unavailable
92180H
SHIM,T=0.20
92180-1287
Unavailable
92180I
SHIM,T=0.30
92180-1288
Unavailable
92180J
SHIM,T=0.40
92180-1289
Unavailable
92180K
SHIM,T=0.50
92180-1290
Unavailable
92180L
SHIM,T=0.60
92180-1291
Unavailable
92180M
SHIM,T=0.70
92180-1292
Unavailable
92180N
SHIM,T=0.80
92180-1293
Unavailable
92180O
SHIM,T=0.90
92180-1294
Unavailable
92180P
SHIM,T=1.20
92180-1296
Unavailable
92180Q
SHIM,T=0.40
92180-1299
Unavailable
92180R
SHIM,T=0.50
92180-1300
Unavailable
92180S
SHIM,T=0.60
92180-1301
Unavailable
92180T
SHIM,T=0.80
92180-1302
Unavailable
92180U
SHIM,T=0.90
92180-1303
Unavailable
92180V
SHIM,T=1.00
92180-1304
Unavailable
92180W
SHIM,T=0.08
92180-1305
Unavailable
92180X
SHIM,T=0.08
92180-1306
Unavailable
92180Y
SHIM,T=0.13
92180-1323
Unavailable
92180Z
SHIM,T=0.13
92180-1324
Unavailable
92210
NUT,BEVEL GEAR
92210-1175
$25.14
92210A
NUT,BEVEL GEAR HOUSING
92210-1176
$48.63
120
BOLT-SOCKET,5X10
120CB0510
$1.64
480
CIRCLIP-TYPE-C,11MM
480J1100
$1.24
551
PIN-DOWEL
551A0412
$1.59
