Description

Price

11057

BRACKET,ABS UNIT

11057-1865

$47.47

11057A

BRACKET,ABS UNIT

11057-2292

$15.93

14093

COVER,ABS UNIT,LH

14093-0772

$13.68

14093A

COVER,ABS UNIT,RH

14093-0773

$13.68

16082

PUMP-ASSY-OIL,ABS,WET

16082-0811

$752.35

39188

TAPE,ABS UNIT COVER,LH

39188-0579

$20.04

39188A

TAPE,ABS UNIT COVER,RH

39188-0580

$20.04

43095

HOSE-BRAKE,HU-FR M/CYLINDER

43095-1641

$138.65

43095A

HOSE-BRAKE,HU-FR CALIPER

43095-1715

$187.37

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

53044

TRIM,L=50

53044-0699

$4.74

92015

NUT,POP,6MM,L=16.5

92015-1792

$4.69

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69

92152

COLLAR,6.5X10X13.6

92152-2204

$2.95

92153

BOLT,OIL,L=23

92153-0627

$5.48

92154

BOLT,BANJO,10X19

92154-1554

$23.53

92154A

BOLT,SOCKET,6X14

92154-1807

$3.29

92154B

BOLT,SOCKET,6X12

92154-2706

$1.78

92173

CLAMP,BRAKE HOSE

92173-2059

$7.49

92173A

CLAMP,BRAKE HOSE

92173-2153

$18.29

92200

WASHER,6.5X14X1

92200-1388

$2.46

120

BOLT-SOCKET,6X16

120CB0616

$1.27

130

BOLT-FLANGED,6X22

130BA0622

$1.29

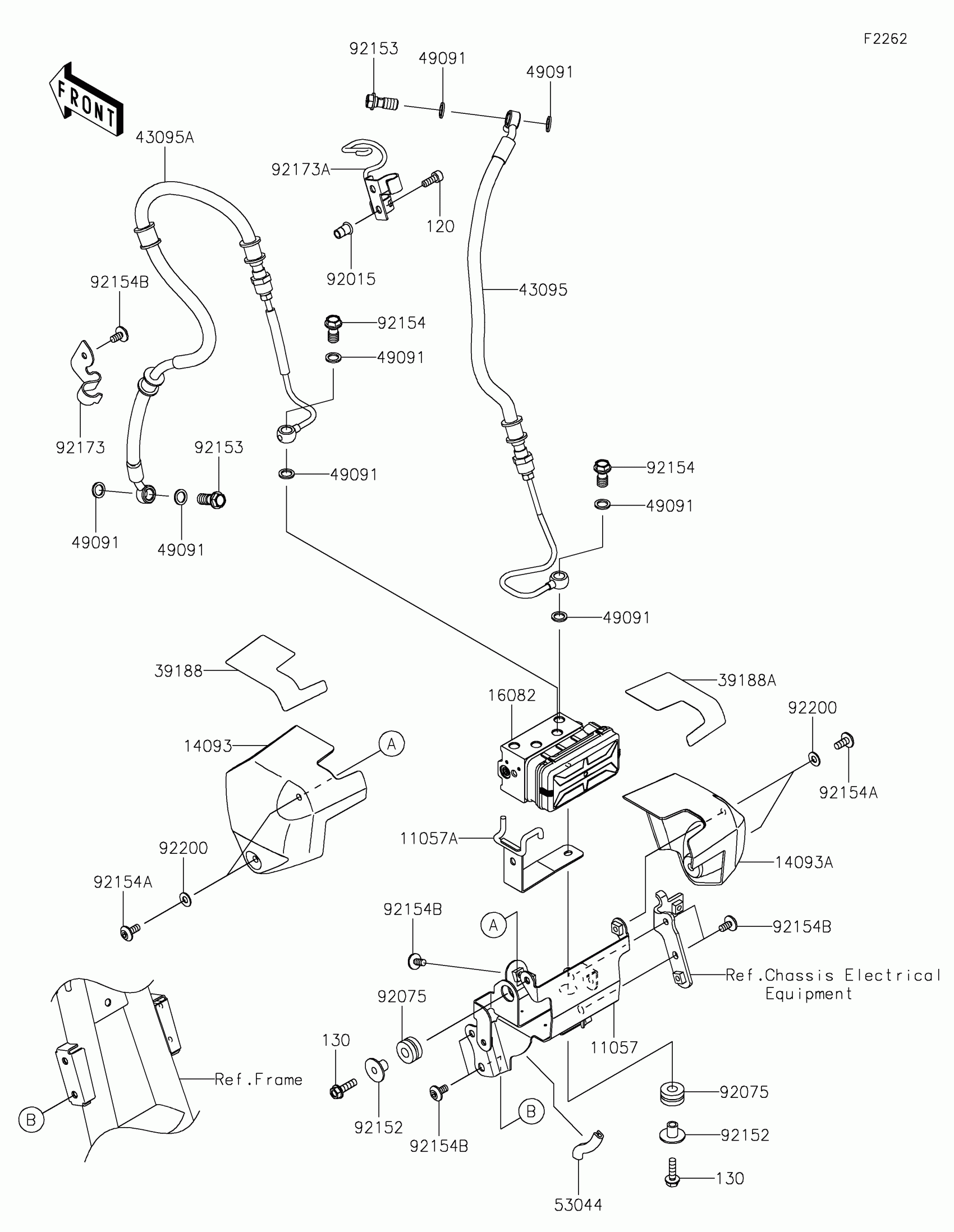

Kawasaki W800 CAFE Brake Piping Diagram

BRACKET,ABS UNIT

BRACKET,ABS UNIT

COVER,ABS UNIT,LH

COVER,ABS UNIT,RH

PUMP-ASSY-OIL,ABS,WET

TAPE,ABS UNIT COVER,LH

TAPE,ABS UNIT COVER,RH

HOSE-BRAKE,HU-FR M/CYLINDER

HOSE-BRAKE,HU-FR CALIPER

WASHER-SEAL,10.1X14.5X1.5

TRIM,L=50

NUT,POP,6MM,L=16.5

DAMPER RUBBER,RR FENR

COLLAR,6.5X10X13.6

BOLT,OIL,L=23

BOLT,BANJO,10X19

BOLT,SOCKET,6X14

BOLT,SOCKET,6X12

CLAMP,BRAKE HOSE

CLAMP,BRAKE HOSE

WASHER,6.5X14X1

BOLT-SOCKET,6X16

BOLT-FLANGED,6X22
