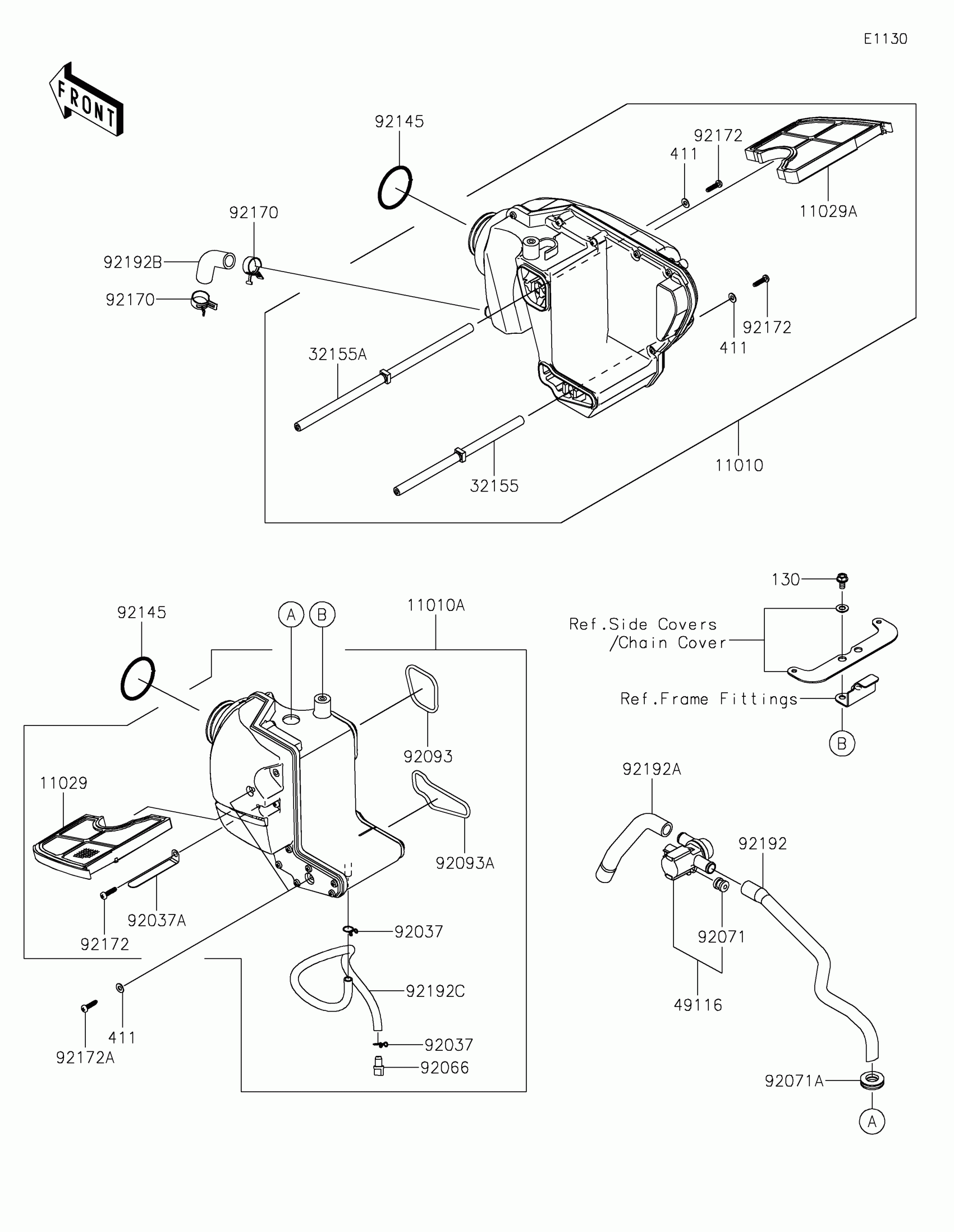

Kawasaki W800 CAFE Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR,RH

11010-0953

$308.58

11010A

FILTER-ASSY-AIR,LH

11010-0959

$308.58

11029

ELEMENT-ASSY-AIR FILTER,LH

11029-0012

Unavailable

11029A

ELEMENT-ASSY-AIR FILTER,RH

11029-0013

Unavailable

32155

PIPE,L=218

32155-0462

$13.06

32155A

PIPE,L=303

32155-0463

$15.06

49116

VALVE-ASSY,AIR CUT

49116-0017

$120.63

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP

92037-1679

$5.52

92066

PLUG,DRAIN

92066-1211

$8.51

92071

GROMMET

92071-0026

$3.87

92071A

GROMMET,AIR SUCTION VALVE

92071-1249

$4.11

92093

SEAL

92093-1496

$4.11

92093A

SEAL

92093-1497

$4.45

92145

SPRING

92145-0795

$6.57

92170

CLAMP

92170-1060

$8.10

92172

SCREW,TAPPING,5X20

92172-0009

$2.80

92172A

SCREW,TAPPING,5X20

92172-0011

$1.78

92192

TUBE,ACV-A/C

92192-0916

$14.76

92192A

TUBE,HEAD-ACV

92192-0917

$7.64

92192B

TUBE,BREATHER

92192-0972

$5.01

92192C

TUBE,DRAIN

92192-1034

$13.37

130

BOLT-FLANGED,6X12

130BA0612

$1.72

411

WASHER-PLAIN,5MM

411AB0500

$0.84
