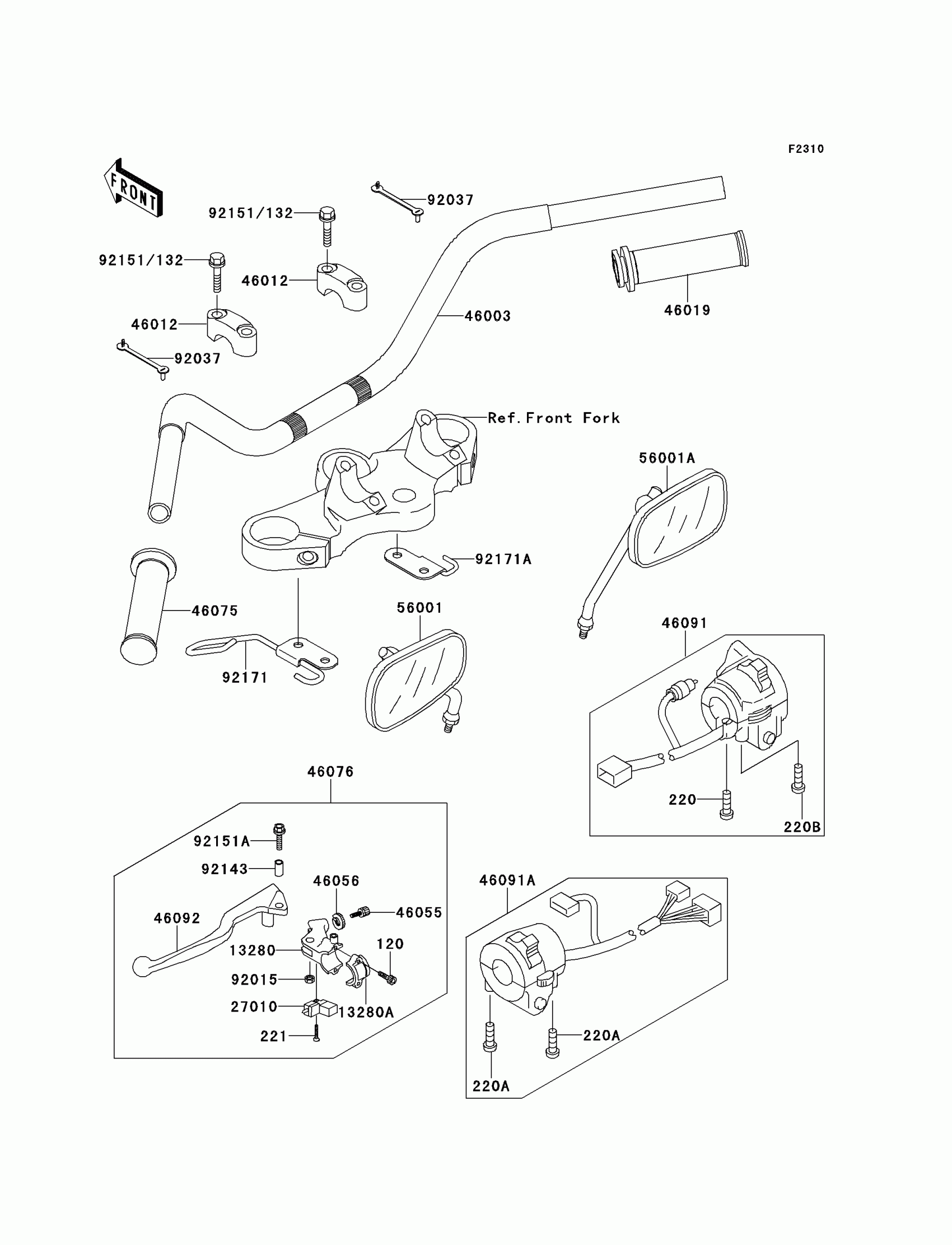

Kawasaki W650 (Canada Only) Handlebar Diagram

#

Description
Price

120

BOLT-SOCKET,6X25,BLACK

120S0625

Unavailable

220

SCREW-PAN-CROS

220C0520

$1.36

220A

SCREW-PAN-CROS,5X35

220C0535

$1.49

220B

SCREW-PAN-CROS,5X40

220C0540

Unavailable

221

SCREW-CSK-CROS,3X20

221B0320

$4.66

13280

HOLDER,CLUTCH LEVER

13280-1137

$53.82

13280A

HOLDER,CLUTCH LEVER

13280-1138

$18.47

27010

SWITCH,CLUTCH

27010-1268

$25.31

46003

HANDLE

46003-1545

$152.33

46012

HOLDER-HANDLE,UPP

46012-1294

$38.49

46019

GRIP-ASSY,THROTTLE

46019-1110

$39.26

46055

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

46056

NUT,CABLE ADJUST LOCK,8MM

46056-005

$6.75

46075

GRIP,LH

46075-1175

$30.72

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1223

$92.81

46091

HOUSING-ASSY-CONTROL,RH

46091-1778

$154.28

46091A

HOUSING-ASSY-CONTROL,LH

46091-1779

$222.83

46092

LEVER-GRIP,CLUTCH

46092-1209

$17.85

56001

MIRROR-ASSY,LH

56001-1451

$85.41

56001A

MIRROR-ASSY,RH

56001-1452

$85.41

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92143

COLLAR

92143-1351

$16.78

92151

BOLT,FLANGED,8X35

92151-1402

$1.76

92151A

BOLT

92151-1523

$5.69

92171

CLAMP,HANDLE SWITCH HARNESS,LH

92171-1146

$16.88

92171A

CLAMP,HANDLE SWITCH HARNESS,RH

92171-1148

Unavailable
