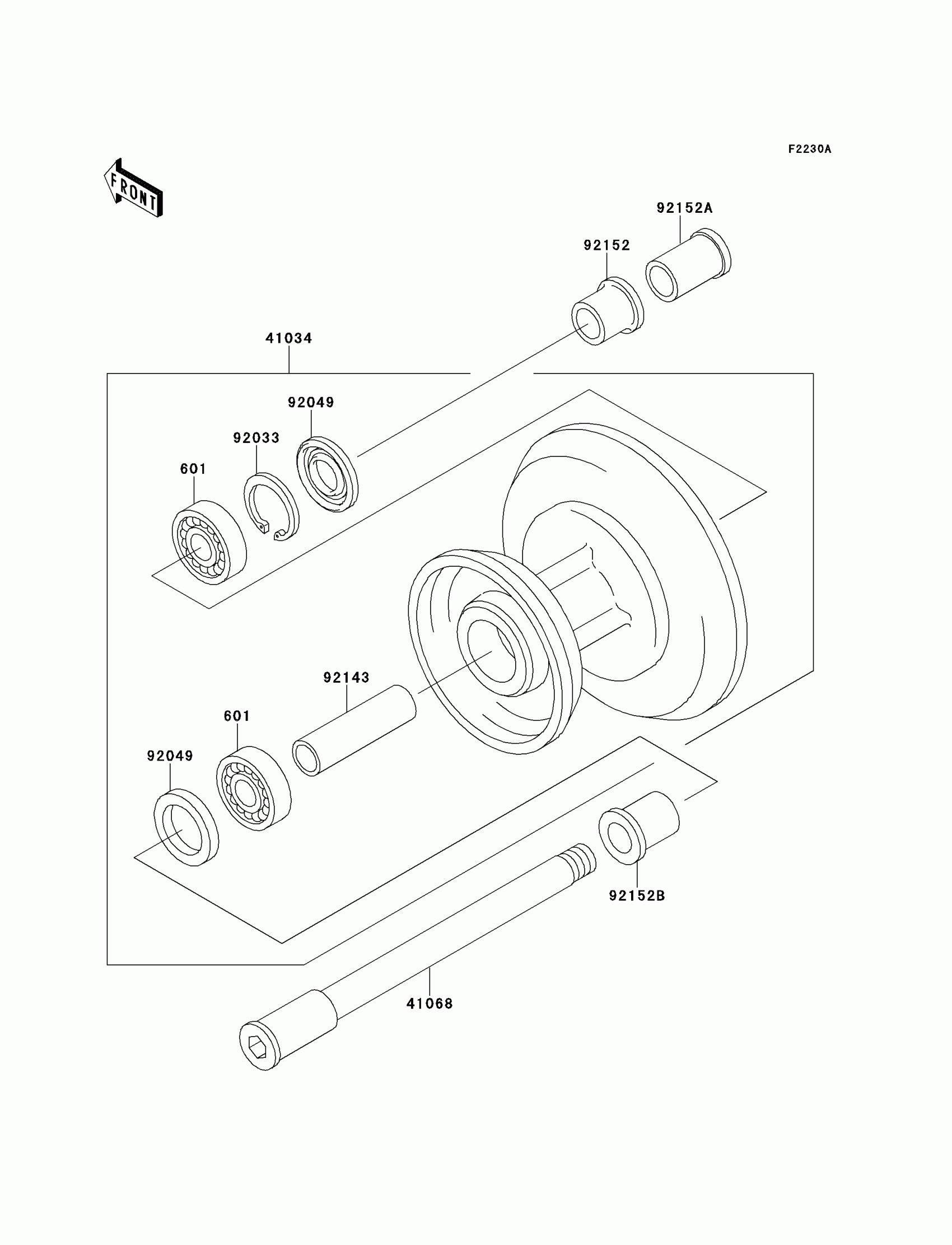

2002 Kawasaki W650 (Canada Only) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki W650 (Canada Only) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

BEARING-BALL,#6203UG

601B6203UG

1
Out of stock

41034

DRUM-ASSY,FRONT BRAKE

41034-1322

1
Out of stock

41068

AXLE,FR

41068-1431

1
Out of stock

92033

RING-SNAP,40MM

92033-1040

1
Out of stock

92049

SEAL-OIL,AG1258AO

92049-1110

1
Out of stock

92143

COLLAR,17.2X25X69

92143-1208

1
Out of stock

92152

COLLAR,FR AXLE,RH,L=25.5

92152-1160

1
Out of stock

92152A

COLLAR,FR AXLE NUT,L=37.5

92152-1306

1
Out of stock

92152B

COLLAR,FR AXLE,LH,L=31.5

92152-1307

1
Out of stock
