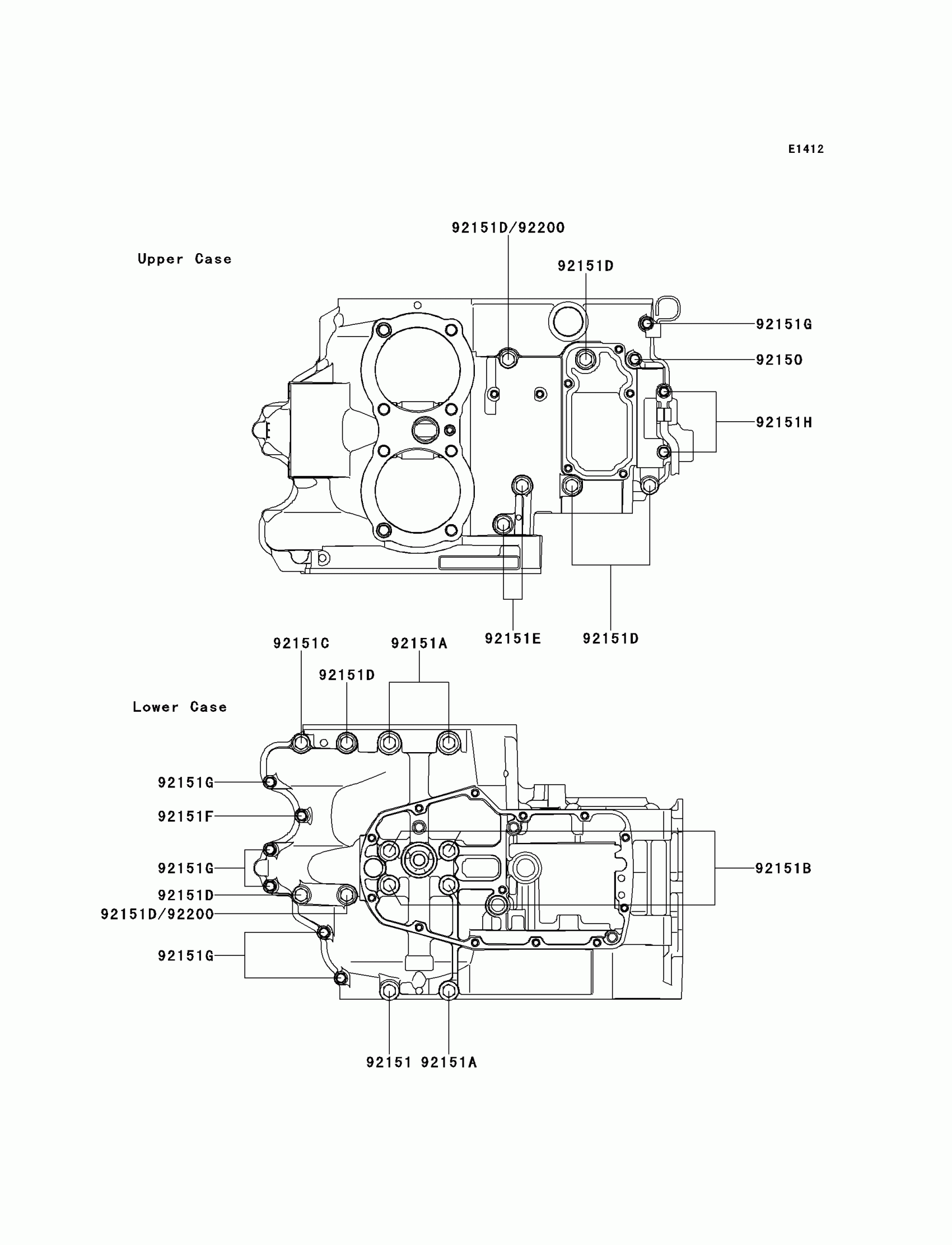

Kawasaki W650 (Canada Only) Crankcase Bolt Pattern Diagram

#

Description
Price

92150

BOLT,6X70

92150-1549

$5.29

92151

BOLT,9X90

92151-1458

$8.12

92151A

BOLT,9X110

92151-1459

$8.12

92151B

BOLT,9X130

92151-1460

$8.58

92151C

BOLT,8X60

92151-1461

$5.33

92151D

BOLT,8X73

92151-1462

$5.61

92151E

BOLT,8X50

92151-1463

$5.33

92151F

BOLT,6X32

92151-1464

$4.49

92151G

BOLT,6X45

92151-1465

$4.49

92151H

BOLT,6X117

92151-1467

$7.84

92200

WASHER,8.5X16X1.2

92200-1063

$3.92
