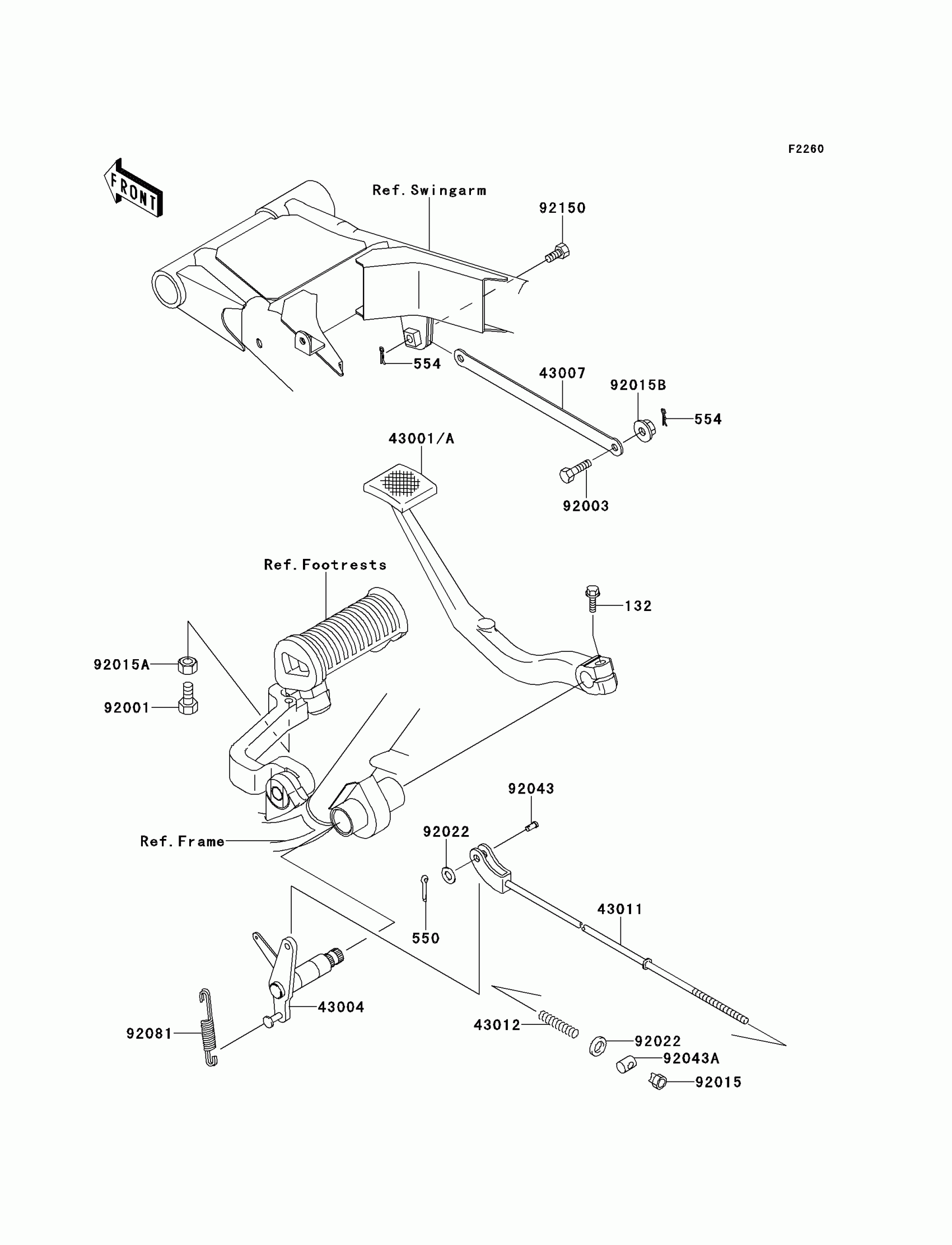

Kawasaki W650 (Canada Only) Brake Pedal/Torque Link Diagram

Description

Price

132

BOLT-FLANGED-SMALL,8X25

132E0825

$5.24

550

PIN COTTER 2.0X15

550D2015

$1.04

554

PIN-SNAP,8MM

554A0800

$1.26

43001A

LEVER-BRAKE,PEDAL

43001-1436

$130.73

43004

SHAFT-BRAKE

43004-1137

Unavailable

43007

ROD-TORQUE

43007-1190

$88.83

43011

ROD-BRAKE

43011-1180

$42.05

43012

SPRING,BRAKE ROD

43012-001

$4.65

92001

BOLT,6X25

92001-1090

$4.11

92003

BOLT,10X35

92003-034

$13.21

92015

NUT,BRAKE ROD

92015-042

$6.22

92015A

NUT,6MM

92015-1391

$2.49

92015B

NUT,FLANGED,10MM

92015-1428

$5.00

92022

WASHER,6.3X10.2X1.6

92022-1588

$3.92

92043

PIN,6X17

92043-064

$4.69

92043A

PIN,BRAKE ROD

92043-065

$5.57

92081

SPRING,SIDE STAND

92081-1669

$16.65

92150

BOLT,10X25

92150-1873

$5.29
