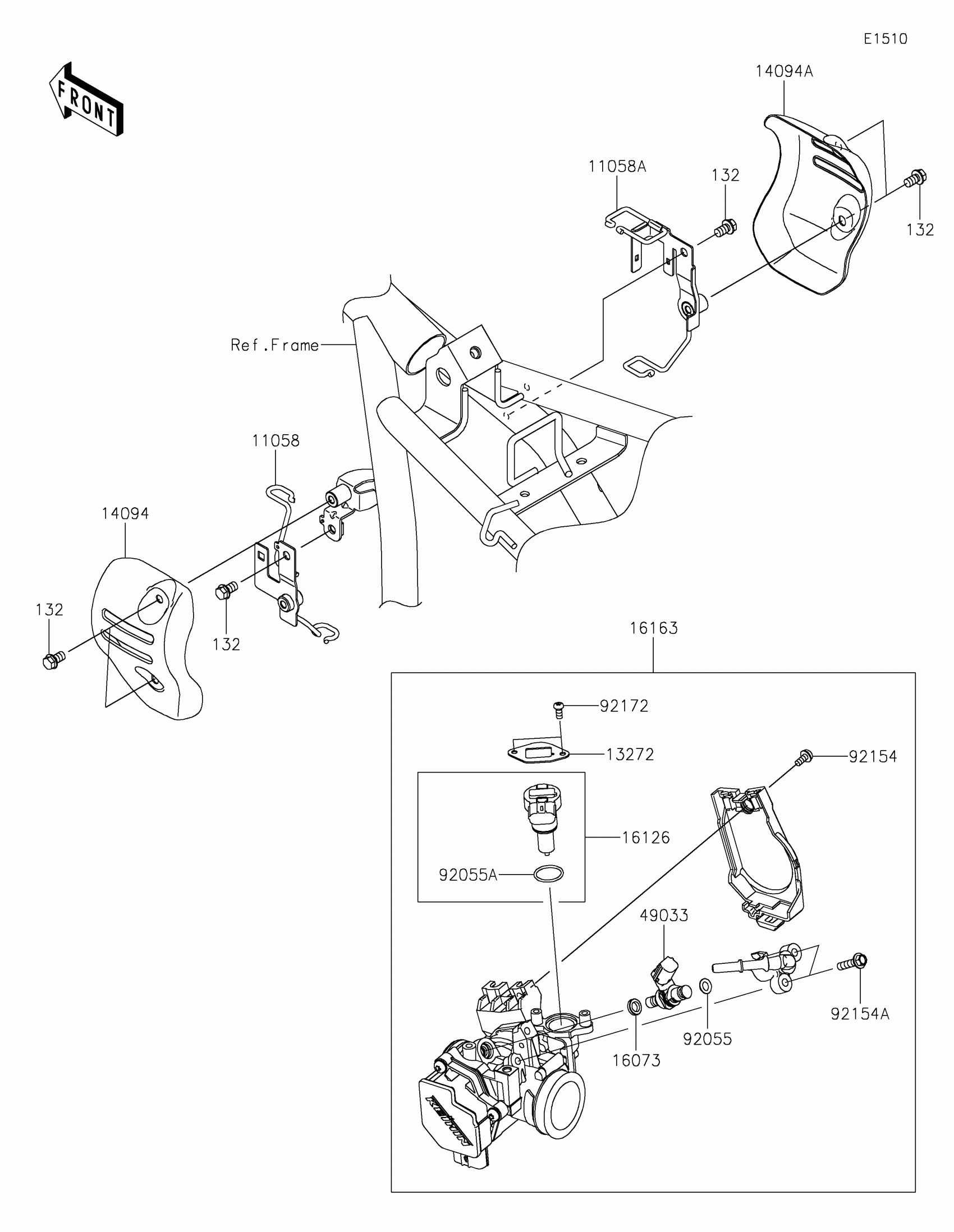

Kawasaki W230 Throttle Diagram

Description

Price

11058

BRACKET,LH

11058-1417

$36.52

11058A

BRACKET,RH

11058-1418

$36.98

13272

PLATE

13272-1862

$22.51

14094

COVER,THROTTLE,LH

14094-0035

$82.22

14094A

COVER,THROTTLE,RH

14094-0036

$82.22

16073

INSULATOR

16073-0821

$20.67

16126

VALVE,ISC

16126-0729

$116.43

16163

THROTTLE-ASSY

16163-0951

$628.56

49033

NOZZLE-INJECTION

49033-0031

$192.65

92055

RING-O,6.3X2.2

92055-0821

$7.71

92055A

RING-O

92055-0826

$8.58

92154

BOLT

92154-0133

$7.24

92154A

BOLT,FLANGED,5X20

92154-1559

$2.00

92172

SCREW,TORX

92172-0903

$3.63

132

BOLT-FLANGED-SMALL

132BC0610

$1.97
