Description

Price

21007

ROTOR,SENSOR

21007-0683

$89.81

21176

SENSOR,SPEED,RR

21176-1219

$78.10

41080

DISC,RR

41080-0774

$290.21

43034

HOLDER-BRAKE,RR

43034-0181

$168.02

43044

HOLDER-COMP-CALIPER,RR

43044-1076

$49.73

43048

PISTON-CALIPER

43048-1090

$66.83

43049

PACKING

43049-1025

$5.46

43049A

PACKING,PISTON SEAL

43049-1060

$19.45

43049B

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER-BRAKE

43056-0004

$13.48

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0132-DJ

$126.80

43082

PAD-ASSY-BRAKE

43082-0084

$42.00

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1089

$7.38

92075

DAMPER

92075-1414

$7.34

92081

SPRING,PAD

92081-1502

$8.51

92150

BOLT

92150-1144

$9.91

92150A

BOLT,SOCKET,8X16

92150-1840

$4.18

92151

BOLT

92151-1166

$2.26

92154

BOLT,SOCKET,8X18

92154-3951

$4.37

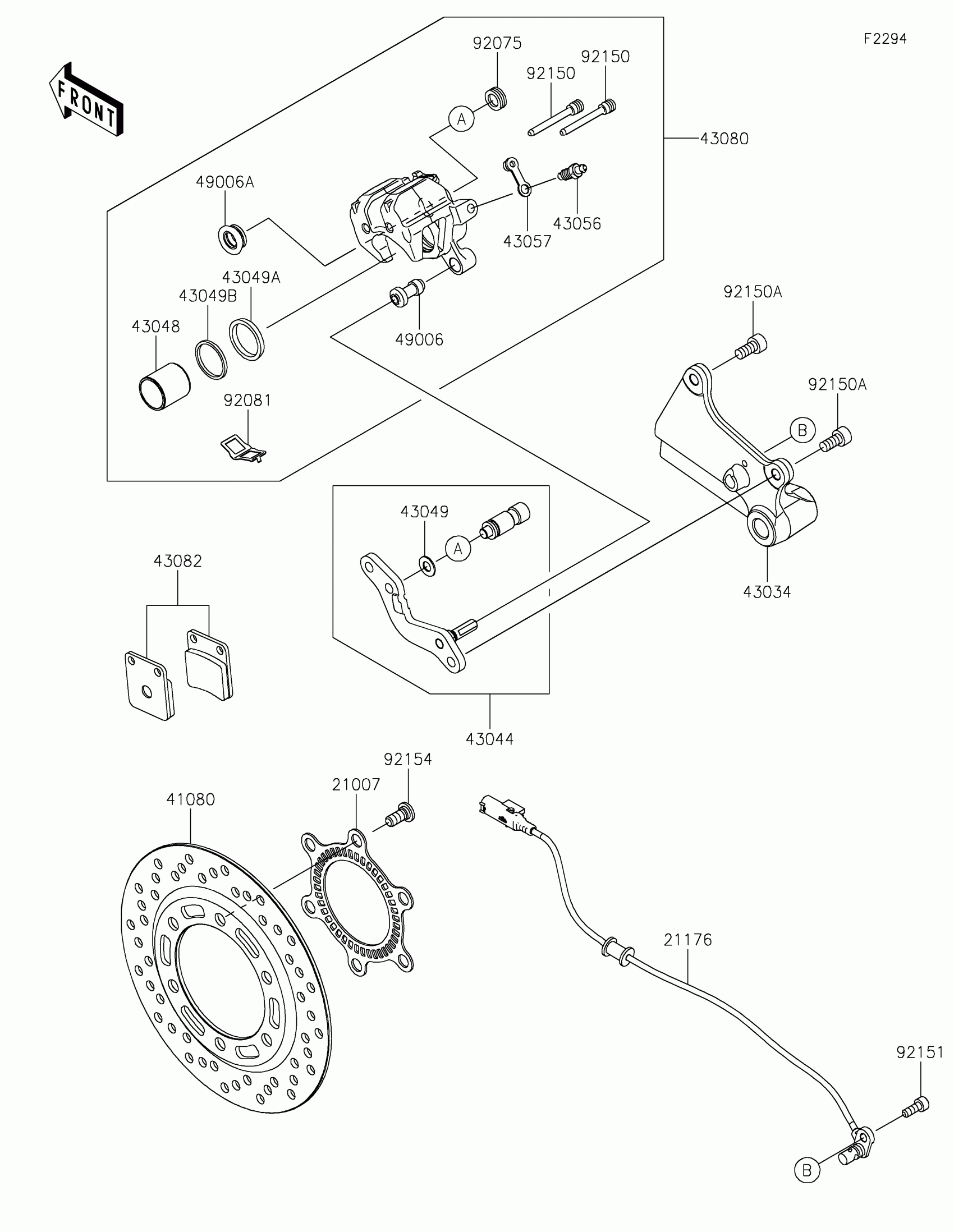

Kawasaki W230 Rear Brake Diagram

ROTOR,SENSOR

SENSOR,SPEED,RR

DISC,RR

HOLDER-BRAKE,RR

HOLDER-COMP-CALIPER,RR

PISTON-CALIPER

PACKING

PACKING,PISTON SEAL

PACKING,PISTON SEAL

BREATHER-BRAKE

CAP-BREATHER

CALIPER-SUB-ASSY,RR,BLACK

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

DAMPER

SPRING,PAD

BOLT

BOLT,SOCKET,8X16

BOLT

BOLT,SOCKET,8X18
