Description

Price

11058

BRACKET,HEAD LAMP BODY

11058-1645

$8.87

23001

LAMP-ASSY-HEAD,LED

23001-0071

$1,419.49

23005

BODY-COMP-HEAD LAMP,EBONY

23005-0320-H8

$136.51

23006

RIM-LAMP

23006-0026

$91.90

39137

STAY-COMP,HEAD LAMP

39137-0782

$165.98

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92075

DAMPER

92075-1736

$6.57

92145

SPRING

92145-1990

$21.88

92145A

SPRING

92145-2279

$1.45

92152

COLLAR,8X12X20.3

92152-2433

$7.91

92152A

COLLAR

92152-2785

$2.65

92152B

COLLAR

92152-2940

$3.64

92154

BOLT,SOCKET,5X16

92154-1701

$1.19

92154A

BOLT,FLANGED,8X35

92154-2923

$6.57

92161

DAMPER

92161-2376

$10.06

92172

SCREW,PAN-CROSS,5X15

92172-1407

$2.15

92172A

SCREW,FLANGED,5X52

92172-1408

$4.04

92172B

SCREW,FLANGED,5X52

92172-1461

$1.79

92200

WASHER,5.2X10X1

92200-2286

$0.39

92200A

WASHER,5.2X10X1

92200-2435

$0.40

92200B

WASHER,5.2X12X1

92200-2436

$0.86

92210

NUT

92210-0571

$3.52

92210A

NUT

92210-1850

$3.97

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X25

130BA0625

$1.20

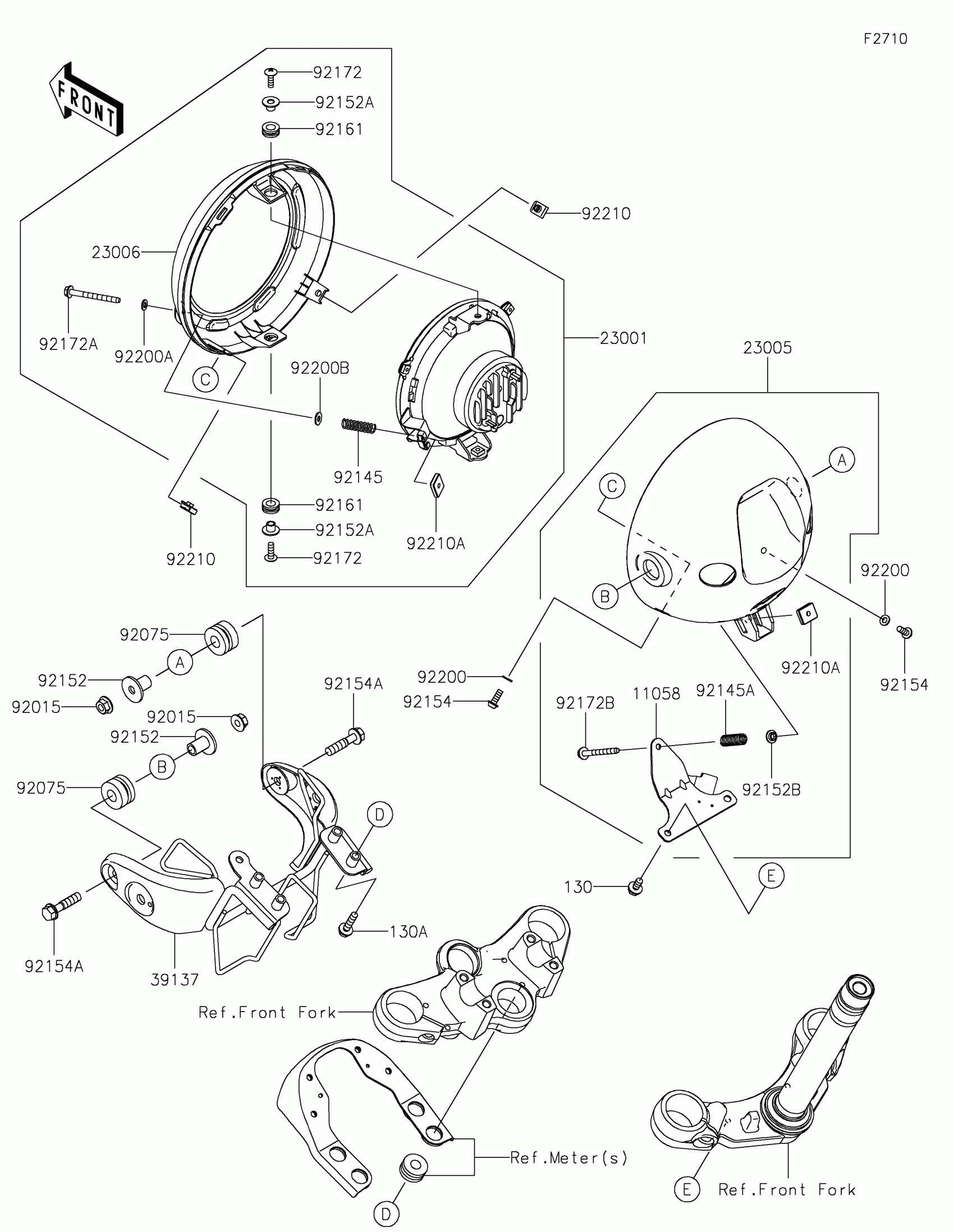

Kawasaki W230 Headlight(s) Diagram

BRACKET,HEAD LAMP BODY

LAMP-ASSY-HEAD,LED

BODY-COMP-HEAD LAMP,EBONY

RIM-LAMP

STAY-COMP,HEAD LAMP

NUT,FLANGED,8MM

DAMPER

SPRING

SPRING

COLLAR,8X12X20.3

COLLAR

COLLAR

BOLT,SOCKET,5X16

BOLT,FLANGED,8X35

DAMPER

SCREW,PAN-CROSS,5X15

SCREW,FLANGED,5X52

SCREW,FLANGED,5X52

WASHER,5.2X10X1

WASHER,5.2X10X1

WASHER,5.2X12X1

NUT

NUT

BOLT-FLANGED,6X12

BOLT-FLANGED,6X25
