Description

Price

21007

ROTOR,SENSOR

21007-0683

$89.81

41080

DISC,FR,BLACK

41080-0773-11H

$297.41

43044

HOLDER-COMP-CALIPER,FR

43044-0102

$229.55

43045

SHAFT-CALIPER

43045-0013

$20.77

43045A

SHAFT-CALIPER

43045-1010

$20.77

43048

PISTON-CALIPER

43048-1068

$81.86

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER-BRAKE

43056-0004

$13.48

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR,BLACK

43080-0247-DJ

$390.03

43082

PAD-ASSY-BRAKE

43082-0128

$47.06

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,HANGER

92043-1507

$13.75

92144

SPRING,PAD

92144-1847

$30.33

92150

BOLT,FLANGED,8X42

92150-1415

$3.35

92154

BOLT,SOCKET,8X18

92154-3951

$4.37

92161

DAMPER,FR BRAKE

92161-2298

$32.41

92210

NUT

92210-0615

$6.26

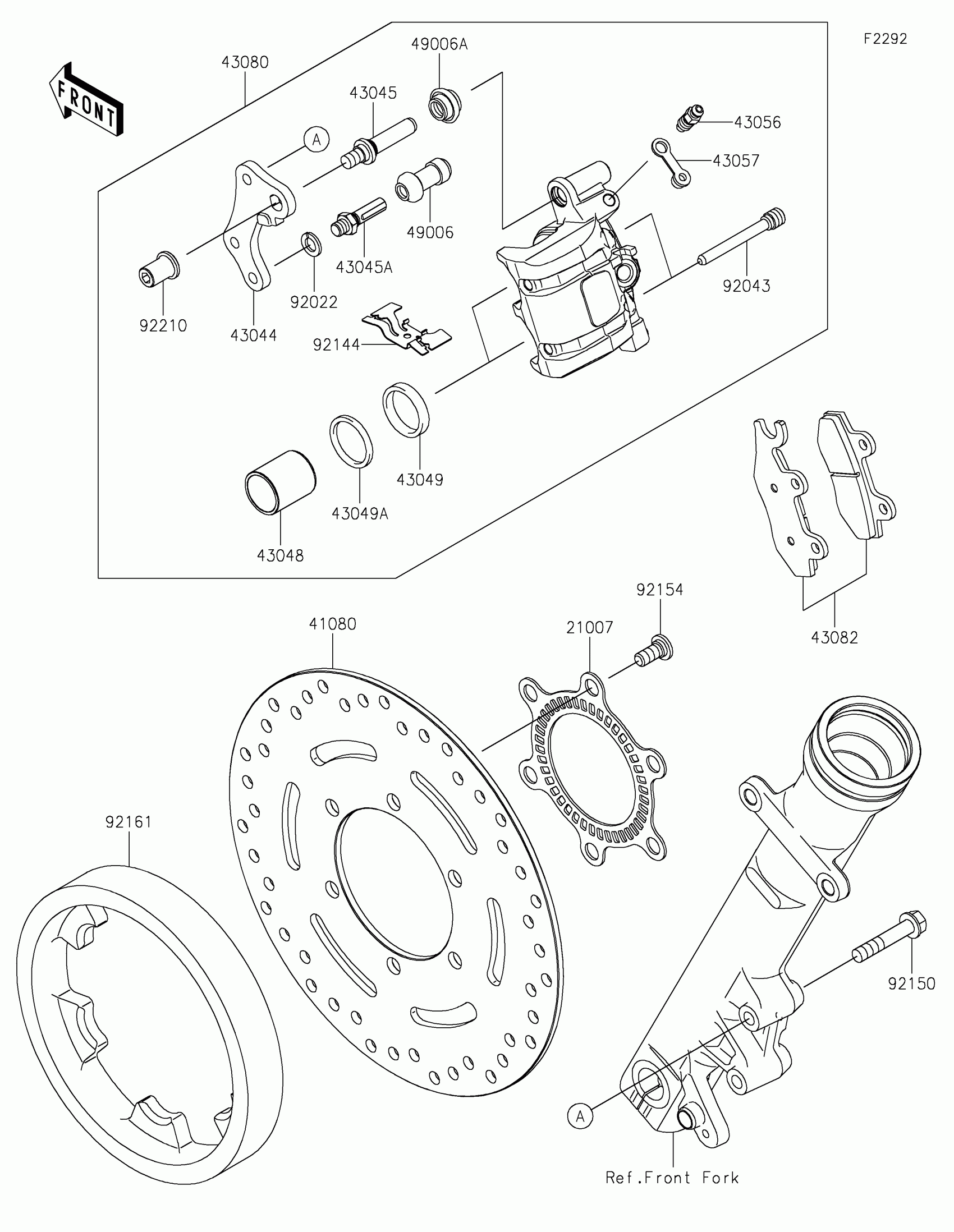

Kawasaki W230 Front Brake Diagram

ROTOR,SENSOR

DISC,FR,BLACK

HOLDER-COMP-CALIPER,FR

SHAFT-CALIPER

SHAFT-CALIPER

PISTON-CALIPER

PACKING,PISTON SEAL

PACKING,PISTON SEAL

BREATHER-BRAKE

CAP-BREATHER

CALIPER-SUB-ASSY,FR,BLACK

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

WASHER,WAVE

PIN,HANGER

SPRING,PAD

BOLT,FLANGED,8X42

BOLT,SOCKET,8X18

DAMPER,FR BRAKE

NUT
