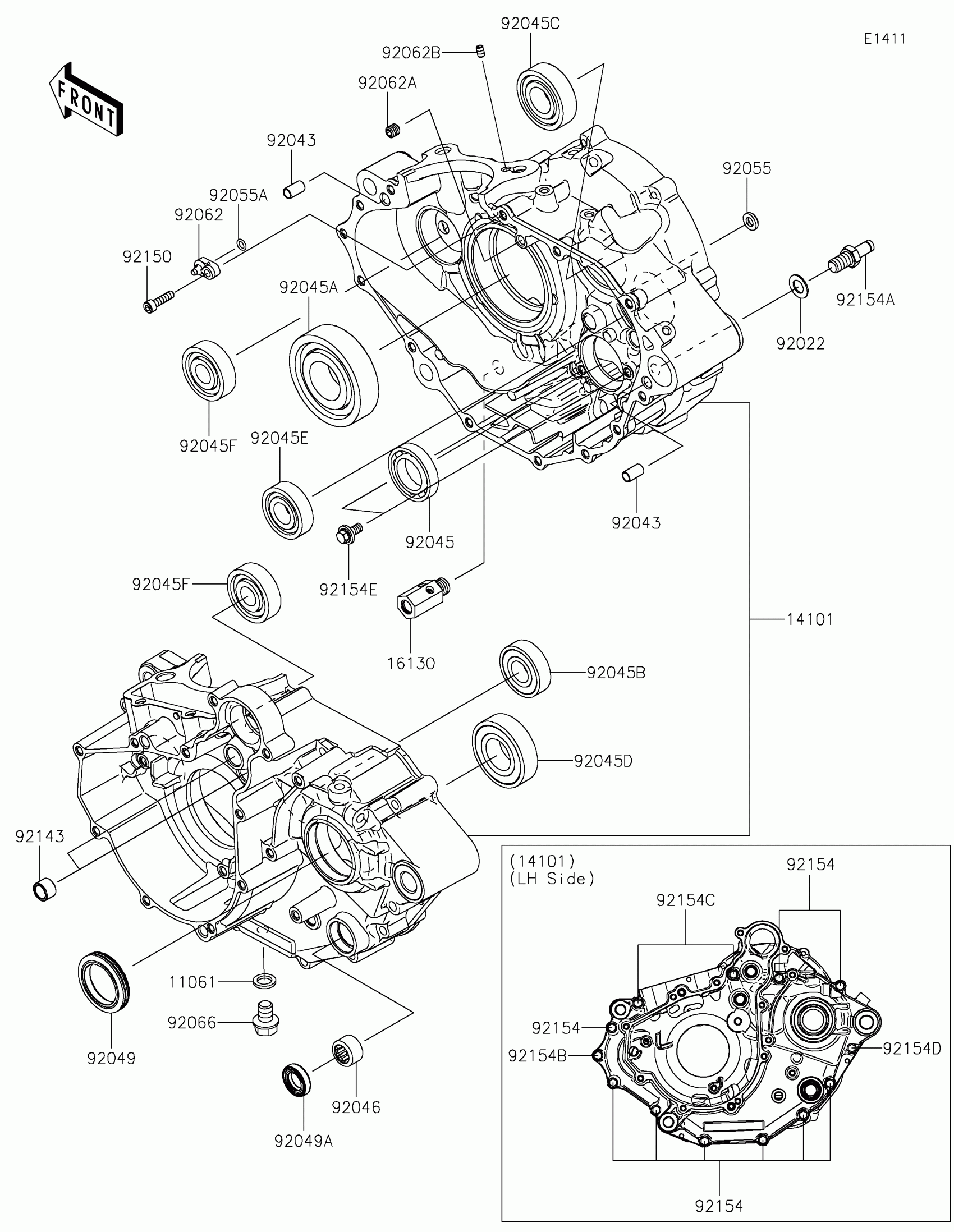

Kawasaki W230 Crankcase Diagram
#
Description
Price
11061
GASKET,10.5X16X2
11061-0222
$5.60
14101
SET-CRANKCASE
14101-0035
$268.04
16130
VALVE-ASSY-RELIEF
16130-0002
$25.48
92022
WASHER,10.2X18X1.0,SK5
92022-1415
$4.69
92043
PIN,6.2X8X14
92043-1741
$3.71
92045
BEARING-BALL,25X42X9
92045-0881
$25.76
92045A
BEARING-BALL,6306CM
92045-0907
$43.15
92045B
BEARING-BALL,6203NSE9C3
92045-0908
$16.54
92045C
BEARING-BALL,6204C3
92045-0909
$21.00
92045D
BEARING-BALL,6205NSE9C3
92045-0910
$30.79
92045E
BEARING-BALL,6203C3
92045-0911
$15.35
92045F
BEARING-BALL,6302CS13
92045-0912
$18.04
92046
BEARING-NEEDLE,HK1412FM
92046-0043
$17.22
92049
SEAL-OIL,32X45X7.5
92049-0825
$22.10
92049A
SEAL-OIL,TC14245
92049-1520
$13.87
92055
RING-O,OD=13
92055-074
$8.58
92055A
RING-O,5.5X1.5
92055-1339
$4.32
92062
NOZZLE
92062-0050
$24.48
92062A
NOZZLE,8X8
92062-0567
$3.86
92062B
NOZZLE,6X8,SILVER
92062-1081
$6.47
92066
PLUG,DRAIN
92066-0978
$4.19
92143
COLLAR
92143-1263
$4.87
92150
BOLT,SOCKET,5X20
92150-1019
$4.26
92154
BOLT,6X50
92154-1168
$0.95
92154A
BOLT,RETURN SPRING
92154-1306
$8.72
92154B
BOLT,FLANGED,6X30
92154-2758
$3.44
92154C
BOLT,FLANGED,6X70
92154-2764
$3.90
92154D
BOLT,FLANGED,6X65
92154-2766
$3.57
92154E
BOLT,W/WASHER,6X14
92154-7475
$3.68
