Description

Price

13127

SHAFT-TRANSMISSION INPUT,10T

13127-0685

$149.86

13128

SHAFT-TRANSMISSION OUTPUT

13128-0705

$171.67

13139

SHIFTER

13139-0027

$118.44

13144

SPROCKET-OUTPUT

13144-0578

$43.31

13262

GEAR,INPUT 2ND,17T

13262-1277

$74.49

13262A

GEAR,INPUT 3RD&4TH,20T&22T

13262-1278

$122.66

13262B

GEAR,INPUT 5TH,21T

13262-1279

$122.66

13262C

GEAR,OUTPUT LOW,27T

13262-1280

$112.90

13262D

GEAR,OUTPUT 2ND,29T

13262-1281

$109.27

13262E

GEAR,OUTPUT 3RD,26T

13262-1282

$111.23

13262F

GEAR,OUTPUT 4TH,24T

13262-1283

$112.90

13262G

GEAR,OUTPUT 5TH,20T

13262-1284

$103.65

13271

PLATE,SPROCKET

13271-1052

$4.76

92022

WASHER,20.5X25.5X0.5

92022-252

$6.22

92033

RING-SNAP

92033-0793

$1.44

92033A

RING-SNAP

92033-1260

$6.41

92055

RING-O,17.5X1.5

92055-022

$6.22

92139

BUSHING

92139-0897

$7.75

92152

COLLAR,SPROCKET

92152-2351

$21.07

92154

BOLT,SOCKET,6X8

92154-2760

$3.57

92200

WASHER,20.3X28X2

92200-1923

$4.60

92200A

WASHER,20.3X24X0.5

92200-1924

$1.69

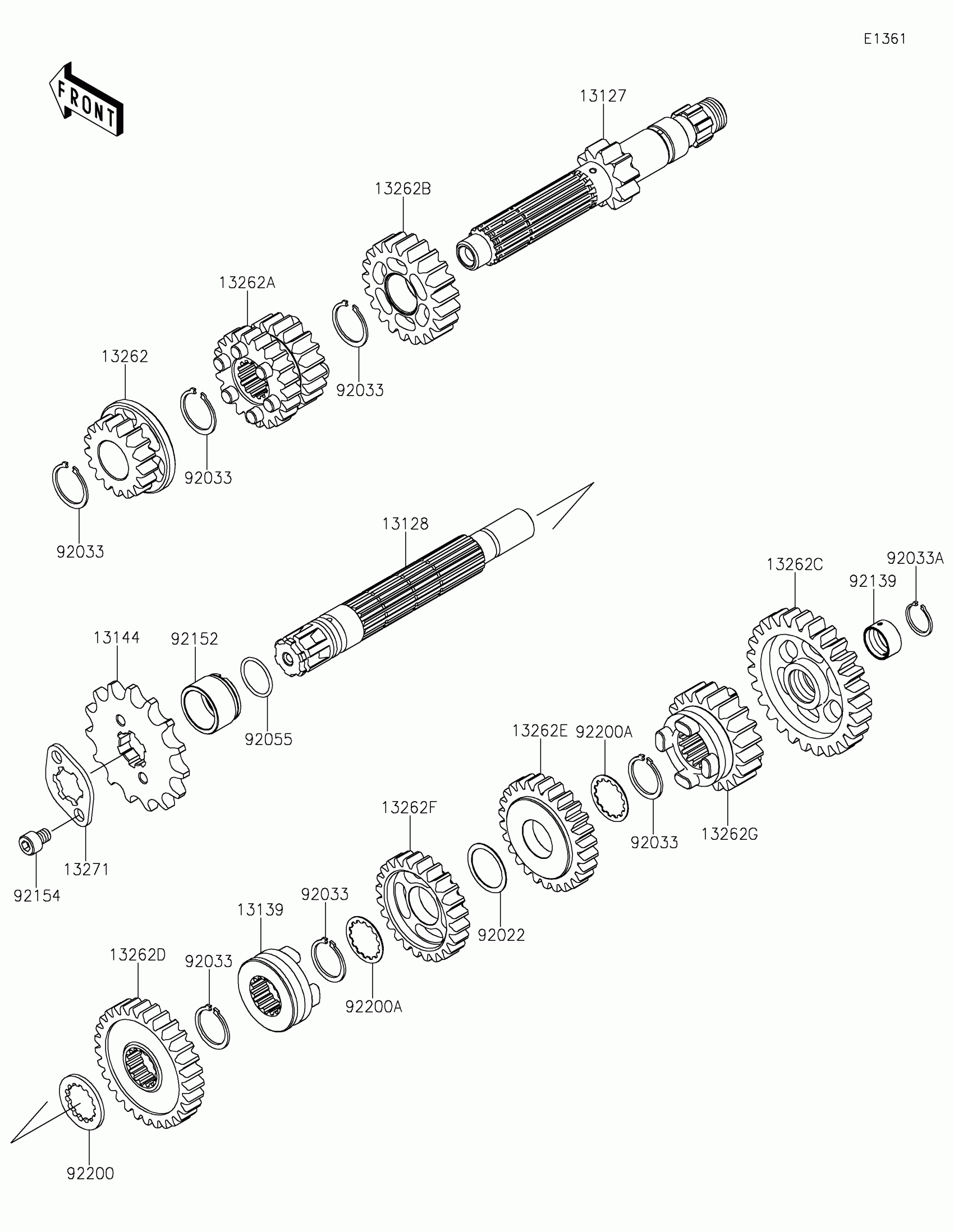

Kawasaki W175 SE Transmission Diagram

SHAFT-TRANSMISSION INPUT,10T

SHAFT-TRANSMISSION OUTPUT

SHIFTER

SPROCKET-OUTPUT

GEAR,INPUT 2ND,17T

GEAR,INPUT 3RD&4TH,20T&22T

GEAR,INPUT 5TH,21T

GEAR,OUTPUT LOW,27T

GEAR,OUTPUT 2ND,29T

GEAR,OUTPUT 3RD,26T

GEAR,OUTPUT 4TH,24T

GEAR,OUTPUT 5TH,20T

PLATE,SPROCKET

WASHER,20.5X25.5X0.5

RING-SNAP

RING-SNAP

RING-O,17.5X1.5

BUSHING

COLLAR,SPROCKET

BOLT,SOCKET,6X8

WASHER,20.3X28X2

WASHER,20.3X24X0.5
