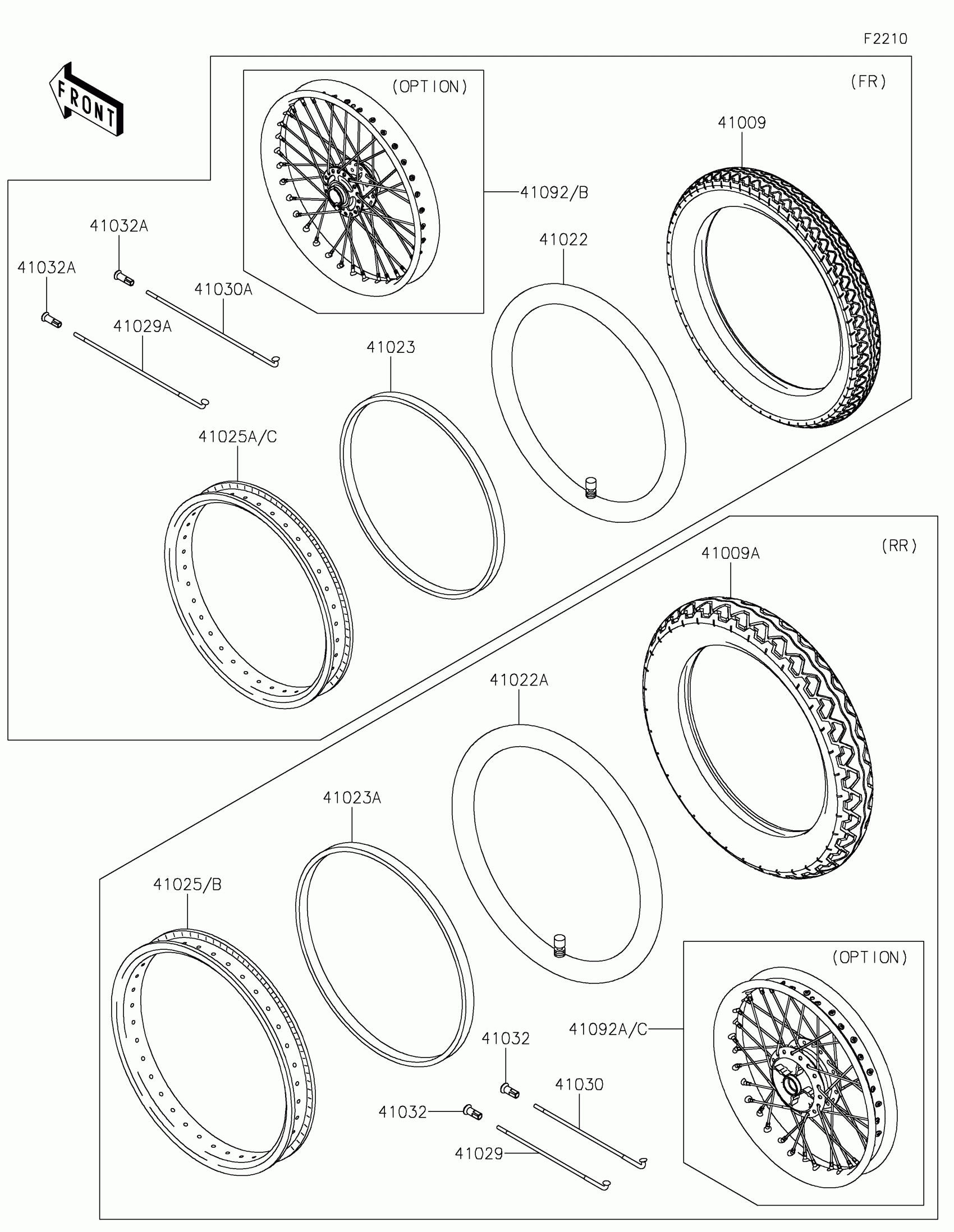

Kawasaki W175 SE Tires Diagram

TIRE,FR,80/100-17 46P,NF25(IRC

41009-0759

$73.88

TIRE,RR,100/90-17 55P,NR25(IRC

41009-0760

$107.81

TUBE-TIRE,FR,80/100-17,IRC

41022-0091

$17.15

TUBE-TIRE,RR,100/90-17

41022-0092

$19.73

BAND-RIM,FR,80/100-17

41023-0040

$5.77

BAND-RIM,RR,100/90-17

41023-0041

$5.83

RIM,RR,17X1.85

41025-0378

Unavailable

RIM,FR,17X1.60

41025-0381

Unavailable

SPOKE-INNER,RR,155.5MMX95D

41029-0092

$3.94

SPOKE-INNER,FR,168MMX106D

41029-0097

$4.63

SPOKE-OUTER,RR,155MMX80D

41030-0024

$7.55

SPOKE-OUTER,FR,167.5MMX85D

41030-0027

$4.63

NIPPLE-SPOKE

41032-0006

Unavailable

NIPPLE-SPOKE,FR

41032-0018

$2.78

WHEEL-SUB ASSY,FR

41092-0016

Unavailable

WHEEL-SUB ASSY,RR

41092-0017

Unavailable
