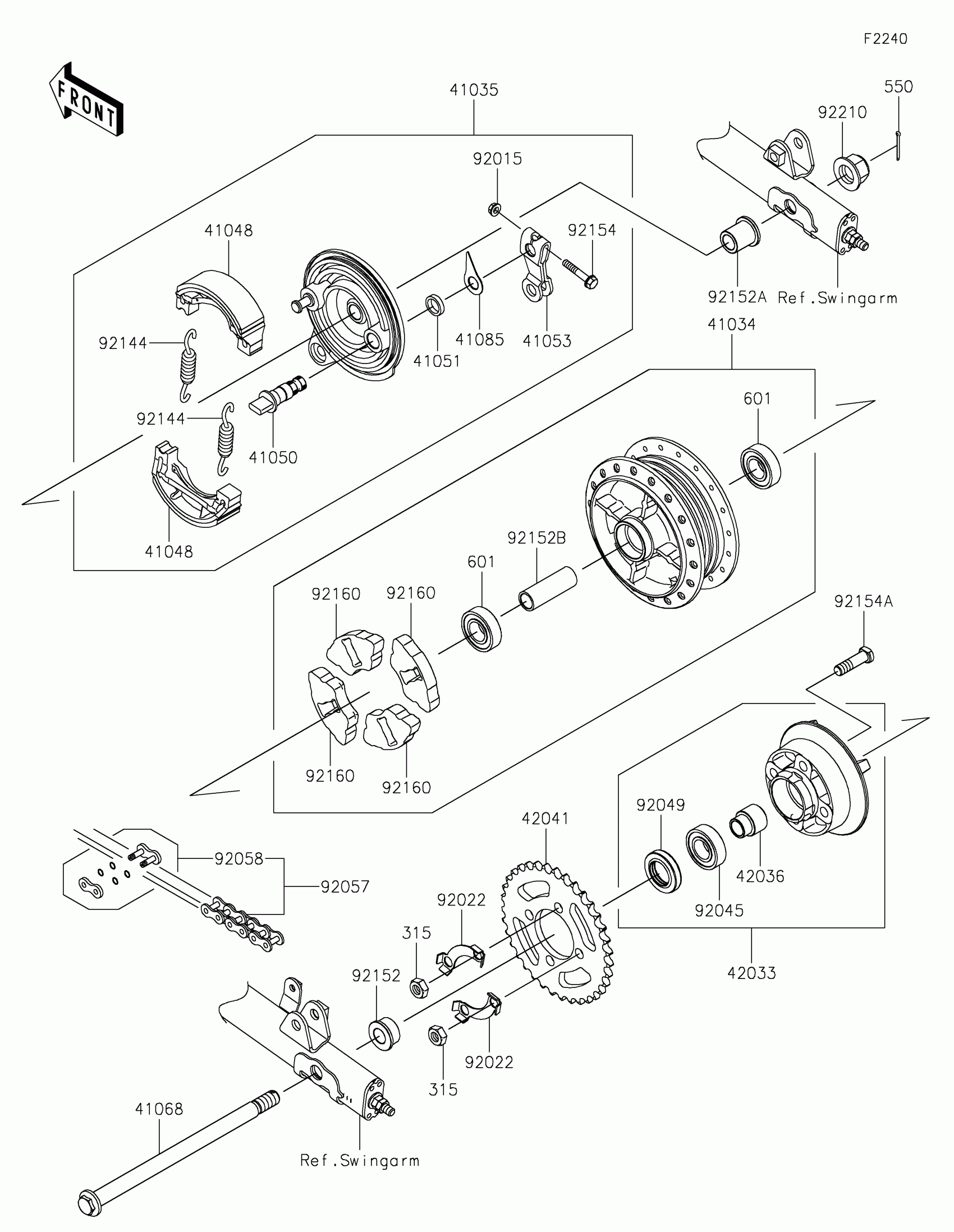

Kawasaki W175 SE Rear Hub Diagram
#
Description
Price
41034
DRUM-ASSY,RR BRAKE
41034-0591
$506.42
41035
PANEL-ASSY-BRAKE
41035-0712
$117.56
41048
SHOE-BRAKE
41048-0008
$10.02
41050
CAM-BRAKE
41050-1098
$8.74
41051
SEAL,BRAKE CAM
41051-001
$4.26
41053
LEVER-BRAKE CAM
41053-1089
$5.92
41068
AXLE,14X246
41068-0626
$74.11
41085
INDICATOR
41085-1079
$0.84
42033
COUPLING-ASSY
42033-0588
$200.44
42036
SLEEVE,15X20X29
42036-0801
$24.96
42041
SPROCKET-HUB,35T
42041-0160
$70.48
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92022
WASHER,LOCK
92022-1705
$7.68
92045
BEARING-BALL,#6004UG
92045-0717
$21.95
92049
SEAL-OIL,S 26 42 8
92049-1428
$22.81
92057
CHAIN,DRIVE,RK-M428X108L
92057-0729
$39.44
92058
JOINT-CHAIN
92058-0049
$13.71
92144
SPRING,BRAKE SHOE
92144-1907
$4.61
92152
COLLAR,15.1X26X14.8
92152-2374
$15.14
92152A
COLLAR,15.1X23X27.4
92152-2375
$16.69
92152B
COLLAR,15.1X20X58
92152-2376
$18.57
92154
BOLT,FLANGED,6X34
92154-2778
$3.74
92154A
BOLT,10X36
92154-2786
$10.49
92160
DAMPER,SHOCK,RR HUB
92160-1627
$11.91
92210
NUT,14MM
92210-1582
$6.41
315
NUT-HEX-FINE,10MM
315AA1000
$0.59
550
PIN-COTTER,2.5X25
550AA2525
$1.36
601
BEARING-BALL
601B6202UU
$21.98
