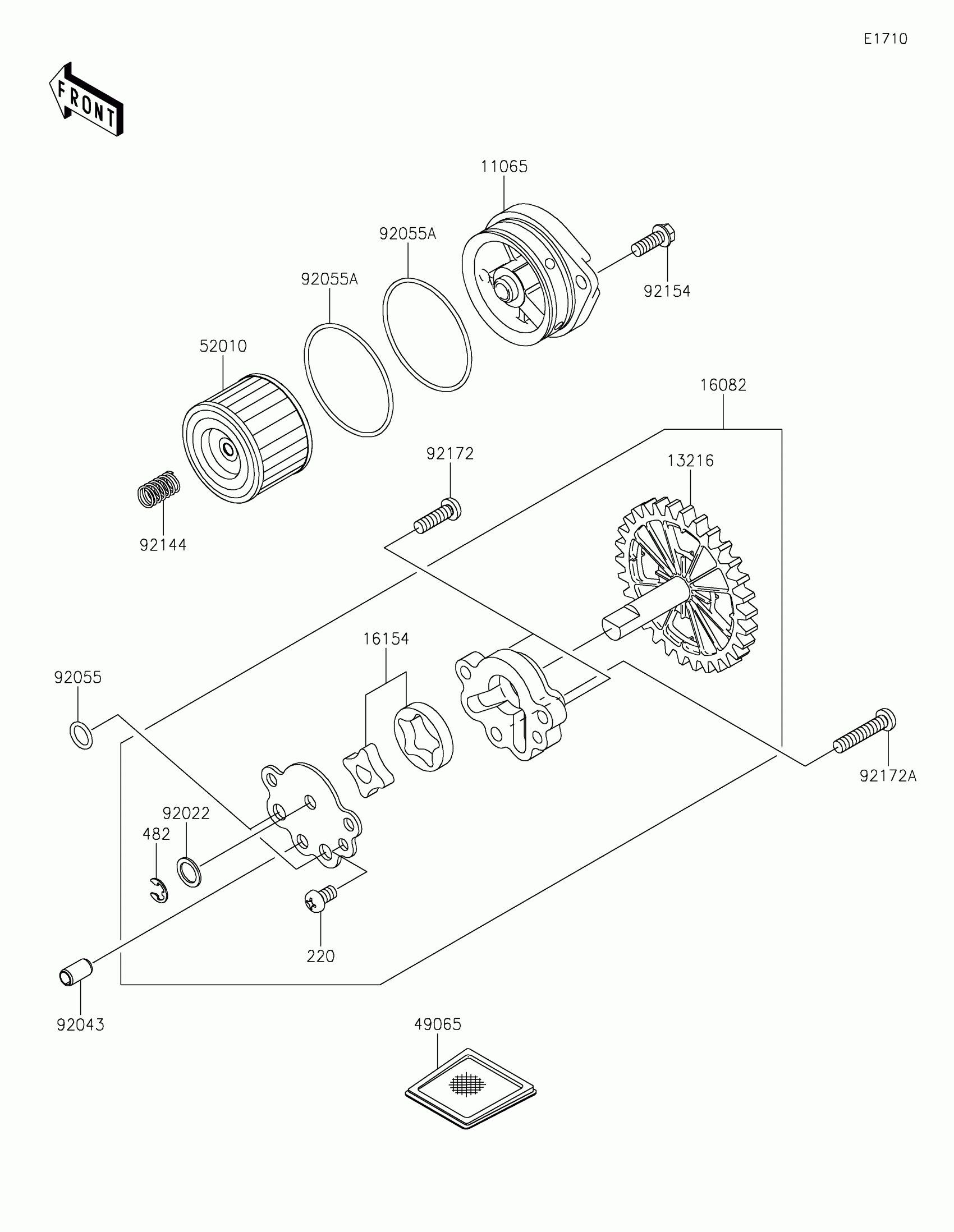

Kawasaki W175 SE Oil Pump Diagram

Description

Price

11065

CAP

11065-0995

$50.24

13216

GEAR-COMP,OIL PUMP

13216-1167

$46.83

16082

PUMP-ASSY-OIL

16082-1153

$161.74

16154

ROTOR-PUMP

16154-1077

$37.81

49065

FILTER-OIL

49065-0713

$13.34

52010

ELEMENT-OIL FILTER

52010-0552

Unavailable

92022

WASHER,10.2X14.5X1.0

92022-1181

$3.92

92043

PIN,6.2X8X14

92043-1263

$0.43

92055

RING-O,9.8X1.9

92055-0887

$4.31

92055A

RING-O,53X1.9

92055-1716

$4.69

92144

SPRING

92144-1761

$4.65

92154

BOLT,FLANGED,6X16

92154-2754

$2.70

92172

SCREW,6X20

92172-1202

$2.17

92172A

SCREW,6X30

92172-1203

$2.17

220

SCREW-PAN-CROS,6X10

220AA0610

$3.23

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.69
