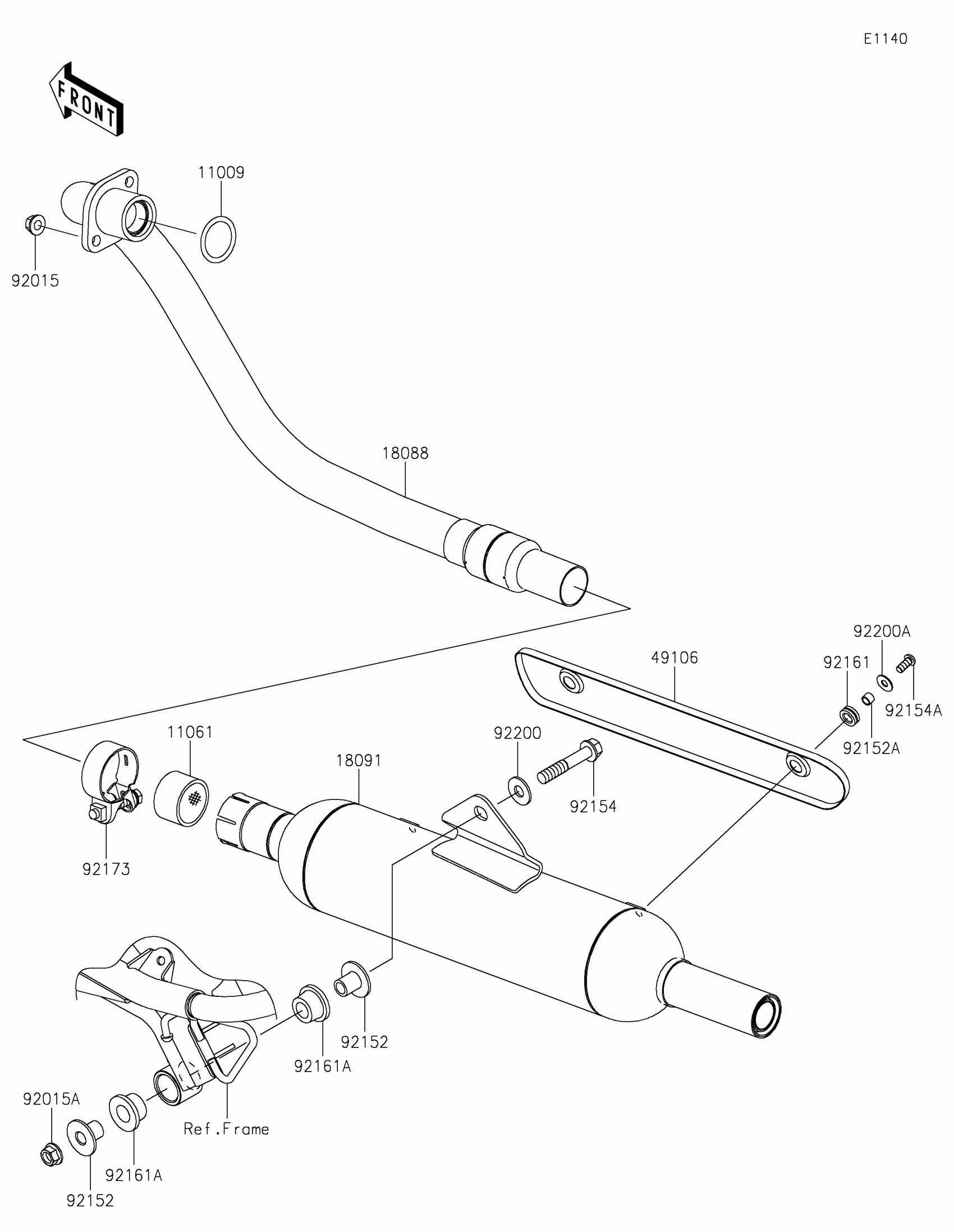

Kawasaki W175 SE Muffler(s) Diagram

Description

Price

11009

GASKET,EXHAUST PIPE H

11009-1866

$8.25

11061

GASKET,EXHAUST PIPE CONNECTING

11061-0432

$26.35

18088

PIPE-EXHAUST

18088-1352

$237.17

18091

BODY-COMP-MUFFLER

18091-1146

$699.65

49106

COVER-MUFFLER

49106-0824

$71.43

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,FLANGED,10MM

92015-1387

$4.31

92152

COLLAR

92152-1682

$4.10

92152A

COLLAR,6.5X8.5X6

92152-1962

$3.90

92154

BOLT,FLANGED,10X55

92154-0070

$3.90

92154A

BOLT,SOCKET,6X14

92154-2817

$3.42

92161

DAMPER

92161-1475

$5.33

92161A

DAMPER

92161-1497

$3.35

92173

CLAMP,42MM

92173-1881

$17.52

92200

WASHER,10.5X25X2.0

92200-1377

$4.18

92200A

WASHER,6.5X16X1.0

92200-3712

$3.73
