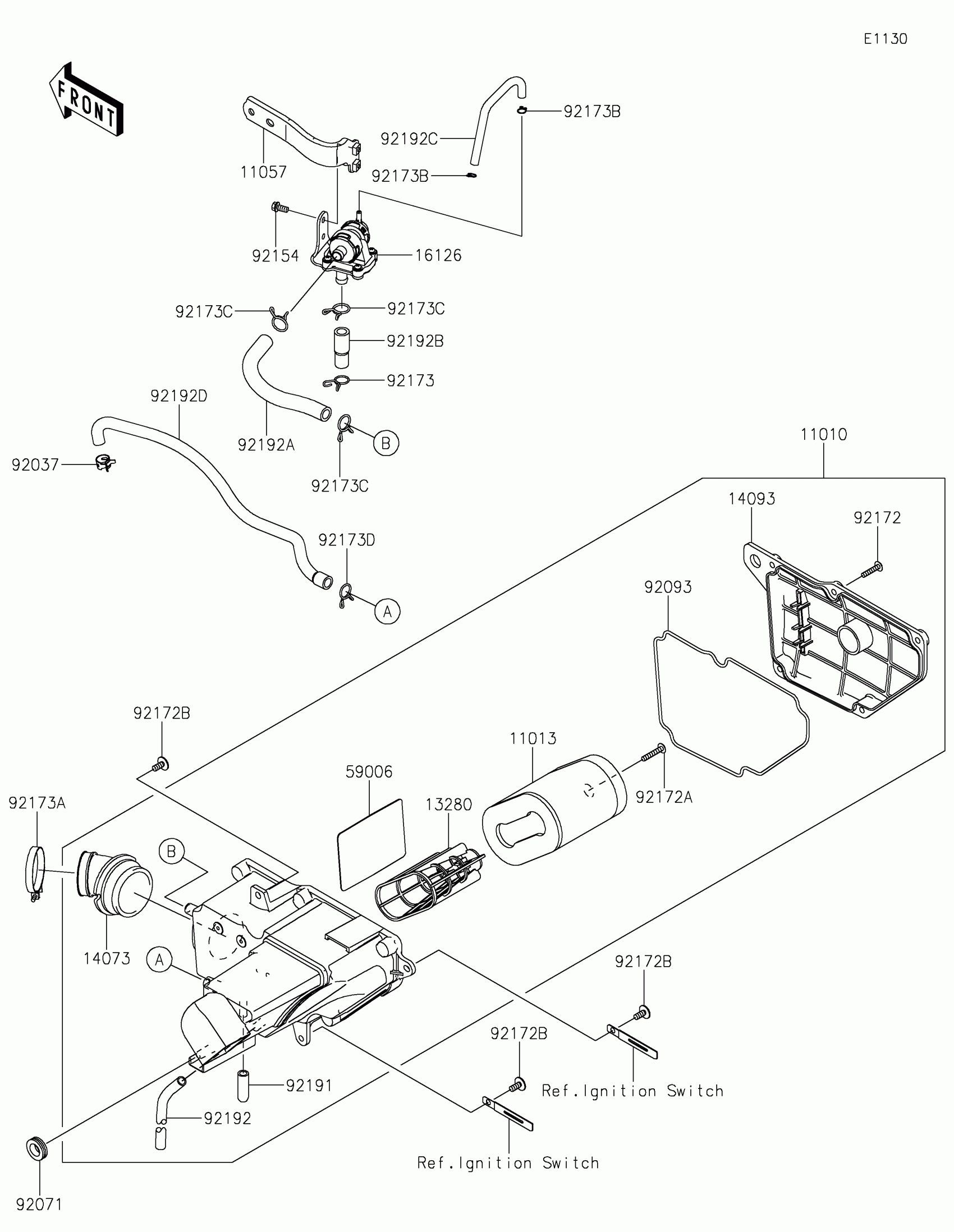

Kawasaki W175 SE (Indonesia Only) Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0865

$243.84

11013

ELEMENT-AIR FILTER

11013-1303

$16.06

11057

BRACKET,ASWV

11057-0895

$19.60

13280

HOLDER,ELEMENT

13280-1294

$5.83

14073

DUCT,CARBURETOR

14073-1854

$19.66

14093

COVER,AIR FILTER CASE

14093-0622

$36.24

16126

VALVE,AIR SWITCH

16126-0742

$118.02

59006

ARRESTER-FLAME

59006-1061

$6.07

92037

CLAMP

92037-2082

$1.45

92071

GROMMET

92071-056

$4.26

92093

SEAL,AIR FILTER

92093-1589

$5.06

92154

BOLT,FLANGED,6X12

92154-3753

$2.70

92172

SCREW,TAPPING,5X25

92172-0730

$1.94

92172A

SCREW,TAPPING,5X30

92172-0731

$1.69

92172B

SCREW,6X14

92172-1197

$2.17

92173

CLAMP,14MM

92173-1015

$3.74

92173A

CLAMP

92173-1155

$1.71

92173B

CLAMP

92173-1190

$2.55

92173C

CLAMP

92173-1563

$5.93

92173D

CLAMP,BREATHER TUBE

92173-1953

$6.22

92191

TUBE,8X12X40

92191-1795

$4.61

92192

TUBE,8X11X295

92192-1674

$11.19

92192A

TUBE,ASWV-A/C

92192-1781

$17.90

92192B

TUBE,ASWV-2ND PIPE

92192-1786

$12.72

92192C

TUBE,ASWV-FITTING

92192-1796

$10.17

92192D

TUBE,BREATHER

92192-1820

$18.48
