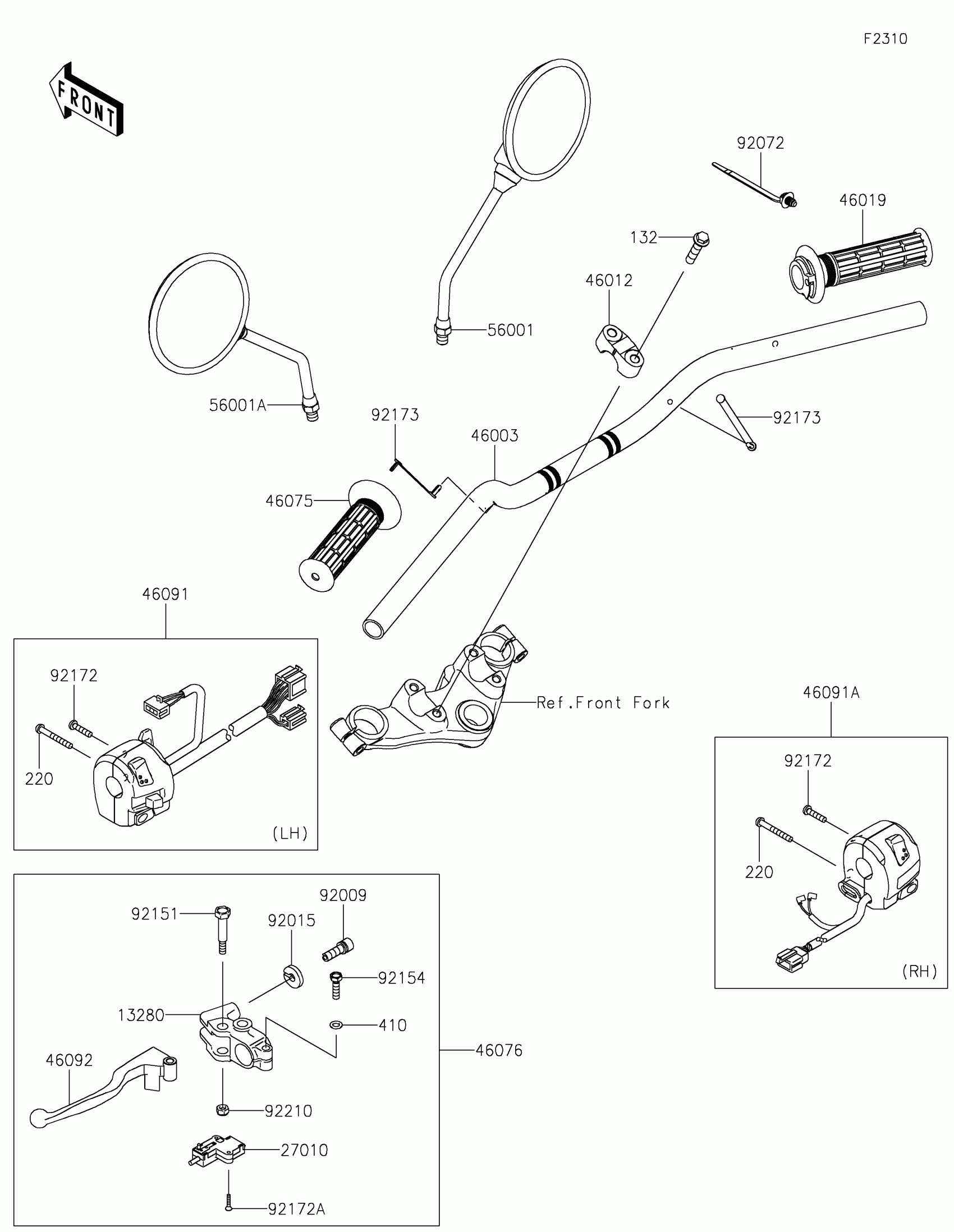

Kawasaki W175 SE Handlebar Diagram
#
Description
Price
13280
HOLDER,CLUTCH LEVER
13280-0105
$37.17
27010
SWITCH,CLUTCH
27010-0729
$32.97
46003
HANDLE
46003-0689
$115.62
46012
HOLDER-HANDLE,UPP,F.S.BLACK
46012-0380-18R
$23.51
46019
GRIP-ASSY,THROTTLE
46019-0004
$36.08
46075
GRIP,LH
46075-0011
$16.08
46076
LEVER-ASSY-GRIP,CLUTCH
46076-0148
$61.01
46091
HOUSING-ASSY-CONTROL,LH
46091-0369
$159.63
46091A
HOUSING-ASSY-CONTROL,RH
46091-0431
$115.98
46092
LEVER-GRIP,CLUTCH
46092-0050
$6.50
56001
MIRROR-ASSY,RH
56001-0166
$46.49
56001A
MIRROR-ASSY,LH
56001-0169
$46.49
92009
SCREW,CABLE ADJUST,8MM,BLACK
92009-1134
$15.16
92015
NUT,CABLE ADJUST LOCK,8MM,BLK
92015-1197
$9.91
92072
BAND,OS170-FT7(BLACK)
92072-1414
$3.74
92151
BOLT,LEVER SET
92151-1986
$6.22
92154
BOLT,UPSET,6X22
92154-1422
$4.69
92172
SCREW-PAN-CROS,5X22
92172-0469
$4.78
92172A
SCREW-CSK-CROS,3X16
92172-1187
$3.65
92173
CLAMP,SPEED,L=58
92173-1077
$6.57
92210
NUT,LOCK,6MM
92210-1551
$2.75
132
BOLT-FLANGED-SMALL,8X35
132BA0835
$4.76
220
SCREW-PAN-CROS,5X40
220AB0540
$2.06
410
WASHER-PLAIN-SMALL,6MM
410AB0600
$0.77
