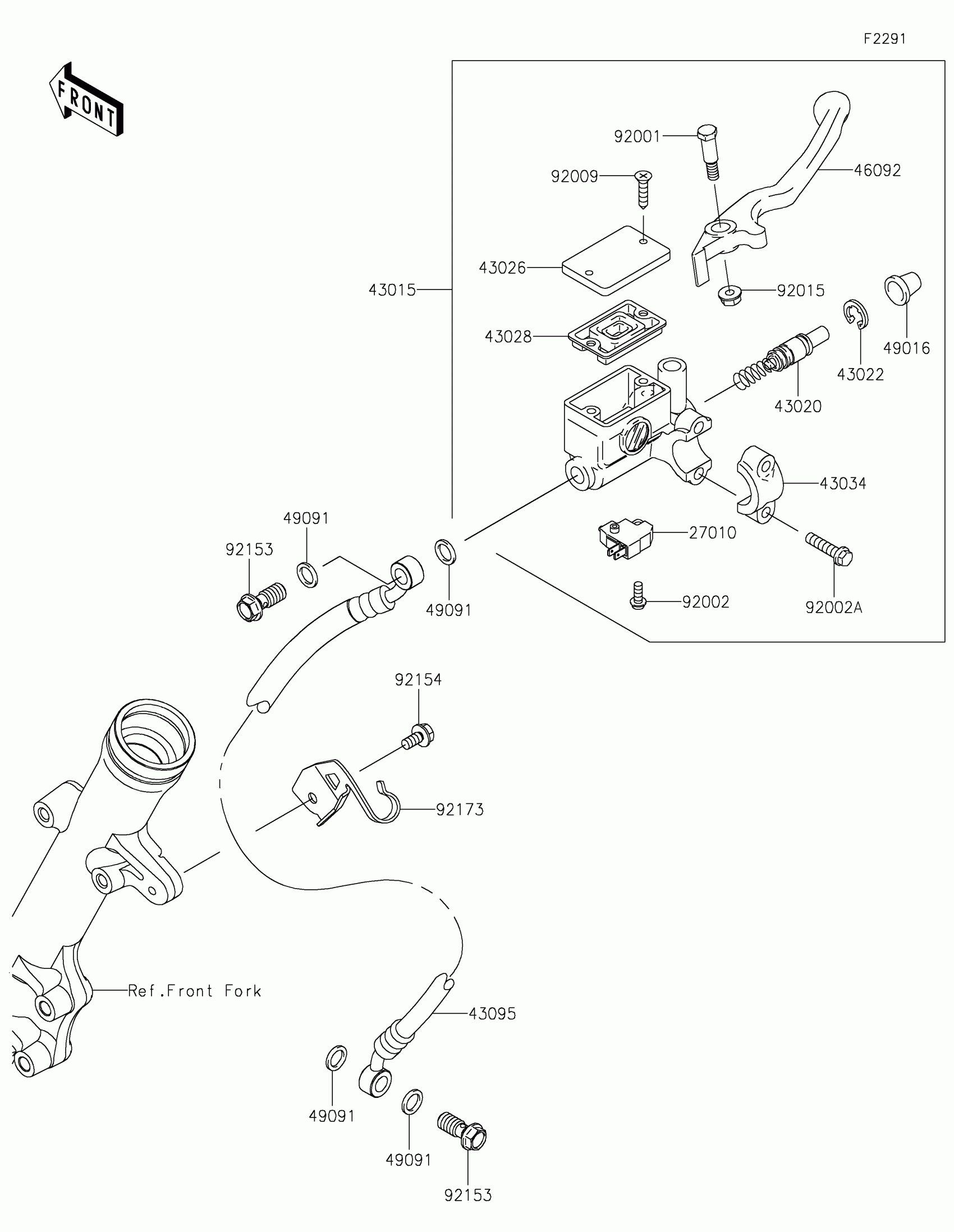

Kawasaki W175 SE Front Master Cylinder Diagram

Description

Price

27010

SWITCH,BRAKE

27010-0873

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0681

$185.93

43020

PISTON-COMP-BRAKE

43020-1095

$51.24

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1074

$25.59

43028

DIAPHRAGM

43028-1061

$16.18

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$19.45

43095

HOSE-BRAKE,767MM

43095-1484

$87.26

46092

LEVER-GRIP,FR BRAKE

46092-0559

$20.65

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$14.23

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92002A

BOLT

92002-1894

$5.52

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92153

BOLT,OIL,L=23

92153-0029

$1.63

92154

BOLT,FLANGED,6X12

92154-2776

$2.70

92173

CLAMP

92173-1753

$11.02
