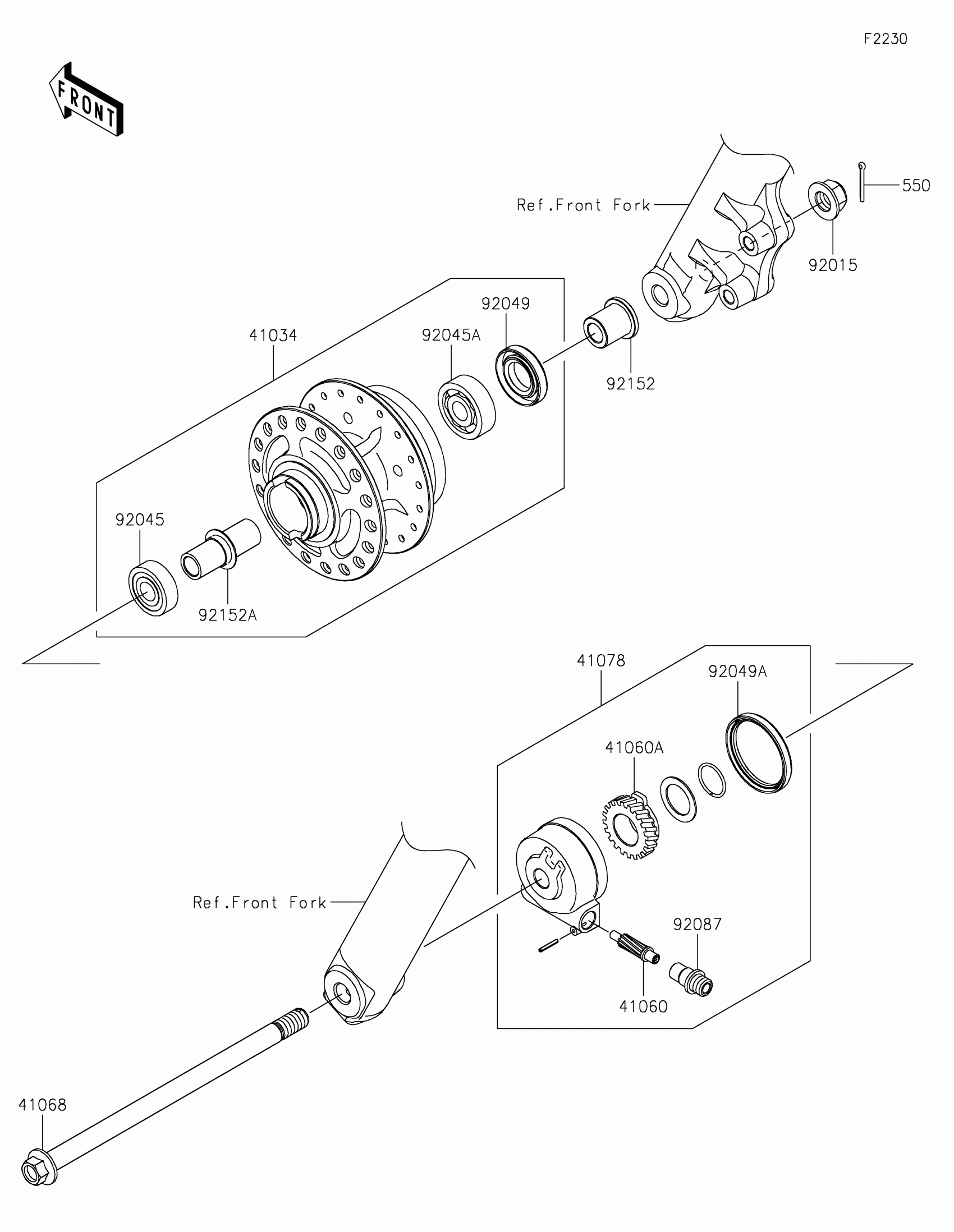

Kawasaki W175 SE Front Hub Diagram

Description

Price

41034

DRUM-ASSY,FR BRAKE

41034-0590

$460.23

41060

GEAR-METER SCREW,9T

41060-0016

$21.80

41060A

GEAR-METER SCREW,23T

41060-0017

$21.80

41068

AXLE,12X217

41068-0625

$30.34

41078

CASE-ASSY-METER GEAR

41078-0018

$82.75

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92045

BEARING-BALL,#6301DUC3E

92045-0714

$15.08

92045A

BEARING-BALL,601B6201UU

92045-0747

$26.08

92049

SEAL-OIL,20X37X6.5

92049-0113

$12.29

92049A

SEAL-OIL,42X50X6

92049-0727

$19.32

92087

BUSHING-METER GEAR

92087-1065

$1.10

92152

COLLAR

92152-2372

$14.43

92152A

COLLAR,12.1X17X50

92152-2373

$12.32

550

PIN-COTTER,2.5X20

550AA2520

$1.36
