Description

Price

41080

DISC,FR

41080-0683

$394.69

43044

HOLDER-COMP-CALIPER

43044-1112

$118.22

43045

SHAFT-CALIPER

43045-1010

$20.77

43045A

SHAFT-CALIPER

43045-1052

$17.58

43048

PISTON-CALIPER

43048-1068

$81.86

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER-BRAKE

43056-0004

$13.48

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR,BLACK

43080-0154-25S

$385.27

43082

PAD-ASSY-BRAKE

43082-0128

$47.06

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92015

NUT

92015-1740

$6.26

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,HANGER

92043-1416

$18.57

92144

SPRING,PAD

92144-1847

$30.33

92154

BOLT,FLANGED,8X36

92154-0334

$4.72

92154A

BOLT,SOCKET,8X30

92154-0844

$4.10

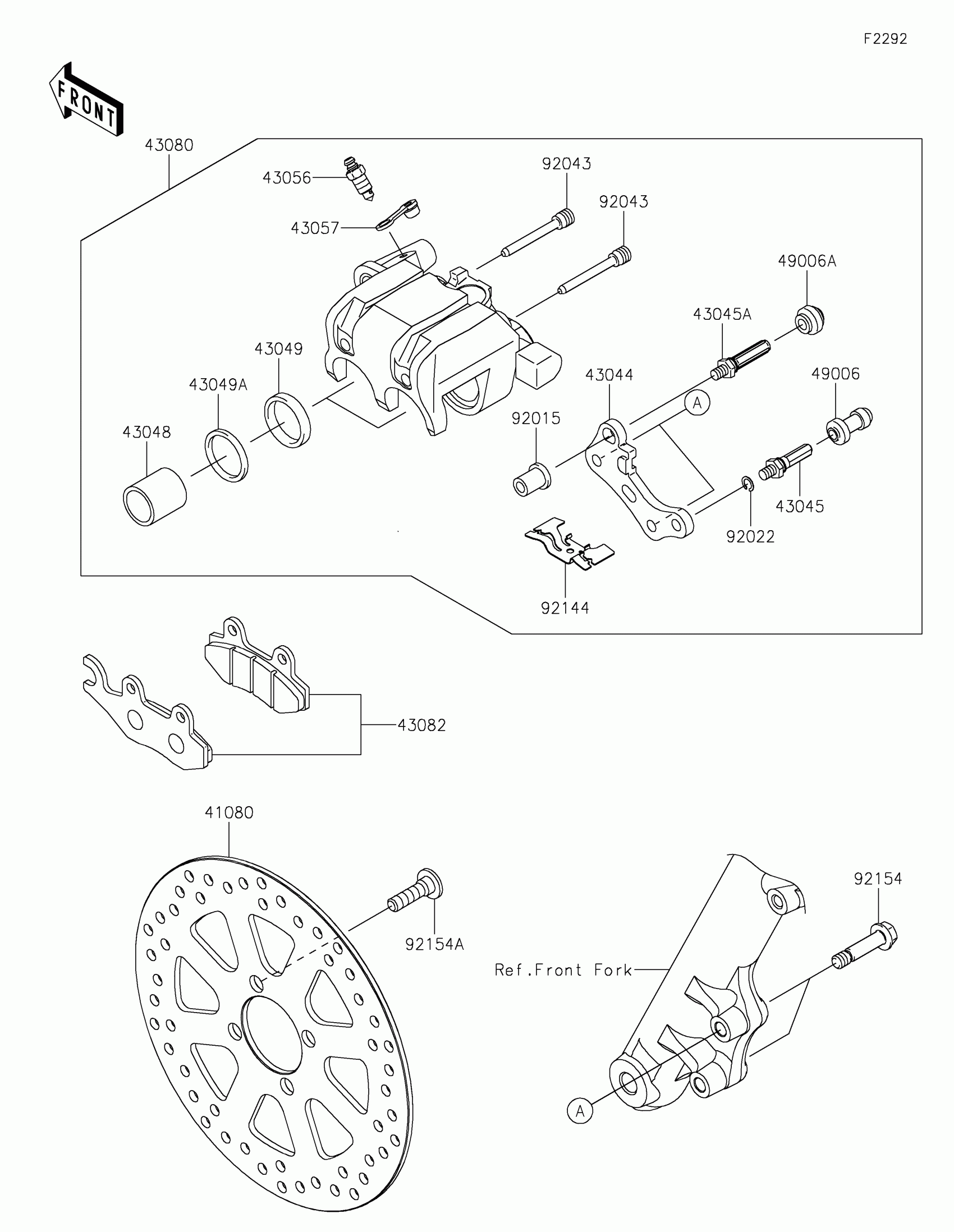

Kawasaki W175 SE Front Brake Diagram

DISC,FR

HOLDER-COMP-CALIPER

SHAFT-CALIPER

SHAFT-CALIPER

PISTON-CALIPER

PACKING,PISTON SEAL

PACKING,PISTON SEAL

BREATHER-BRAKE

CAP-BREATHER

CALIPER-SUB-ASSY,FR,BLACK

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

NUT

WASHER,WAVE

PIN,HANGER

SPRING,PAD

BOLT,FLANGED,8X36

BOLT,SOCKET,8X30
