2019 Kawasaki W175 SE Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2019 Kawasaki W175 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

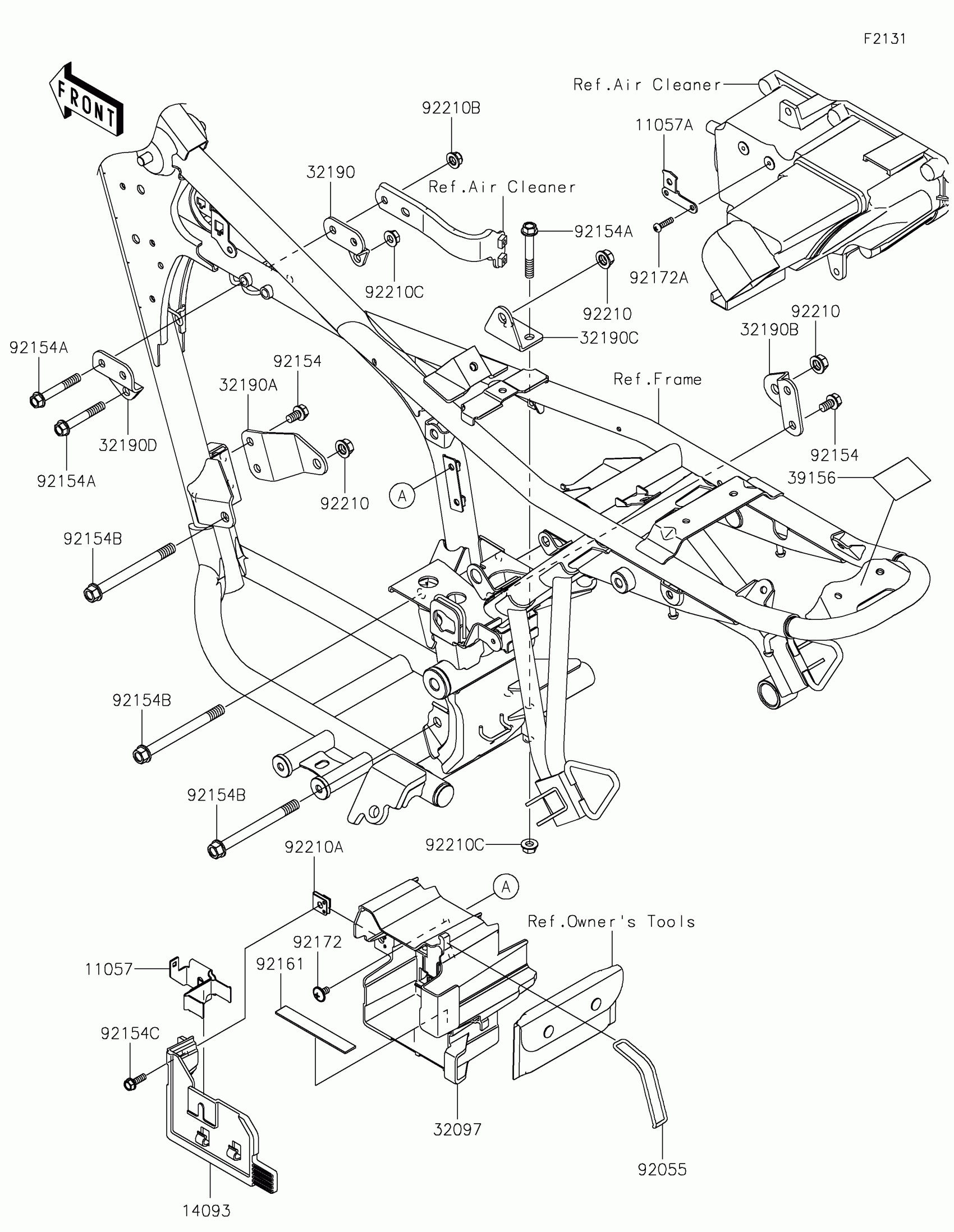

2019 Kawasaki W175 SE Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,STARTER

11057-1062

1
Out of stock

11057A

BRACKET,FLASHER

11057-1232

1
Out of stock

14093

COVER,BATTERY

14093-0632

1
Out of stock

32097

CASE-BATTERY

32097-0047

1
Out of stock

32190

BRACKET-ENGINE,HEAD,RH

32190-0761

1
Out of stock

32190A

BRACKET-ENGINE,RH,FR

32190-0762

1
Out of stock

32190B

BRACKET-ENGINE,RH,RR,UPP

32190-0763

1
Out of stock

32190C

BRACKET-ENGINE,RH,RR,LWR

32190-0764

1
Out of stock

32190D

BRACKET-ENGINE,HEAD,LH

32190-0777

1
Out of stock

39156

PAD,50X35X0.21

39156-2311

1
Out of stock

92055

RING-O,59.4X3.1

92055-0880

1
Out of stock

92154

BOLT,FLANGED,8X14

92154-2780

1
Out of stock

92154A

BOLT,FLANGED,8X55

92154-2782

1
Out of stock

92154B

BOLT,FLANGED,10X110

92154-2783

1
Out of stock

92154C

BOLT,FLANGED,6X18

92154-3752

1
Out of stock

92161

DAMPER,15X100X2

92161-2117

1
Out of stock

92172

SCREW,CROSS,6X12

92172-1217

1
Out of stock

92172A

SCREW,CROSS,5X20

92172-1218

1
Out of stock

92210

NUT,10MM

92210-1580

1
Out of stock

92210A

NUT,CLAMP,6MM

92210-1598

1
Out of stock

92210B

NUT,8MM,M=8.5

92210-1649

1
Out of stock

92210C

NUT,8MM,M=7.5

92210-1650

1
Out of stock
