2019 Kawasaki W175 SE Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2019 Kawasaki W175 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

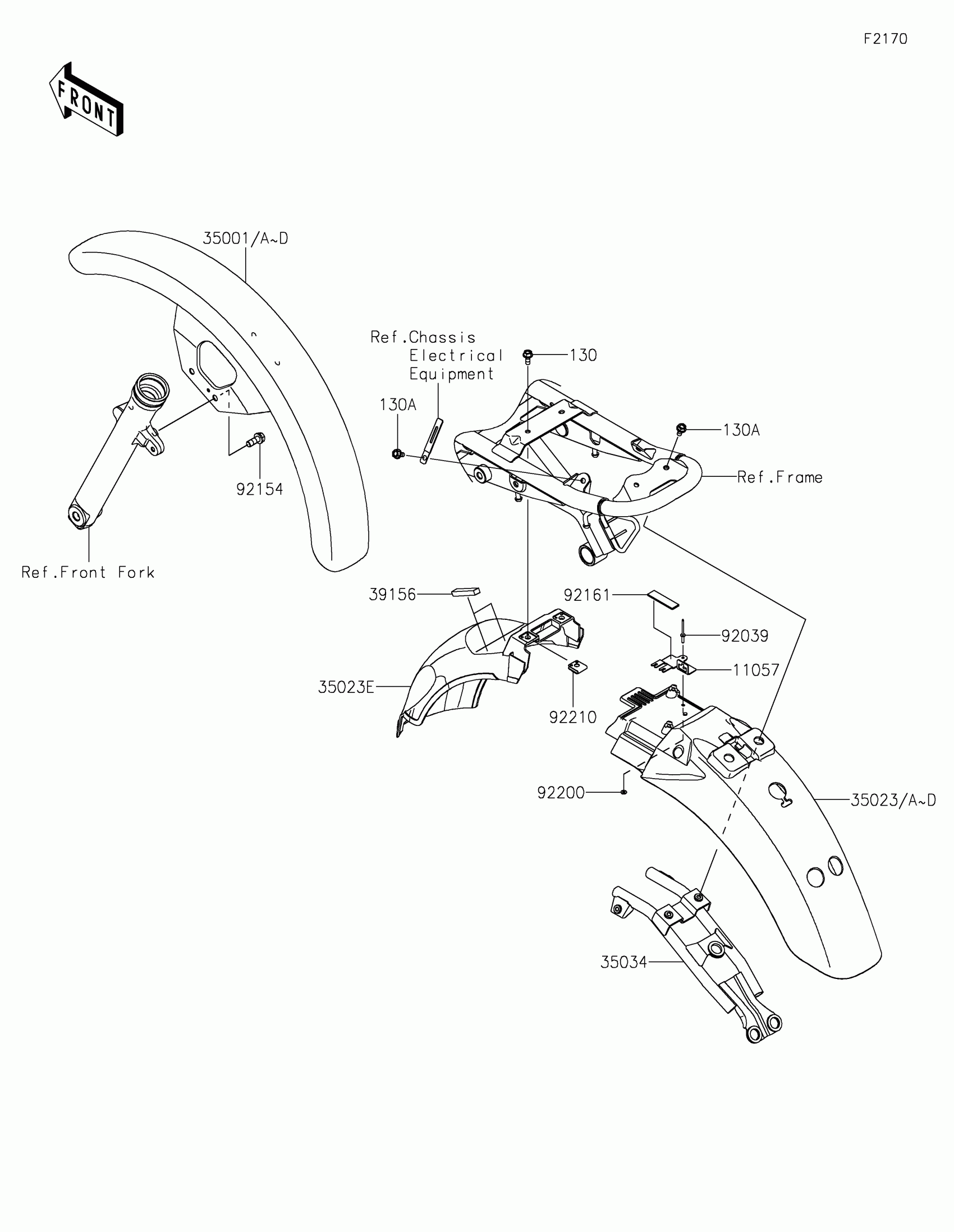

2019 Kawasaki W175 SE Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,RR FENDER

11057-1211

1
Out of stock

35001C

FENDER-ASSY-FRONT,P.C.WHITE

35001-0069-667

1
Out of stock

35023C

FENDER-REAR,RR,P.C.WHITE

35023-0433-667

1
Out of stock

35023E

FENDER-REAR,FR

35023-0434

1
Out of stock

35034

REINFORCE

35034-0600

1
Out of stock

39156

PAD,10X50X7

39156-2362

1
Out of stock

92039

RIVET

92039-1231

1
Out of stock

92154

BOLT,FLANGED,8X20

92154-2777

1
Out of stock

92161

DAMPER,13X50X2

92161-2118

1
Out of stock

92200

WASHER,3.5X8X1

92200-1251

1
Out of stock

92210

NUT,CLAMP,6MM

92210-1598

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130A

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock
