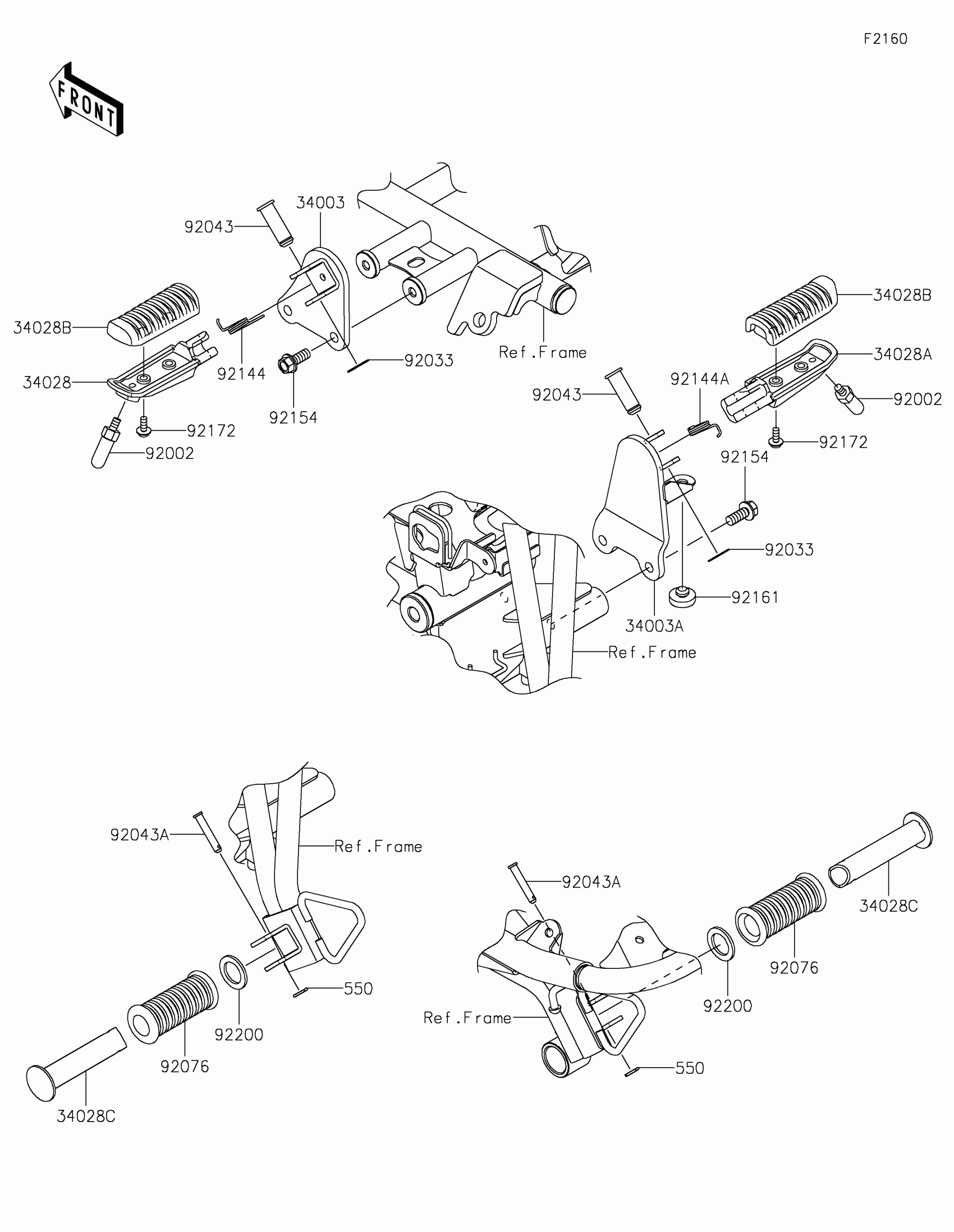

Kawasaki W175 SE Footrests Diagram

Description

Price

34003

HOLDER-STEP,LH

34003-0176

$48.66

34003A

HOLDER-STEP,RH

34003-0177

$74.11

34028

STEP,FR,LH

34028-0035

$7.94

34028A

STEP,FR,RH

34028-0036

$8.47

34028B

STEP,FR,RUBBER

34028-0056

Unavailable

34028C

STEP,RR

34028-0368

$27.87

92002

BOLT,BANK SENSOR

92002-1995

$14.23

92033

RING-SNAP,10MM

92033-0742

$1.16

92043

PIN,12X37

92043-0025

$5.57

92043A

PIN,6X35

92043-0799

$0.95

92076

DAMPER

92076-020

$24.87

92144

SPRING,STEP RETURN

92144-1567

$6.51

92144A

SPRING,STEP RETURN

92144-1568

$6.51

92154

BOLT,FLANGED,8X20

92154-3766

$3.21

92161

DAMPER,8X22X6

92161-1996

$4.56

92172

SCREW,5X14

92172-0976

$3.94

92200

WASHER,20X30X2.3

92200-1928

$4.31

550

PIN-COTTER,2.0X15

550AA2015

$1.12
