Description

Price

13031

CRANKSHAFT-COMP,LH

13031-0876

$269.27

13031A

CRANKSHAFT-COMP

13031-0883

$626.96

13032

ROD-CONNECTING

13032-0765

$127.72

13034

BEARING-BIG END

13034-0025

$40.05

13035

PIN-CRANK

13035-0560

$43.23

13037

CRANKSHAFT,RH

13037-0911

$353.64

13041

BALANCER

13041-0560

$66.71

13097

GEAR-PRIMARY SPUR,21T

13097-0564

$121.64

13280

HOLDER,BALANCER

13280-1121

$7.82

59051

GEAR-SPUR,BALANCER

59051-0792

$108.50

59051A

GEAR-SPUR,BALANCER

59051-0823

$102.92

92015

NUT,16MM

92015-1465

$18.57

92022

WASHER,SPRING,14M/M

92022-1232

$2.28

92038

KEY,WOODRUFF

92038-001

$4.96

92038A

KEY,WOODRUFF

92038-3703

$6.33

92062

NOZZLE

92062-1053

$6.61

92066

PLUG

92066-1249

$4.65

92145

SPRING

92145-1195

$2.55

92145A

SPRING

92145-1196

$7.82

92200

WASHER

92200-1927

$8.12

92210

NUT,14MM

92210-1568

$3.21

480

CIRCLIP

480J4000

$6.57

510

WOODRUFF KEY

510A5100

$2.70

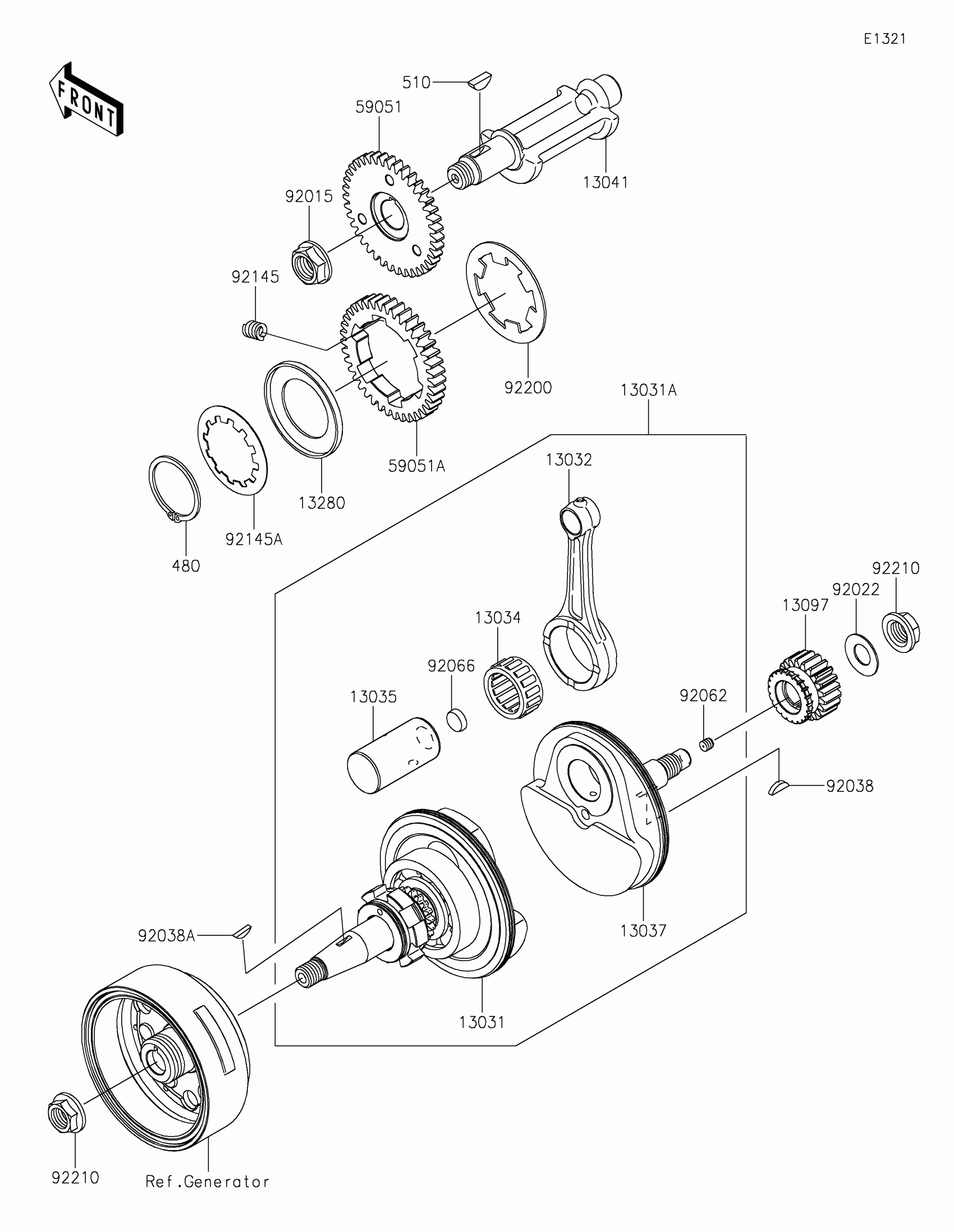

Kawasaki W175 SE Crankshaft Diagram

CRANKSHAFT-COMP,LH

CRANKSHAFT-COMP

ROD-CONNECTING

BEARING-BIG END

PIN-CRANK

CRANKSHAFT,RH

BALANCER

GEAR-PRIMARY SPUR,21T

HOLDER,BALANCER

GEAR-SPUR,BALANCER

GEAR-SPUR,BALANCER

NUT,16MM

WASHER,SPRING,14M/M

KEY,WOODRUFF

KEY,WOODRUFF

NOZZLE

PLUG

SPRING

SPRING

WASHER

NUT,14MM

CIRCLIP

WOODRUFF KEY
