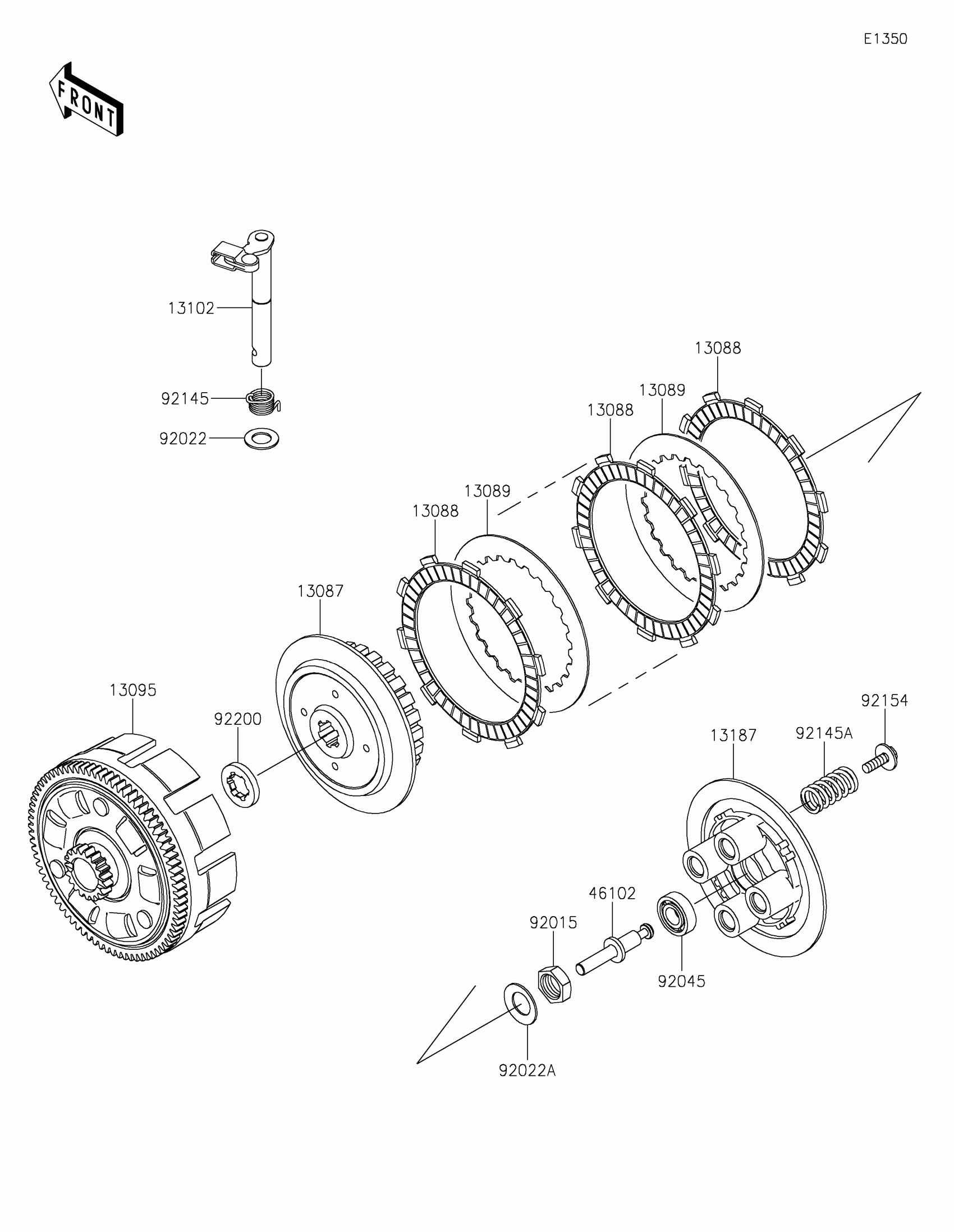

Kawasaki W175 SE Clutch Diagram

Description

Price

13087

HUB-CLUTCH

13087-0563

$80.60

13088

PLATE-FRICTION

13088-1068

$15.64

13089

PLATE-CLUTCH

13089-1076

$12.80

13095

HOUSING-COMP-CLUTCH

13095-0590

$342.57

13102

RELEASE-COMP-CLUTCH

13102-0042

$60.60

13187

PLATE-CLUTCH OPERATING

13187-1072

$53.36

46102

ROD

46102-0633

$28.86

92015

NUT,LOCK,16MM

92015-072

$7.34

92022

WASHER,12.5X22X1.2

92022-072

$3.92

92022A

WASHER,16.3X29X1.75

92022-1356

$7.34

92045

BEARING-BALL,12X28X8

92045-0830

$12.36

92145

SPRING,RELEASE SHAFT

92145-1799

$2.68

92145A

SPRING,CLUTCH

92145-1831

$7.38

92154

BOLT,WP,6X20

92154-2118

$5.33

92200

WASHER,20X30X4.5

92200-1910

$12.32
