Description

Price

11009

GASKET,FLOAT CHAMBER

11009-1676

$17.74

13280

HOLDER,JET

13280-0065

$19.26

13280A

HOLDER

13280-0901

$2.68

14075

CAP-ASSY

14075-0003

$16.28

15004

CARBURETOR-ASSY

15004-1000

$606.30

16016

PLUNGER

16016-0011

$58.93

16021

SCREW-THROTTLE STOP

16021-1126

$16.18

16031

FLOAT

16031-1055

$53.59

16032

PIN,FLOAT

16032-003

$6.57

16187

NEEDLE-JET

16187-0578

$26.41

43094

ADJUSTER

43094-0001

$21.89

49006

BOOT,STARTER PLUNGER

49006-1203

$14.10

92022

WASHER,ADJUST SCREW

92022-1187

$6.22

92037

CLAMP

92037-1712

$5.00

92055

RING-O,STARTER PLUNGER

92055-1252

$5.29

92055A

RING-O,AIR SCREW

92055-1658

$6.00

92063

JET-MAIN,#A95R

92063-1031

$14.34

92064

JET-PILOT

92064-0025

$39.54

92066

PLUG,DRAIN

92066-0050

$16.09

92081

SPRING,PILOT AIR SCREW

92081-1690

$6.16

92081A

SPRING,THROTTLE VALVE

92081-1691

$14.10

92145

SPRING

92145-1559

$2.42

92145A

SPRING

92145-1786

$1.93

92161

DAMPER

92161-0031

$0.67

92192

TUBE

92192-1065

$8.90

92192A

TUBE

92192-1066

$8.90

92192B

TUBE,TAP ASSY-CARBURETOR

92192-1780

$20.87

223

SCREW-PAN-WS-CROS,4X14

223AA0414

$1.52

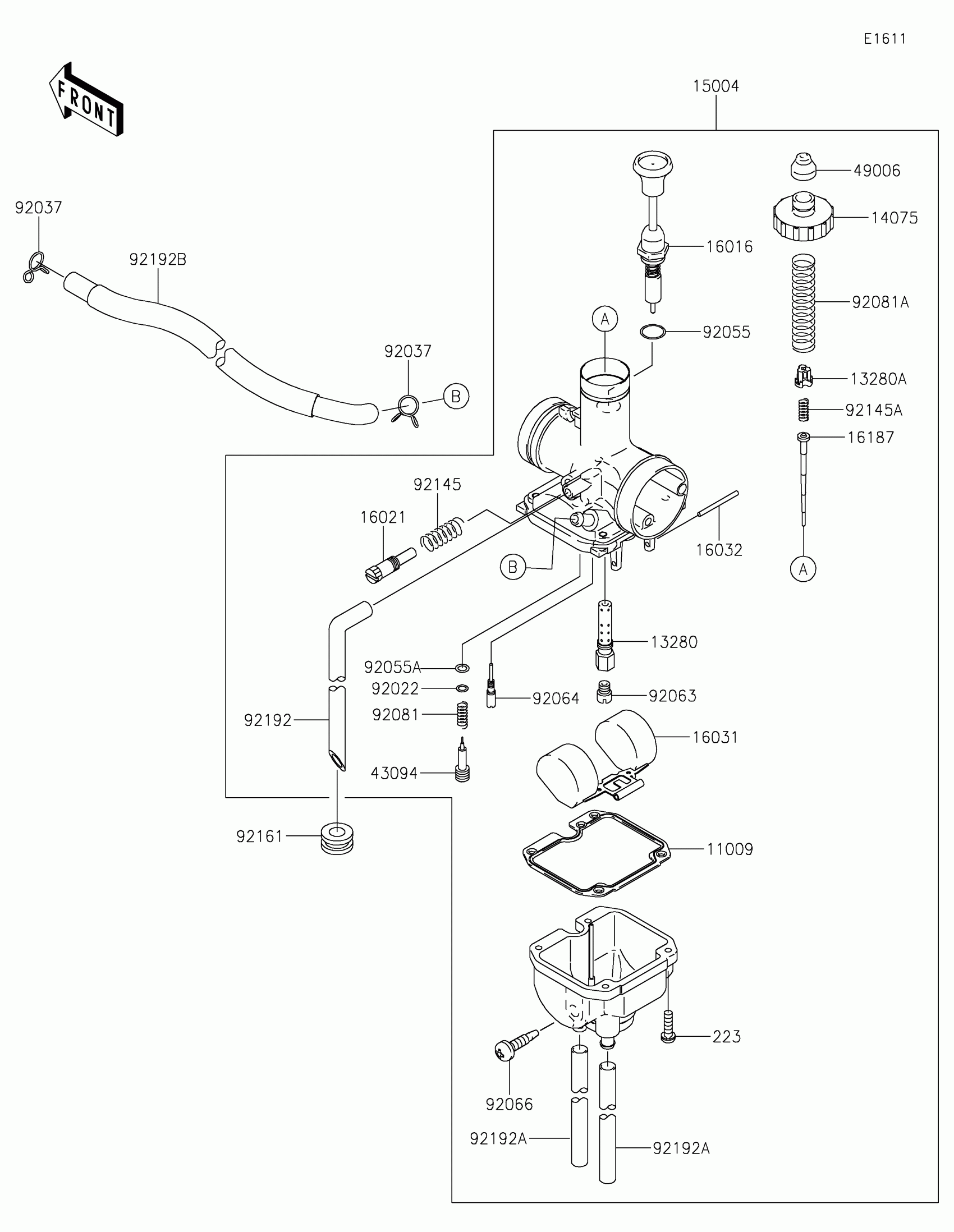

Kawasaki W175 SE Carburetor Diagram

GASKET,FLOAT CHAMBER

HOLDER,JET

HOLDER

CAP-ASSY

CARBURETOR-ASSY

PLUNGER

SCREW-THROTTLE STOP

FLOAT

PIN,FLOAT

NEEDLE-JET

ADJUSTER

BOOT,STARTER PLUNGER

WASHER,ADJUST SCREW

CLAMP

RING-O,STARTER PLUNGER

RING-O,AIR SCREW

JET-MAIN,#A95R

JET-PILOT

PLUG,DRAIN

SPRING,PILOT AIR SCREW

SPRING,THROTTLE VALVE

SPRING

SPRING

DAMPER

TUBE

TUBE

TUBE,TAP ASSY-CARBURETOR

SCREW-PAN-WS-CROS,4X14
