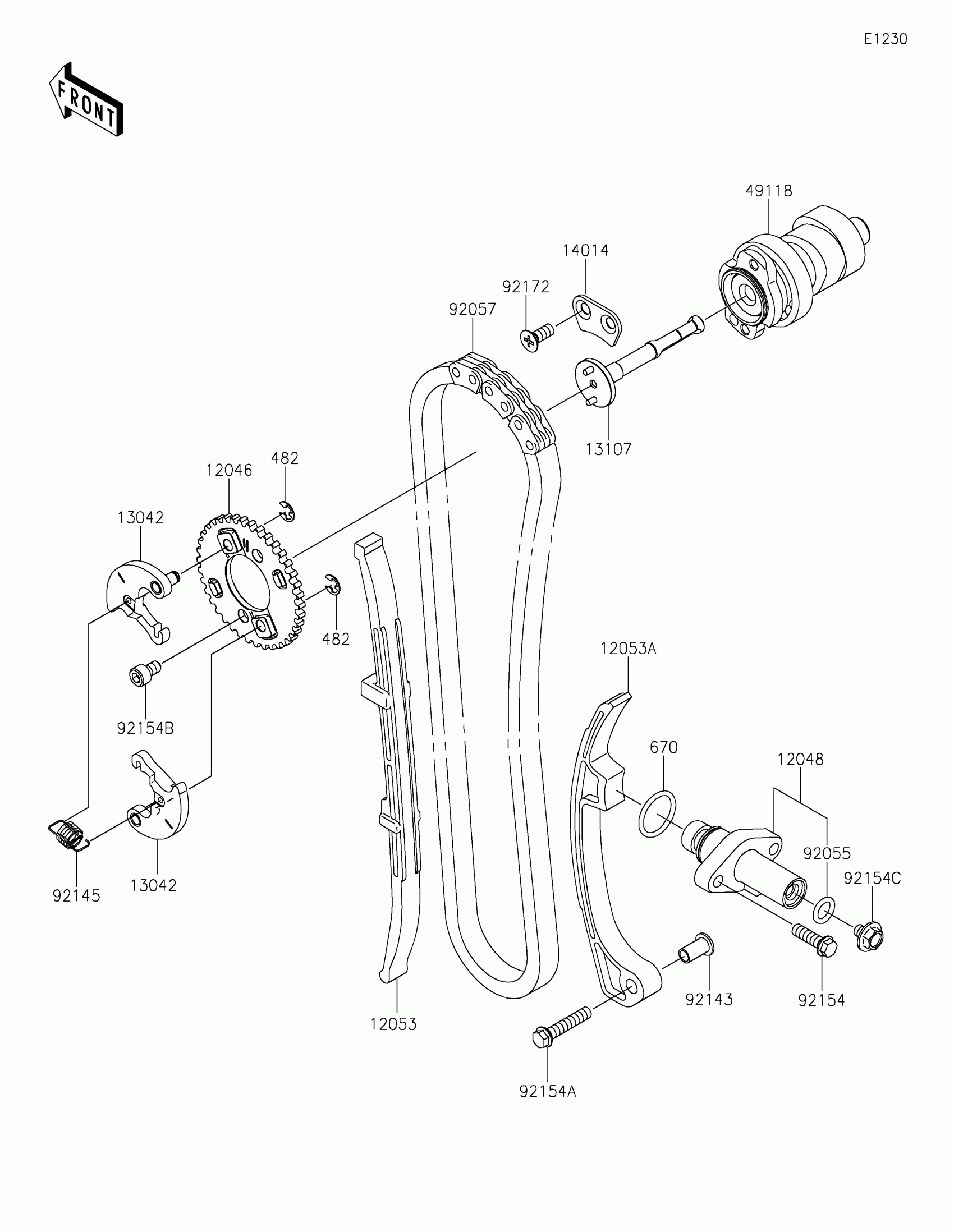

Kawasaki W175 SE Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,38T

12046-0595

$41.34

12048

TENSIONER-ASSY

12048-0114

$45.52

12053

GUIDE-CHAIN,FR

12053-0242

$53.05

12053A

GUIDE-CHAIN,RR

12053-0243

$44.12

13042

WEIGHT,DECOMP

13042-0772

$45.61

13107

SHAFT,DECOMP

13107-0028

$29.87

14014

PLATE-POSITION

14014-0009

$5.29

49118

CAMSHAFT-COMP

49118-0909

$302.02

92055

RING-O,2.4X9.8

92055-0915

$2.95

92057

CHAIN,CAM

92057-0728

$43.75

92143

COLLAR

92143-1857

$3.21

92145

SPRING

92145-0132

$2.71

92154

BOLT,FLANGED,6X20

92154-2757

$2.95

92154A

BOLT,FLANGED,6X30

92154-2758

$3.44

92154B

BOLT,SOCKET,6X10

92154-2759

$2.17

92154C

BOLT,FLANGED,6X8

92154-3793

$2.44

92172

SCREW,6X15

92172-1228

$1.94

482

CIRCLIP-TYPE-E,5MM

482J5000

$3.41

670

O RING

670E2021

$3.44
