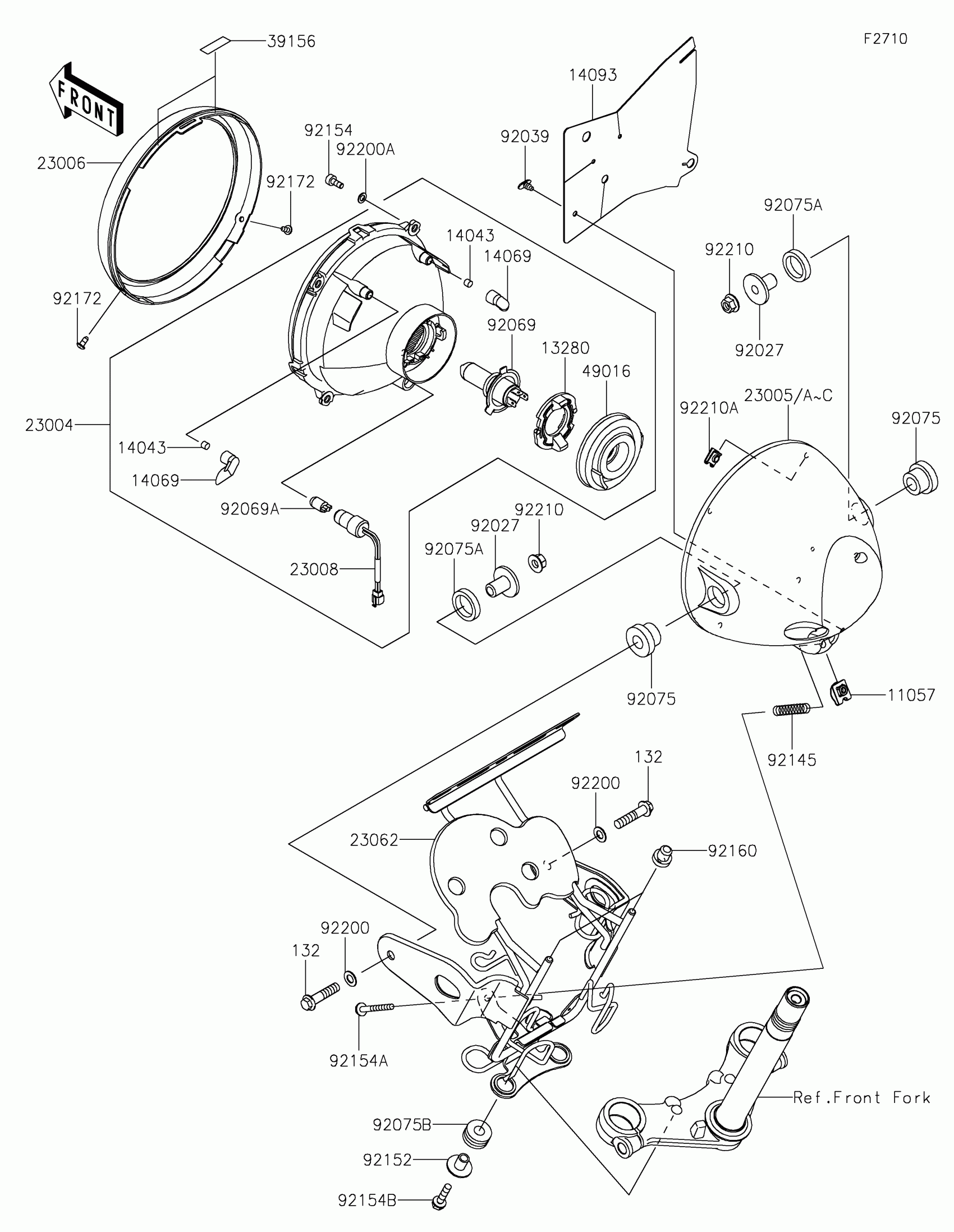

Kawasaki W175 (Indonesia Only) Headlight(s)(AJF/AJFA) Diagram

Description

Price

11057

BRACKET

11057-1065

$9.23

13280

HOLDER

13280-0902

$4.80

14043

FILTER

14043-0020

$2.89

14069

BREATHER

14069-0031

$3.18

14093

COVER

14093-0754

$6.07

23004

LAMP-HEAD

23004-0376

$149.45

23005B

BODY-COMP-HEAD LAMP,EBONY

23005-0050-6C

Unavailable

23006

RIM-LAMP

23006-0020

$66.52

23008

SOCKET-ASSY,POSITION

23008-0188

$15.06

23062

BRACKET-COMP,LICENSE PLATE

23062-1171

Unavailable

39156

PAD,30X10X0.21

39156-2352

$2.92

49016

COVER-SEAL

49016-0649

$3.68

92027

COLLAR,L=20

92027-1131

$8.94

92039

RIVET

92039-0792

$0.90

92069

BULB,12V 60/55W,H4

92069-0097

$18.29

92069A

BULB,12V 5W

92069-0098

$15.93

92075

DAMPER,HEAD LAMP FITTING

92075-1109

$6.22

92075A

DAMPER,HEAD LAMP FITTING

92075-1110

$5.00

92075B

DAMPER,10X24X12

92075-1690

$5.00

92145

SPRING

92145-1788

$1.93

92152

COLLAR

92152-0697

$1.63

92154

BOLT,SOCKET,5X14

92154-2772

$2.17

92154A

BOLT,FLANGED,5X45

92154-2773

$3.74

92154B

BOLT,FLANGED,6X25

92154-2774

$3.21

92160

DAMPER

92160-1303

$0.77

92172

SCREW,CROS,4X9.5

92172-1208

$1.42

92200

WASHER,8.2X15X1

92200-0742

$1.63

92200A

WASHER,5.8X10X0.8

92200-1983

$2.70

92210

NUT,8MM

92210-0773

Unavailable

92210A

NUT,CLIP,5MM

92210-1666

$7.73

132

BOLT-FLANGED-SMALL,8X35

132BA0835

$4.76
