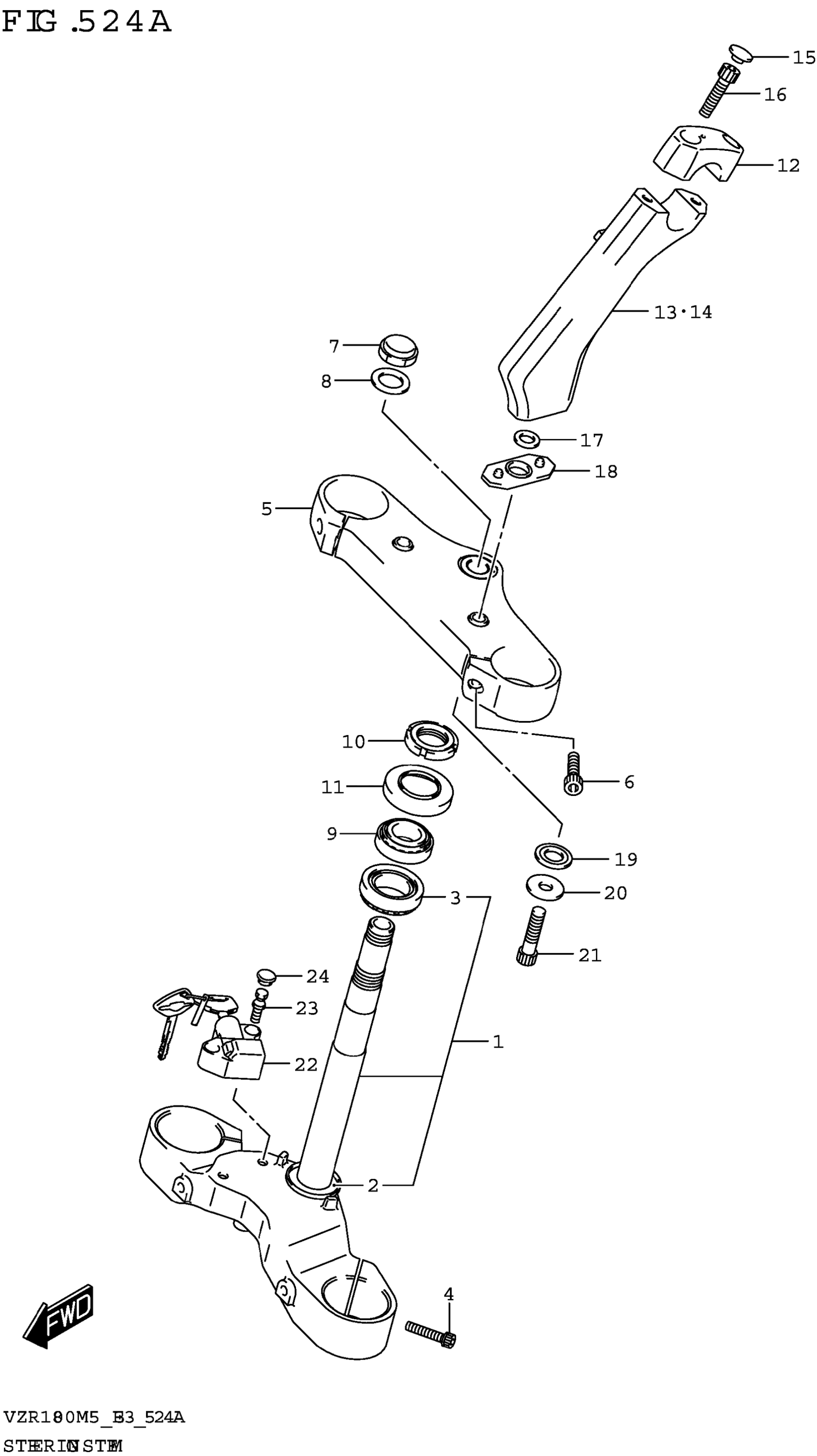

Suzuki VZR1800M4 (2025) STEERING STEM Diagram

#

Description
Price

1

BRACKET,UNDER

51410-48G00

Unavailable

2

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$8.65

3

.BEARING (30X55X17)

09265-30020

$40.65

4

BOLT (8X40)

51328-44G10

$4.07

5

BRACKET,UPPER

51311-48G20

$689.33

6

BOLT

51321-44G00

$6.28

7

NUT,CAP

51353-24B00

$34.62

8

WASHER (22.5X35.9X1.6)

51356-10D03

$8.47

9

BEARING (25X47X15)

09265-25038

$41.11

10

NUT,STEERING STEM

51631-31F00

$22.42

11

SEAL,DUST

51643-40503

$5.79

12

HOLDER,HANDLE

56211-48G10

$185.52

13

HOLDER,HANDLE RH

56224-48G20

$345.45

14

HOLDER,HANDLE LH

56225-48G20

$354.10

15

CAP (OD:14.5)

09250-06009

$3.13

16

BOLT (8X40)

51328-44G10

$4.07

17

WASHER

51354-48G00

$7.95

18

RUBBER,HANDLE HOLDER

56245-48G00

$10.62

19

RUBBER,HANDLE LOWER

56245-39G20

$10.62

20

WASHER

51355-48G00

$9.11

21

BOLT

51226-48G00

$14.77

22

LOCK SET,STEERING

51900-48810

Unavailable

23

SCREW,STEERING LOCK

51925-48G00

Unavailable

24

PLUG,STEERING LOCK

51926-48G00

$6.22
