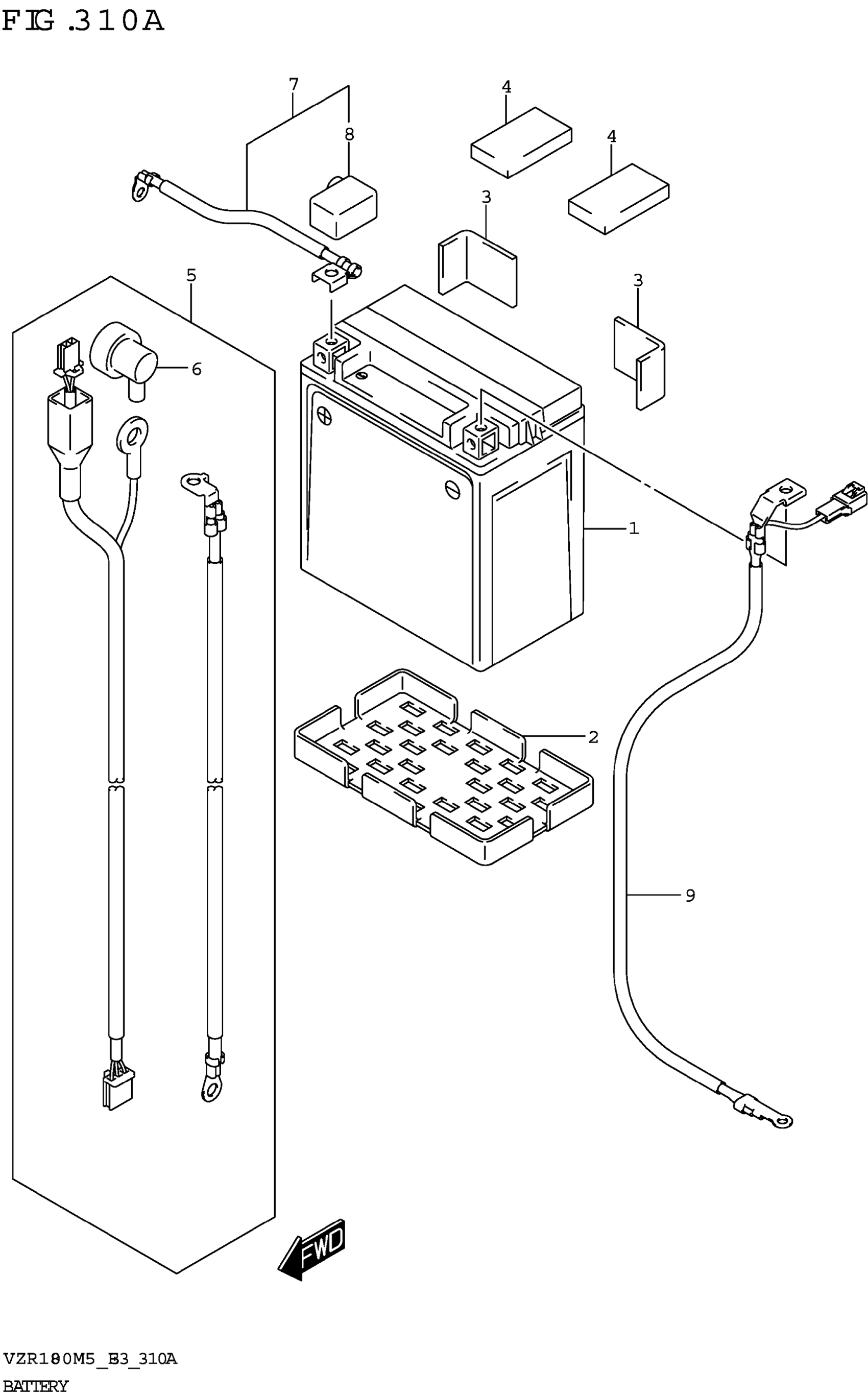

Suzuki VZR1800M4 (2025) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (FTZ16-BS,12V18A | )

33630-31G01

$275.53

2

PROTECTOR,BATTERY

33652-16G00

$13.50

3

CUSHION, REAR FENDER REAR This part replaces 33652-08420.

33651-37000

$4.09

4

CUSHION (30X50X3)

33652-36001

$1.68

5

WIRE,STARTER MOTOR LEAD

33810-48G02

$85.35

6

.CAP,OIL PRESSURE SWITCH

36618-31J00

Unavailable

7

WIRE,BATTERY PLUS LEAD

33820-48G01

$36.40

8

.CAP, BATTERY PLUS

33624-10D00

$7.12

9

WIRE,BATTERY MINUS LEAD

33860-48G10

Unavailable
