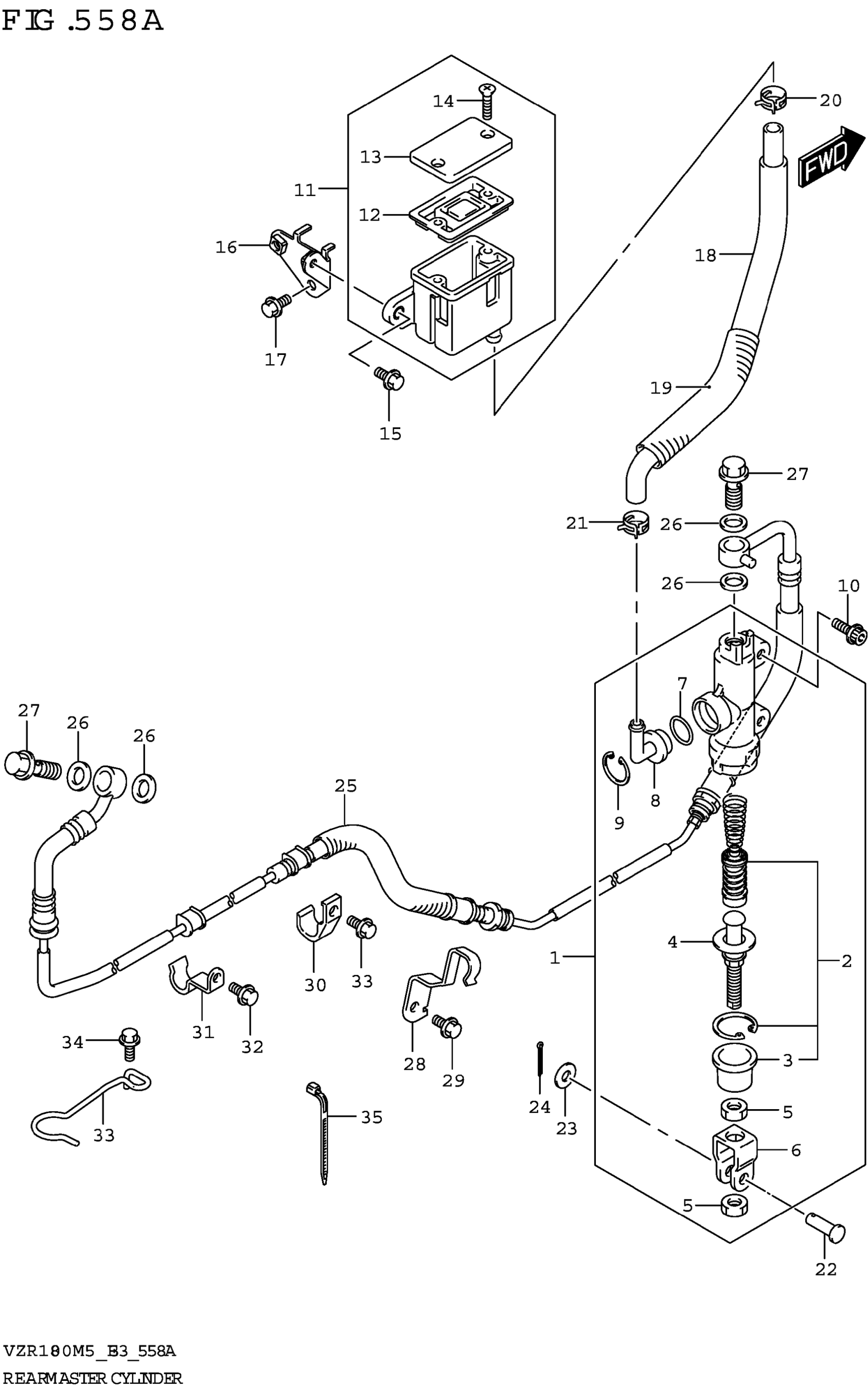

Suzuki VZR1800M4 (2025) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-48G00

$348.28

2

.PISTON/CUP SET

69600-34821

$24.34

3

.BOOT

69691-04A00

$5.83

4

.ROD,PUSH

69670-44B00

Unavailable

5

.NUT

69693-05A00

$1.86

6

.YOKE

69692-19A00

$19.03

7

.O-RING

69686-34200

$2.80

8

.CONNECTOR

69672-00B20

$6.42

9

.CIRCLIP

69674-00B20

$3.73

10

BOLT

07120-0625A

$2.50

11

TANK ASSY,REAR RESERVOIR

69740-48G00

$90.32

12

.DIAPHRAGM

59667-04700

$8.95

13

.CAP

59669-05D00

$15.78

14

.SCREW

69689-04A00

$2.15

15

BOLT

01547-0612A

$2.01

16

BRACKET,RR RESERVOIR TANK

69750-48G00

Unavailable

17

BOLT

01550-0612A

$1.97

18

HOSE,RR RESERVOIR TANK

69730-48G00

Unavailable

19

HEATSHIELD,RR RSVR TANK HOSE

69732-48G01

$19.20

20

CLIP (ID:13.2)

09401-13417

$2.24

21

CLIP (ID:12)

09401-12404

$2.37

22

PIN (6X18.2)

09200-06068

$3.71

23

WASHER

08322-0106A

$1.83

24

PIN

04111-2015A

$1.22

25

HOSE ASSY,REAR BRAKE

69400-48G21

$171.37

26

WASHER (10X15X1.5)

09161-10009

$1.83

27

UNION (10X1.25X22)

09360-10062

$5.81

28

CLAMP,RR BRAKE HOSE NO.3

69268-48G00

Unavailable

29

BOLT

01550-0612A

$1.97

30

CLAMP,RR BRAKE HOSE

69268-29G01

$19.97

31

CLAMP,RR BRAKE PIPE

69269-48G00

$14.27

32

BOLT

01547-0612A

$2.01

33

GUIDE,RR BRAKE HOSE

69243-48G00

Unavailable

34

BOLT

01550-0612A

$1.97

35

CLAMP (L:165)

09407-18402

$2.21
