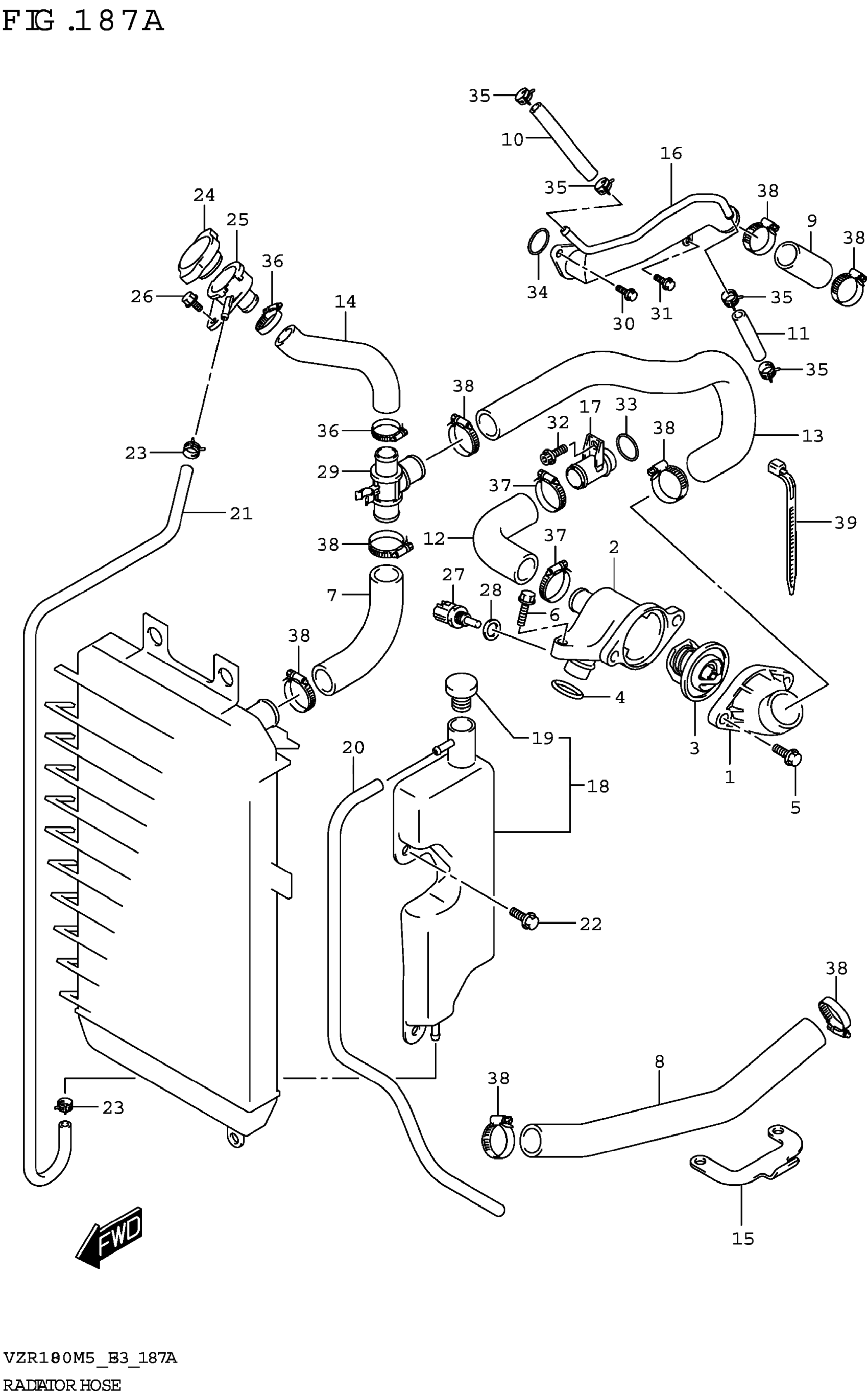

Suzuki VZR1800M4 (2025) RADIATOR HOSE Diagram

#

Description
Price

1

COVER,THERMOSTAT

17661-48G10

$33.67

2

CONNECTOR,THERMOSTAT INLET

17662-48G00

$110.55

3

THERMOSTAT,WATER

17670-06G51

$23.59

4

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.26

5

BOLT

01547-0620A

$2.01

6

BOLT

01547-0625A

$2.01

7

HOSE,RADIATOR INLET

17851-48G00

$25.08

8

HOSE,RADIATOR OUTLET

17852-48G00

$49.30

9

HOSE,CYLINDER INLET

17853-48G00

$12.82

10

HOSE,WATER BYPASS UPPER

17854-48G00

$16.67

11

HOSE,WATER BYPASS LOWER

17855-48G00

$7.95

12

HOSE,REAR CYL HEAD OUTLET

17856-48G00

$18.23

13

HOSE,THERMOSTAT OUTLET

17857-48G10

$57.53

14

HOSE,CONDUCTION

17858-48G00

$20.42

15

BRACKET,HOSE GUIDE

17859-48G00

Unavailable

16

PIPE,CYL WATER INLET

17860-48G00

$196.77

17

UNION,CONNECTOR HOSE

17890-06G20

$13.59

18

TANK ASSY,RESERVOIR

17910-48G00

$84.73

19

.CAP,RESERVOIR TANK

17931-02FA0

$5.09

20

HOSE (5X9X2000)

09352-50901-00B

$34.43

21

HOSE,RSVR TANK INLET

17981-48G00

$27.17

22

BOLT (6X12)

09111-06085

$4.16

23

CLIP (ID:8.6)

09401-08411

$1.77

24

CAP,RADIATOR (1.1)

17730-08J00

$38.90

25

CONDUCTION,RDTR

17791-24D00

$69.02

26

BOLT

01550-0612A

$1.97

27

SENSOR, WATER TEMP

13650-10G00

$79.85

28

GASKET (12X17X1)

09168-12017

$1.97

29

JOINT,THREE WAY

17891-48G00

$12.83

30

BOLT (6X16)

09103-06274

$2.01

31

BOLT (6X12)

09103-06280

$3.30

32

BOLT

07130-0612A

$2.50

33

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.26

34

O-RING (D:2.4,ID:26.2)

09280-26005

$2.31

35

CLIP

09401-12414

$2.98

36

CLAMP

09402-28513

$6.31

37

CLAMP

09402-32512

$13.97

38

CLAMP

09402-38512

$10.73

39

CLAMP (L:235)

09407-25401

$4.21
