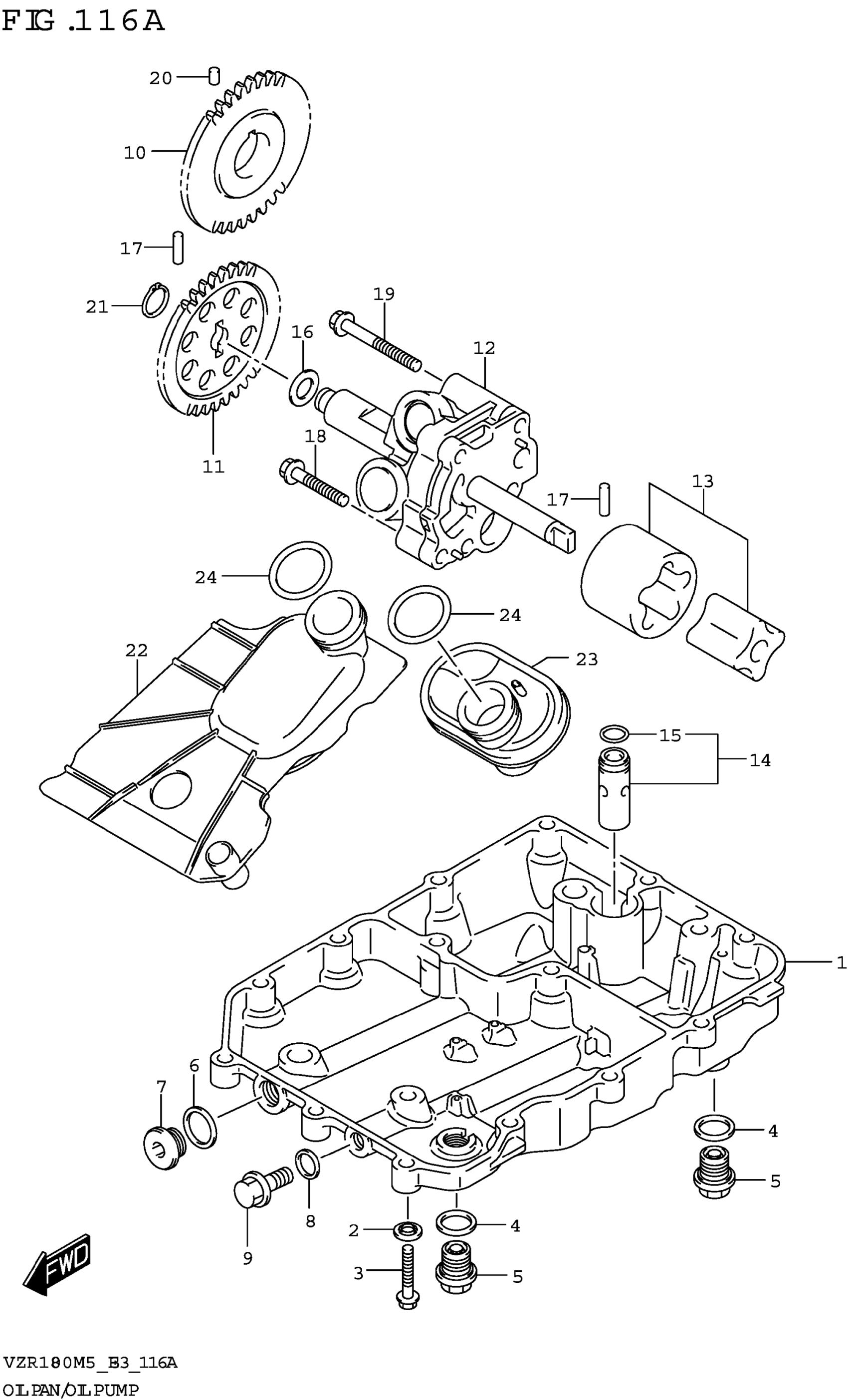

Suzuki VZR1800M4 (2025) OIL PAN/OIL PUMP Diagram

#

Description
Price

1

PAN,OIL

11511-48G01

$355.08

2

GASKET (5.8X13X1.2)

09168-06023

$2.01

3

BOLT

01547-0630A

$2.31

4

GASKET (13.8X18.8X4.8) | OIL DRAIN

09168-14002

$2.83

5

PLUG (14X20) | OIL DRAIN

09247-14036

$5.58

6

GASKET (16X22X2)

09168-16002

$1.89

7

PLUG (16X8)

09248-16012

$4.19

8

GASKET (10X14X3.6)

09168-10002

$1.96

9

PLUG (10X12)

09247-10008

$1.97

10

GEAR,OIL PUMP DRIVE (NT:40)

16321-48G00

Unavailable

11

GEAR,OIL PUMP DRIVEN (NT:36)

16331-48G00

Unavailable

12

PUMP ASSY,ENGINE OIL

16400-48G01

$288.72

13

ROTOR SET,OIL PUMP

16410-48G00

$71.33

14

VALVE ASSY,OIL RELIEF (7K)

16440-24F00

$45.80

15

.O-RING (D:1.9,ID:13)

09280-13004

$2.19

16

SHIM (10X18X0.5)

09181-10158

$1.97

17

PIN (4X15.8)

09261-04009

$1.50

18

BOLT

01547-0635A

$2.31

19

.BOLT

01547-0655A

$2.43

20

PIN

04221-04069

$2.30

21

CIRCLIP

08331-31109

$1.77

22

STRAINER,ENGINE OIL FR

16530-48G01

$47.42

23

STRAINER,ENG OIL RR

16520-48G01

$37.10

24

.O-RING (D:3.7,ID:21.7)

09280-22016

$5.04
