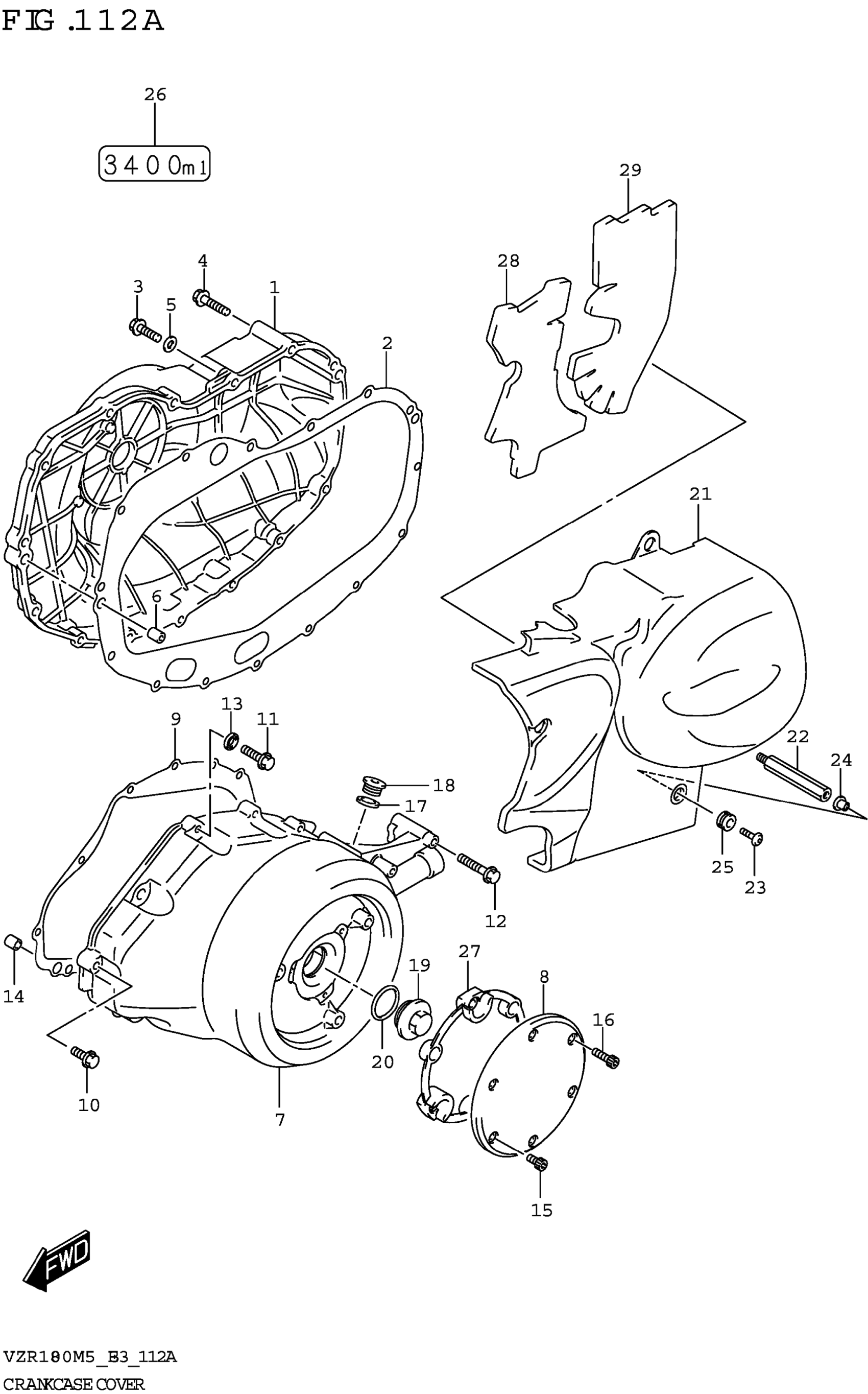

Suzuki VZR1800M4 (2025) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11341-48G00

Unavailable

2

.GASKET,CL COVER

11482-48G00

$24.68

3

BOLT (6X30)

09103-06213

$2.47

4

BOLT (6X60)

09103-06261

$3.16

5

GASKET (5.8X13X1.2)

09168-06023

$2.35

6

PIN

04211-09189

$1.65

7

COVER,MAGNETO

11351-48G00

$1,384.68

8

CAP,MAGNETO COVER

11352-48G00

$195.10

9

.GASKET,MAGNETO COVER (5.8X13 | .2)

11483-48G00

$18.50

10

BOLT (6X30)

09103-06213

$2.47

11

BOLT (6X50)

09103-06238

$2.66

12

BOLT (6X70)

09103-06225

$3.16

13

GASKET (5.8X13X1.2)

09168-06023

$2.35

14

PIN (8.5X18X2.3)

04211-09149

$1.65

15

BOLT (6X10) This part replaces 09106-06068.

09106-06076

$3.29

16

BOLT (6X20)

09106-06123

$2.42

17

GASKET (16X22X2)

09168-16002

$1.91

18

PLUG (16X8)

09248-16012

$4.64

19

CAP

09259-30005

$9.73

20

.O-RING (D:3.1,ID:26.4)

09280-26006

$2.76

21

COVER,SECONDARY DRIVE UNIT

11361-48G20

$843.10

22

BOLT,SEC DRIVE UNIT COVER

11372-48G00

$15.75

23

SCREW (6X20)

09139-06028

$3.70

24

WASHER (6.3X17X1.6)

09169-06062

$2.50

25

CUSHION (9X18X10)

09320-09501

$2.03

26

NOTE,ENGINE OIL

68322-48G00

Unavailable

27

DAMPER,MAGNETO COVER CAP

11353-48G01

$23.95

28

DAMPER,SEC DRIVE UNIT COVER

11363-48G20

$20.13

29

DAMPER,SEC DRIVE UNIT COVER

11364-48G00

$35.03
