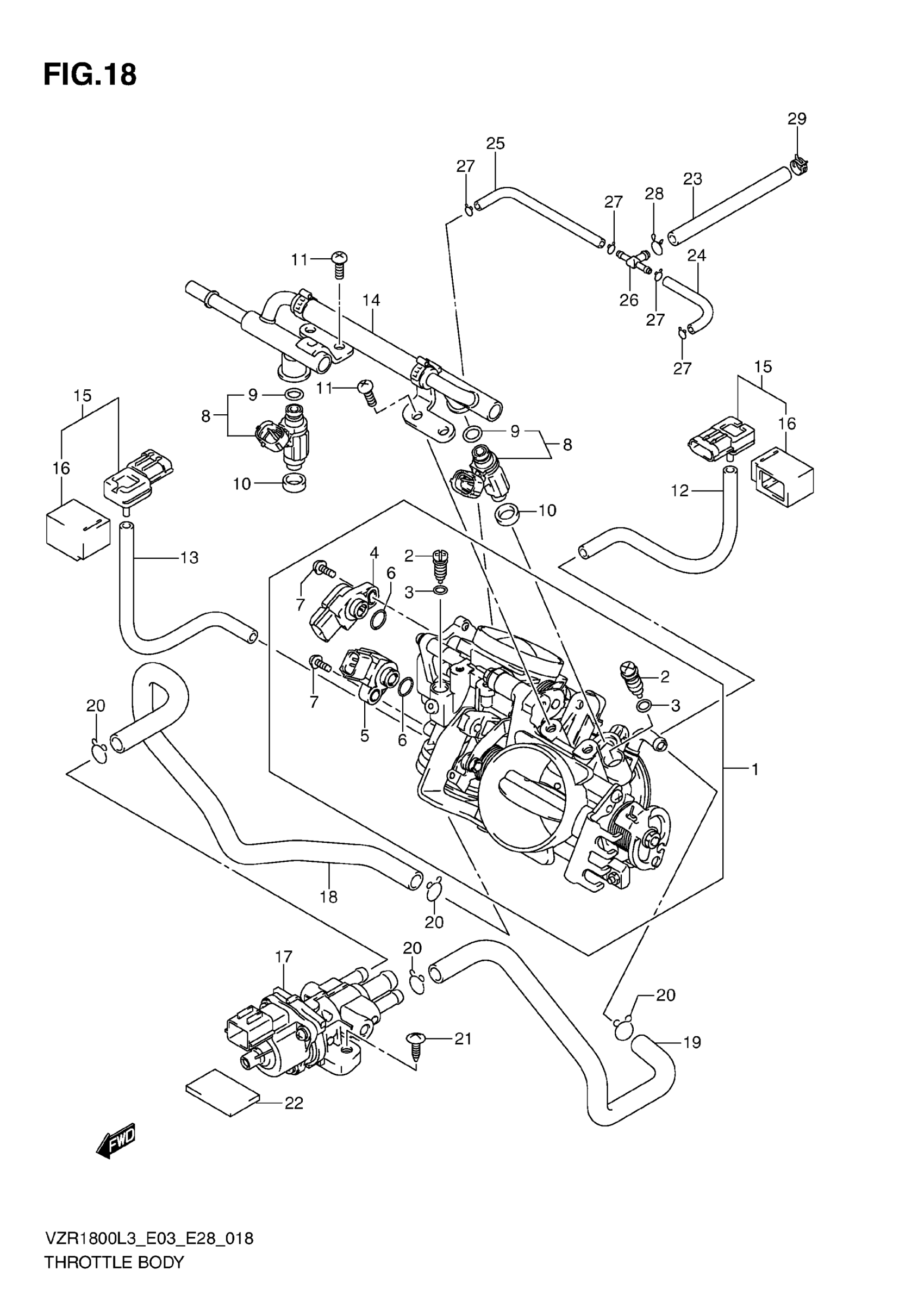

Suzuki VZR1800L3 (2013) THROTTLE BODY (VZR1800ZL3 E33) Diagram

#

Description
Price

1

BODY ASSY,THROTTLE This part replaces 13405-48G30.

13405-48G31

$1,627.67

2

ADJUSTER

13269-48G00

Unavailable

3

O RING

13521-29FA0

Unavailable

4

SENSOR ASSY

13580-29G00

$119.65

5

SENSOR ASSY

13580-48G00

$203.42

6

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

7

SCREW

13605-02F00

$3.71

8

INJECTOR ASSY

15710-48G00

$269.36

9

.O-RING

15717-58B00

$9.95

10

SEAL

15722-29G00

$10.93

11

SCREW

13602-06148

$3.62

12

HOSE This part replaces 13683-48G00.

13683-48G01

$31.87

13

HOSE This part replaces 13683-48G10.

13683-48G11

$41.20

14

PIPE ASSY, DELIVERY

15730-48G01

$306.43

15

SENSOR, PRESSURE

15630-29G10

$273.45

16

COVER

15625-29G00

$12.40

17

VALVE, ISC

18117-48G00

$342.50

18

HOSE,ISC VALVE,R This part replaces 13697-48G00.

13697-48G01

$19.78

19

HOSE,ISC VALVE,L This part replaces 13698-48G00.

13698-48G01

$14.05

20

CLIP

09401-13102

$3.15

21

SCREW

03111-0625A

Unavailable

22

CUSHION

44612-13600

$4.65

23

.HOSE

13680-48G01

$44.97

24

.HOSE

13683-48G21

$63.90

25

.HOSE

13683-48G31

Unavailable

26

NIPPLE

13685-04F10

$11.07

27

CLIP

09401-06101

$2.03

28

CLIP This part replaces 09401-10410.

09401-10401

$1.49

29

CLIP (ID:9.4,H:8)

09401-09403

$2.03
