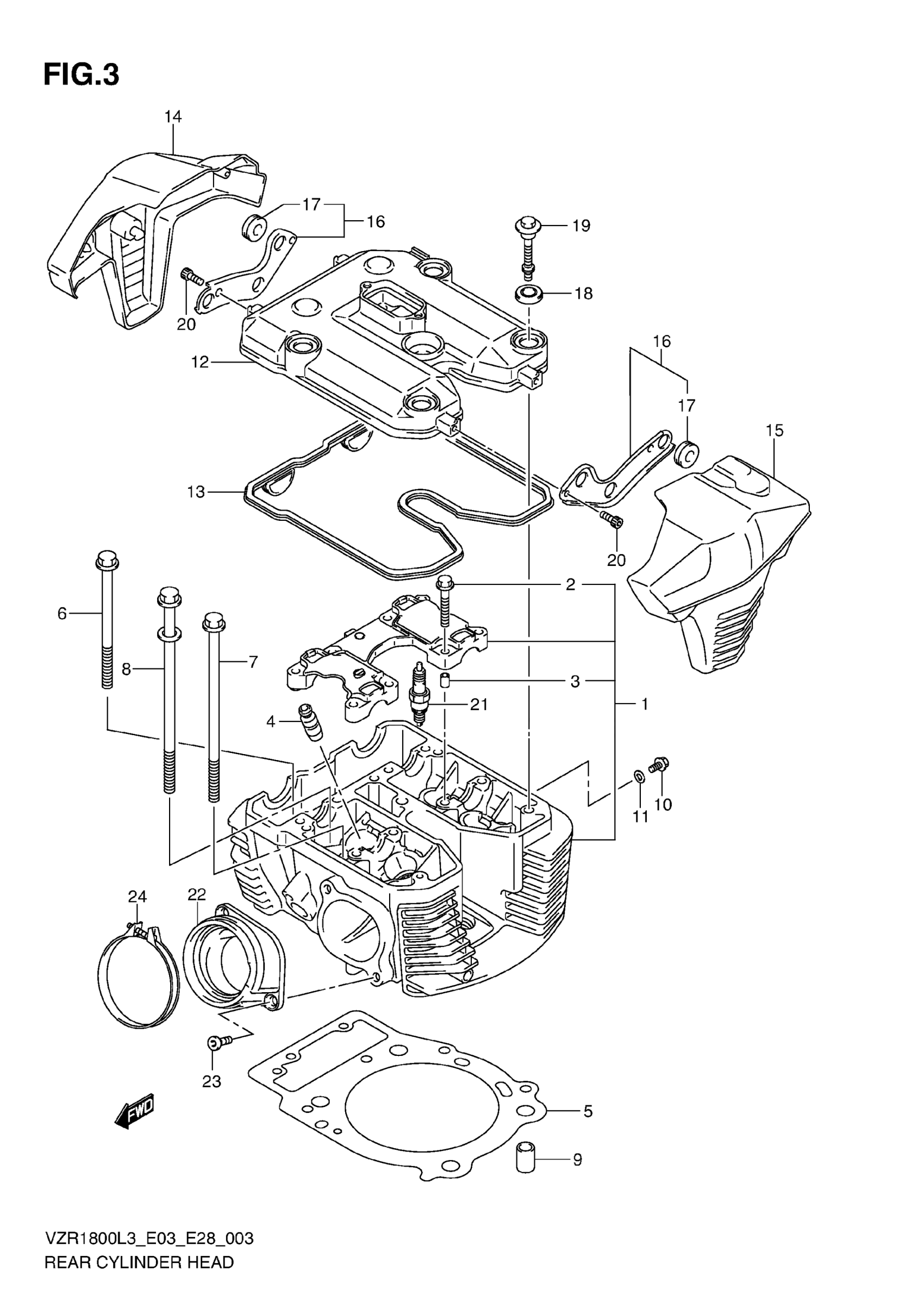

Suzuki VZR1800L3 (2013) REAR CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR

11103-48G10

Unavailable

2

BOLT (6X39)

09103-06026

$1.84

3

PIN (8X11)

09206-08001

$1.77

4

GUIDE, VALVE (OS 0.3) | OPT

11115-65J00-001

$36.07

5

GASKET

11142-48G00

$61.08

6

BOLT (8X140)

09103-08305

$17.30

7

BOLT (8X180)

09103-08415

$12.60

8

BOLT (10X19)

09103-10396

$28.57

9

PIN

04211-13189

$2.19

10

BOLT (6X12)

09103-06222

$2.28

11

GASKET (5.8X13X1.2)

09168-06023

$2.01

12

COVER, CYLINDER HEAD

11170-48G00

Unavailable

13

GASKET

11173-48G00

$34.90

14

CAP, HEAD COVER NO.1

11174-48G00

$138.98

15

CAP, HEAD COVER NO.2

11175-48G00

$136.40

16

BRACKET,HEAD COVER CAP This part replaces 11180-48G00.

11180-48G01

$10.97

17

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.91

18

CUSHION,HEAD COVER BOLT

11192-13E00

$3.97

19

BOLT (6X52)

09111-06091

$24.82

20

BOLT

07130-0612A

$2.50

21

SPARK PLUG (NGK, CR8EK)

09482-00412

$9.72

21

SPARK PLUG (DENSO, U24ETR)

09482-00413

$14.37

21

SPARK PLUG (NGK, CR9EK) | OPT

09482-00410

$10.60

21

SPARK PLUG (DENSO,U27ESR-N) | OPT This part replaces 09482-00411.

09482-00459

$5.58

21

SPARK PLUG (NGK, CR7EK) | OPT

09482-00414

$13.63

21

SPARK PLUG (DENSO, U22ETR) | OPT

09482-00415

Unavailable

22

PIPE ASSY,INTAKE This part replaces 13101-48G00.

13101-48G01

$109.97

23

BOLT (6X20.5)

09120-06008

$2.88

24

CLAMP

13170-22H00

Unavailable
