Description

Price

1

PULLEY, CONTROLLER

11269-18G01

$28.78

2

CABLE, EXHAUST VALVE NO.1

11276-48G00

$55.23

3

CABLE, EXHAUST VALVE NO.2

11277-48G00

$55.23

4

PIPE, EXHAUST FR

14150-48G30

$309.93

5

COVER, EXH FR PIPE

14168-48G20

$122.58

6

GROMMET

14795-10FA0

$5.58

7

CLAMP

09402-57511

$13.30

8

PIPE, EXHAUST RR

14160-48G20

$367.98

9

COVER, EXH RR PIPE

14169-48G20

$115.65

10

GROMMET

14795-10FA0

$5.58

11

CLAMP

09402-67501

$38.88

12

GASKET

14181-10F00

$12.91

13

COVER, REAR UPPER

14260-48G00

$156.07

14

COVER, EXHAUST VALVE

14280-48G00

$24.95

15

MUFFLER, FR

14305-48G50-H01

$2,902.48

16

COVER, EXH FR

14170-48G40

Unavailable

17

COVER, EXH RR

14180-48G50

$421.08

18

SCREW (6X20)

09139-06028

$3.70

19

WASHER (6.5X20X1)

09160-06141

Unavailable

20

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

21

CUSHION

09320-08080

$9.45

22

CUSHION

09320-08081

$8.55

23

CLAMP

09402-67501

$38.88

24

CLAMP

09402-57511

$13.30

25

.BOLT

07120-0610A

$2.30

26

BODY, MUFFLER RR This part replaces 14340-48G30.

14340-48G30-H01

Unavailable

27

COVER, UP MUFFLER FR

14344-48G20

$305.05

28

GROMMET

14795-10FA0

$5.58

29

BRACKET,MUF SPRT

14410-48G00

$245.72

30

CLAMP

14459-48G00

Unavailable

31

CONNECTOR

14771-42F31

$27.33

32

.PROTECTOR, FRONT This part replaces 14780-48G00.

14780-48G01

$37.48

33

PROTECTOR, LOWER This part replaces 14790-48G00.

14790-48G10

$31.43

34

BOLT (8X35)

09103-08365

$3.91

35

BOLT (6X12)

09106-06075

$2.48

36

BOLT (8X25)

09106-08165

$4.03

37

SCREW (6X10)

09139-06122

$3.04

38

WASHER (8.5X33X1.5)

09160-08146

$2.60

39

SPACER (8.6X12X27.1)

09180-08156

$6.70

40

CUSHION

09320-12049

$10.68

41

BOLT,STUD

01411-0820A

Unavailable

42

BOLT

14425-48G00

$3.35

43

BOLT

14425-48G00

$3.35

44

BOLT

01550-0845A

$3.14

45

BOLT

07120-0516A

$2.28

46

NUT

08319-3108A

$2.32

47

NUT

08361-2508A

$1.97

48

SPACER

14458-06H00

$7.05

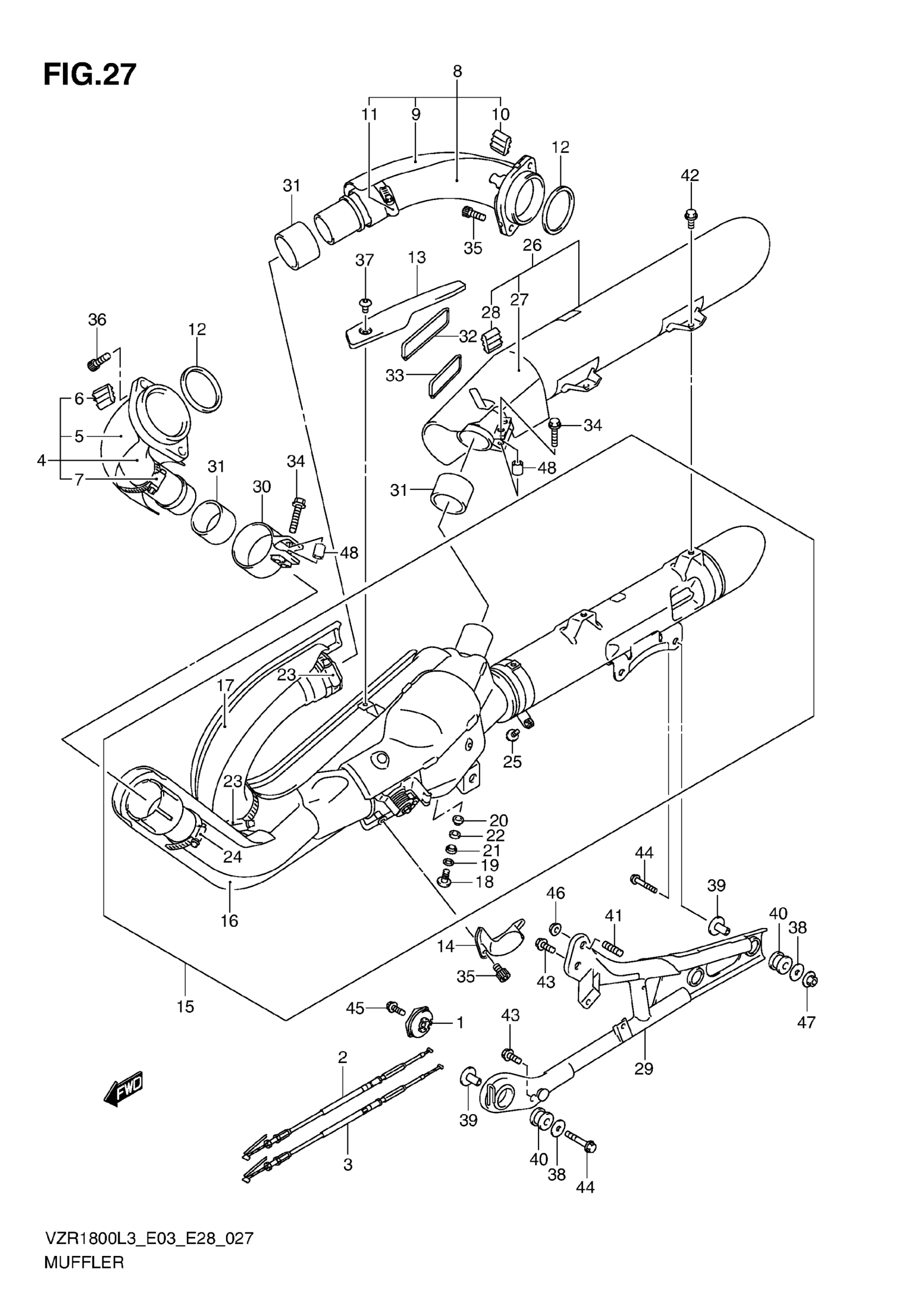

Suzuki VZR1800L3 (2013) MUFFLER (VZR1800L3 E33) Diagram

PULLEY, CONTROLLER

CABLE, EXHAUST VALVE NO.1

CABLE, EXHAUST VALVE NO.2

PIPE, EXHAUST FR

COVER, EXH FR PIPE

GROMMET

CLAMP

PIPE, EXHAUST RR

COVER, EXH RR PIPE

GROMMET

CLAMP

GASKET

COVER, REAR UPPER

COVER, EXHAUST VALVE

MUFFLER, FR

COVER, EXH FR

COVER, EXH RR

SCREW (6X20)

WASHER (6.5X20X1)

SPACER (6.2X8.4X10.9)

CUSHION

CUSHION

CLAMP

CLAMP

.BOLT

BODY, MUFFLER RR This part replaces 14340-48G30.

COVER, UP MUFFLER FR

GROMMET

BRACKET,MUF SPRT

CLAMP

CONNECTOR

.PROTECTOR, FRONT This part replaces 14780-48G00.

PROTECTOR, LOWER This part replaces 14790-48G00.

BOLT (8X35)

BOLT (6X12)

BOLT (8X25)

SCREW (6X10)

WASHER (8.5X33X1.5)

SPACER (8.6X12X27.1)

CUSHION

BOLT,STUD

BOLT

BOLT

BOLT

BOLT

NUT

NUT

SPACER
