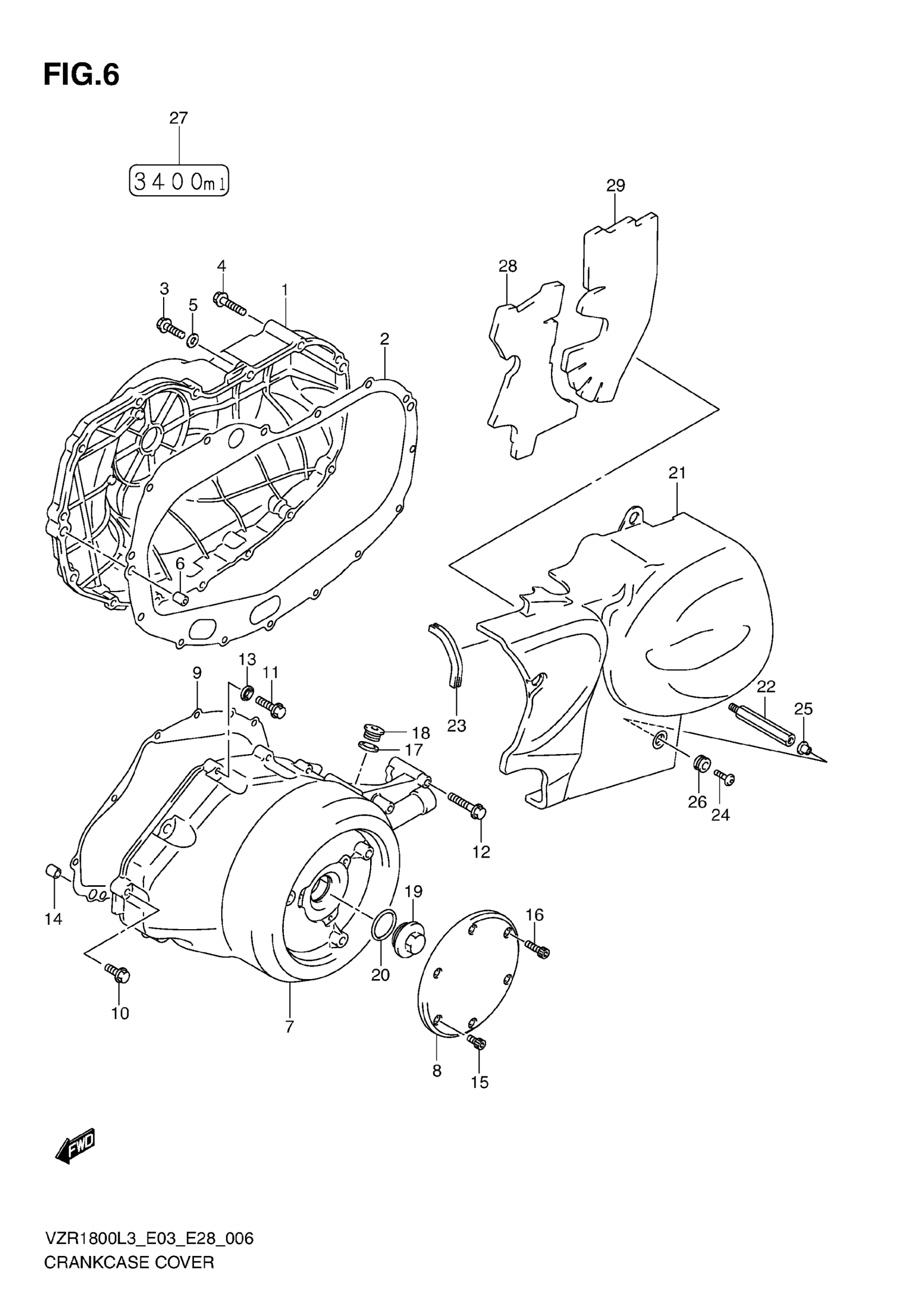

Suzuki VZR1800L3 (2013) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-48G00

Unavailable

2

GASKET

11482-48G00

$24.68

3

BOLT (6X30)

09103-06213

$2.47

4

BOLT (6X60)

09103-06261

$3.16

5

GASKET (5.8X13X1.2)

09168-06023

$2.35

6

PIN

04211-09189

$1.65

7

COVER, MAGNETO

11351-48G00

$1,384.68

8

CAP

11352-48G00

$195.10

9

GASKET

11483-48G00

$18.50

10

BOLT (6X30)

09103-06213

$2.47

11

BOLT (6X50)

09103-06238

$2.66

12

BOLT (6X70)

09103-06225

$3.16

13

GASKET (5.8X13X1.2)

09168-06023

$2.35

14

PIN

04211-09149

$1.65

15

BOLT (6X10) This part replaces 09106-06068.

09106-06076

$3.29

16

BOLT (6X20)

09106-06123

$2.42

17

GASKET (16X22X2)

09168-16002

$1.91

18

PLUG

09248-16012

$4.64

19

CAP

09259-30005

$9.73

20

O RING (D:3.1,ID:26.4)

09280-26006

$2.76

21

COVER, SECONDARY DRIVE

11361-48G20

$843.10

22

BOLT

11372-48G00

$15.75

23

SCREW (6X20)

09139-06028

$3.70

24

WASHER

09169-06062

$2.50

25

CUSHION

09320-09501

$2.03

26

NOTE, ENGINE OIL

68322-48G00

Unavailable

27

DAMPER,MAGNETO COVER CAP This part replaces 11353-48G00.

11353-48G01

$23.95

28

DAMPER, SEC DRIVE COVER

11363-48G20

$20.13

29

DAMPER, SEC DRIVE COVER

11364-48G00

$35.03
