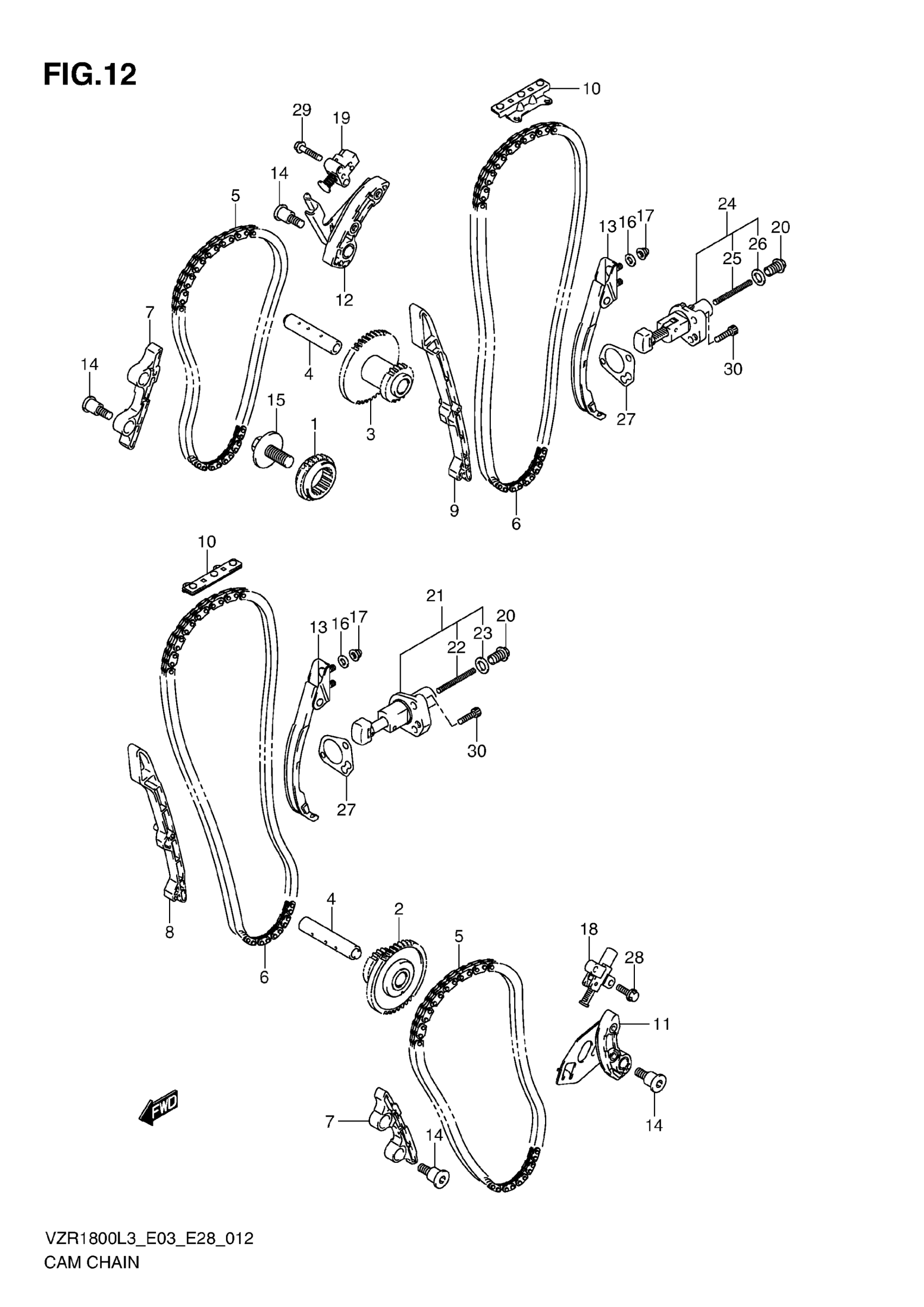

Suzuki VZR1800L3 (2013) CAM CHAIN Diagram

#

Description
Price

1

SPROCKET, CAM CHAIN DRIVE RH

12731-48G00

Unavailable

2

SPROCKET, CAM CHAIN IDLE FR

12751-48G00

Unavailable

3

SPROCKET, CAM CHAIN IDLE RR

12752-48G00

Unavailable

4

SHAFT, IDLER

12755-48G00

Unavailable

5

CHAIN, CAMSHAFT DRIVE NO.1

12761-48G00

$126.00

6

CHAIN, CAMSHAFT DRIVE NO.2

12762-48G00

$185.75

7

GUIDE, CAM CHAIN NO.1

12771-48G00

$23.07

8

GUIDE, CAM CHAIN NO.2 FR

12772-48G00

$35.10

9

GUIDE, CAM CHAIN NO.2 RR

12774-48G00

$35.10

10

GUIDE, CAM CHAIN NO.3

12773-48G00

$38.95

11

TENSIONER, CAM CHAIN NO.1 FR

12811-48G00

Unavailable

12

TENSIONER, CAM CHAIN NO.1 RR

12813-48G00

$81.72

13

TENSIONER,CAM CHAIN NO.2 This part replaces 12814-48G00.

12814-48G01

$70.17

14

BOLT

12812-31G00

$4.58

15

BOLT (12X28) | RH

09103-12013

$8.83

16

GASKET (5.8X13X1.2)

09168-06023

$2.35

17

NUT

08313-20067

$2.42

18

ADJUSTER, TENSIONER NO.1 FR

12831-48G00

Unavailable

19

ADJUSTER, TENSIONER NO.1 RR

12832-48G00

Unavailable

20

PLUG

12833-17G00

$7.87

21

ADJUSTER, TENSIONER NO.2 FR

12834-48G00

$186.82

22

SPRING

12831-35F00

$6.87

23

GASKET

12837-24F10

$4.78

24

ADJUSTER, TENSIONER NO.2 RR

12835-48G00

Unavailable

25

SPRING

12831-35F00

$6.87

26

GASKET

12837-24F10

$4.78

27

GASKET

12837-27G00

$4.72

28

BOLT

01550-0620A

$1.97

29

BOLT

01550-0630A

$2.32

30

BOLT (6X25)

07130-0625A

$2.62
