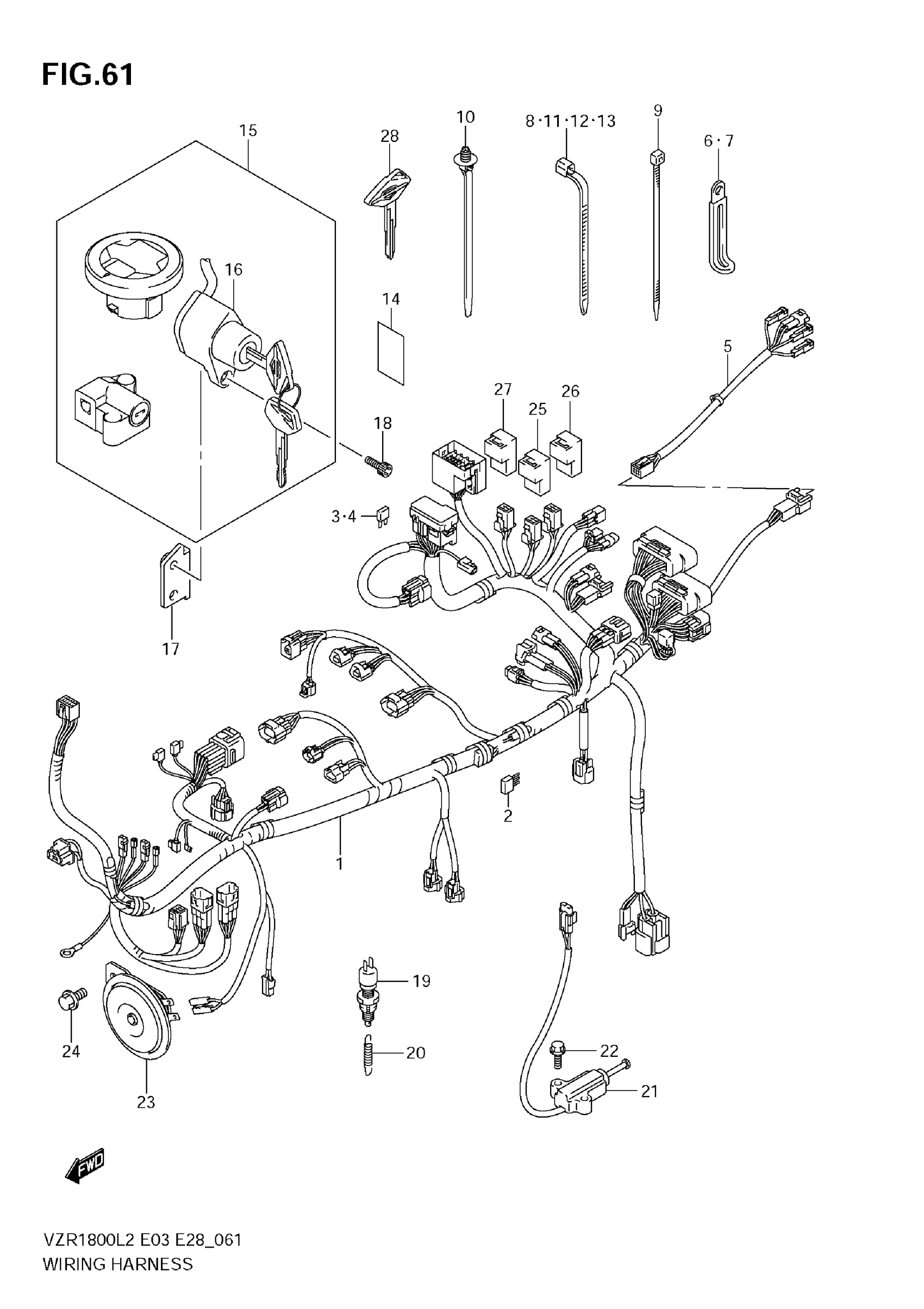

Suzuki VZR1800L2 (2012) WIRING HARNESS (VZR1800 L2 E28) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-48GB1

$1,039.71

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

FUSE (10A)

09481-10501

$2.06

4

FUSE (15A)

09481-15501

$2.02

5

WIRE,RR COMB This part replaces 36858-48G00.

36858-48G01

$72.33

6

CLAMP (L:45)

09404-06429

$1.83

7

CLAMP (L:45)

09404-06429

$1.83

8

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP (L:145)

09407-14407

$3.57

10

CLAMP (L:154)

09407-17403

$4.91

11

CLAMP (L:165)

09407-18402

$2.19

12

CLAMP (L:190)

09407-19401

$3.05

13

CLAMP (L:235)

09407-25401

$4.66

14

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

15

LOCK SET This part replaces 37000-48890.

37000-48893

$287.59

16

.LOCK ASSY,STEERING This part replaces 37110-48G50.

37110-48G51

$109.55

17

BRACKET, IGNITION SWITCH

37119-48G00

$8.93

18

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

19

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

20

SPRING

09443-06077

$5.60

21

SWITCH ASSY,SIDE STAND This part replaces 37840-25D00.

37840-25D02

$60.37

22

SCREW

01550-0625A

$1.97

23

HORN ASSY

38500-48G01

$87.70

24

BOLT (8X12)

01550-0812A

$2.32

25

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

26

RELAY ASSY, FAN MOTOR

38740-24X50

$45.20

27

RELAY ASSY, HEADLAMP

38740-24A00

$63.30

28

KEY, BLANK | OPT

37146-10F00

$50.63
