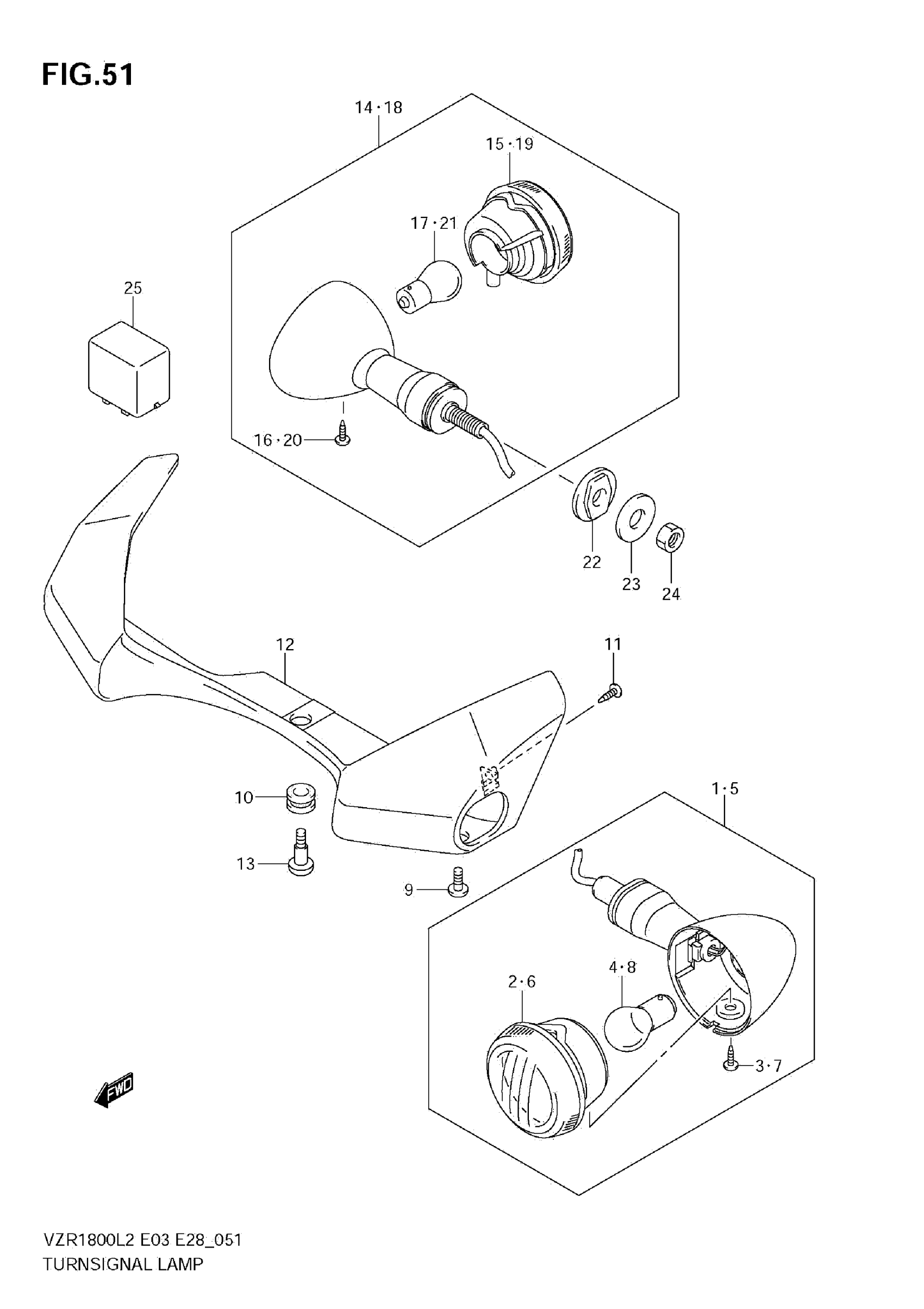

Suzuki VZR1800L2 (2012) TURNSIGNAL LAMP (VZR1800Z L2 E03) Diagram

#

Description
Price

1

LAMP ASSY, FRNT TURNSIGNAL RH

35601-38AH0

$181.72

2

LENS | FOR CLEAR

35610-48EB0

$50.30

3

SCREW (4X10)

35623-38AA0

$5.11

4

BULB (12V23/8W) | FOR AMBER

09471-12224

$40.17

5

LAMP ASSY, FRNT TURNSIGNAL LH

35602-38AH0

$180.85

6

LENS | FOR CLEAR

35630-48EB0

$52.23

7

SCREW (4X10)

35623-38AA0

$5.11

8

BULB (12V23/8W) | FOR AMBER

09471-12224

$40.17

9

SCREW

02142-0612A

$1.49

10

CUSHION

09320-09016

$1.97

11

SCREW

03541-0510A

$1.49

12

STAY, FR TURNSIGNAL

35641-48G00

$190.33

13

SCREW (6X16)

09139-06146

$2.95

14

LAMP ASSY, REAR TURNSIGNAL RH

35603-48ED0

$154.02

15

LENS | FOR CLEAR

35630-38AF0

$50.30

16

SCREW (4X10)

35623-38AA0

$5.11

17

BULB (12V21W) | FOR AMBER

09471-12186

$12.66

18

LAMP ASSY,RR TURNSIGNAL LH This part replaces 35604-38AF0.

35604-38AF1

$111.38

19

LENS | FOR CLEAR

35610-38AF0

$50.30

20

SCREW (4X10)

35623-38AA0

$5.11

21

BULB (12V21W) | FOR AMBER

09471-12186

$12.66

22

SPACER, REAR TURNSIGNAL LAMP

35695-17C00

$4.03

23

WASHER (10.5X30X2.3)

09160-10501

$2.33

24

NUT

08310-0010A

$1.84

25

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
