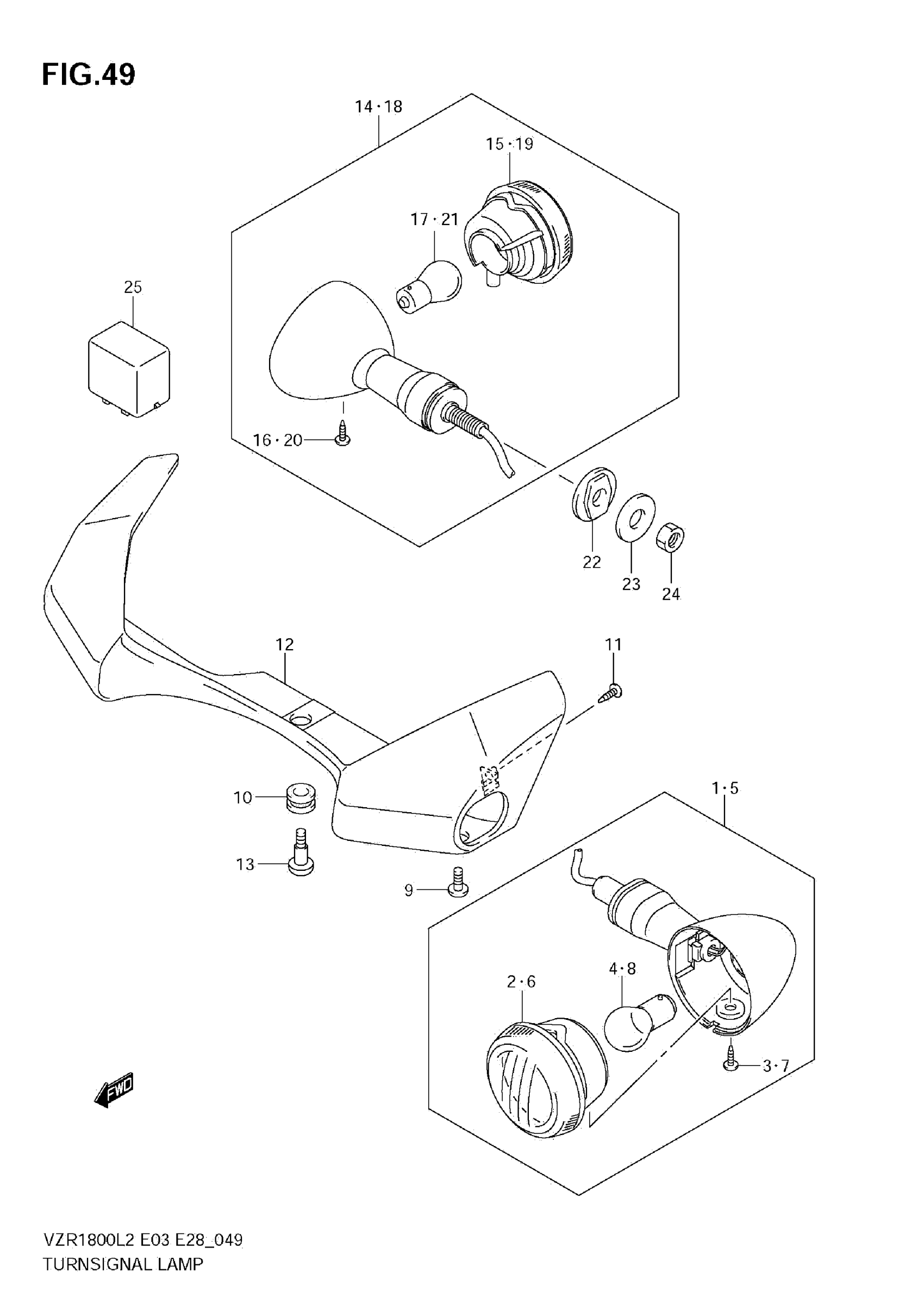

Suzuki VZR1800L2 (2012) TURNSIGNAL LAMP (VZR1800 L2 E28) Diagram

#

Description
Price

1

LAMP ASSY, FRNT TURNSIGNAL RH

35601-38AF0

$151.52

2

LENS | FOR AMBER

35610-38AA0

$28.79

3

SCREW (4X10)

35623-38AA0

$4.67

4

BULB (12V,21/5W) | FOR CLEAR This part replaces 09471-12083.

09471-12128

$6.08

5

LAMP ASSY, FRNT TURNSIGNAL LH

35602-38AF0

$107.97

6

LENS | FOR AMBER

35630-38AA0

$29.21

7

SCREW (4X10)

35623-38AA0

$4.67

8

BULB (12V,21/5W) | FOR CLEAR This part replaces 09471-12083.

09471-12128

$6.08

9

SCREW

02142-0612A

$1.37

10

CUSHION

09320-09016

$1.97

11

SCREW

03541-0510A

$1.43

12

STAY, FR TURNSIGNAL

35641-48G00

$211.80

13

SCREW (6X16)

09139-06146

$2.80

14

LAMP ASSY,RR TURNSIGNAL RH This part replaces 35603-48EC0.

35603-48EC1

$104.10

15

LENS | FOR AMBER

35630-38AE1

$29.21

16

SCREW (4X10)

35623-38AA0

$4.67

17

BULB (12V,21W) | FOR CLEAR

09471-12045

$2.95

18

LAMP ASSY,RR TURNSIGNAL LH This part replaces 35604-38AE0.

35604-38AE1

$113.63

19

LENS | FOR AMBER

35610-38AE1

$28.79

20

SCREW (4X10)

35623-38AA0

$4.67

21

BULB (12V,21W) | FOR CLEAR

09471-12045

$2.95

22

SPACER, REAR TURNSIGNAL LAMP

35695-17C00

$3.69

23

WASHER (10.5X30X2.3)

09160-10501

$2.33

24

NUT

08310-0010A

$1.86

25

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
